GAUI NX4 - Tail Transmission Gear Assembly; Frame Assembly

GAUI
TAI SHIH HOBBY CORPORATION
GAUI
TAI SHIH HOBBY CORPORATION

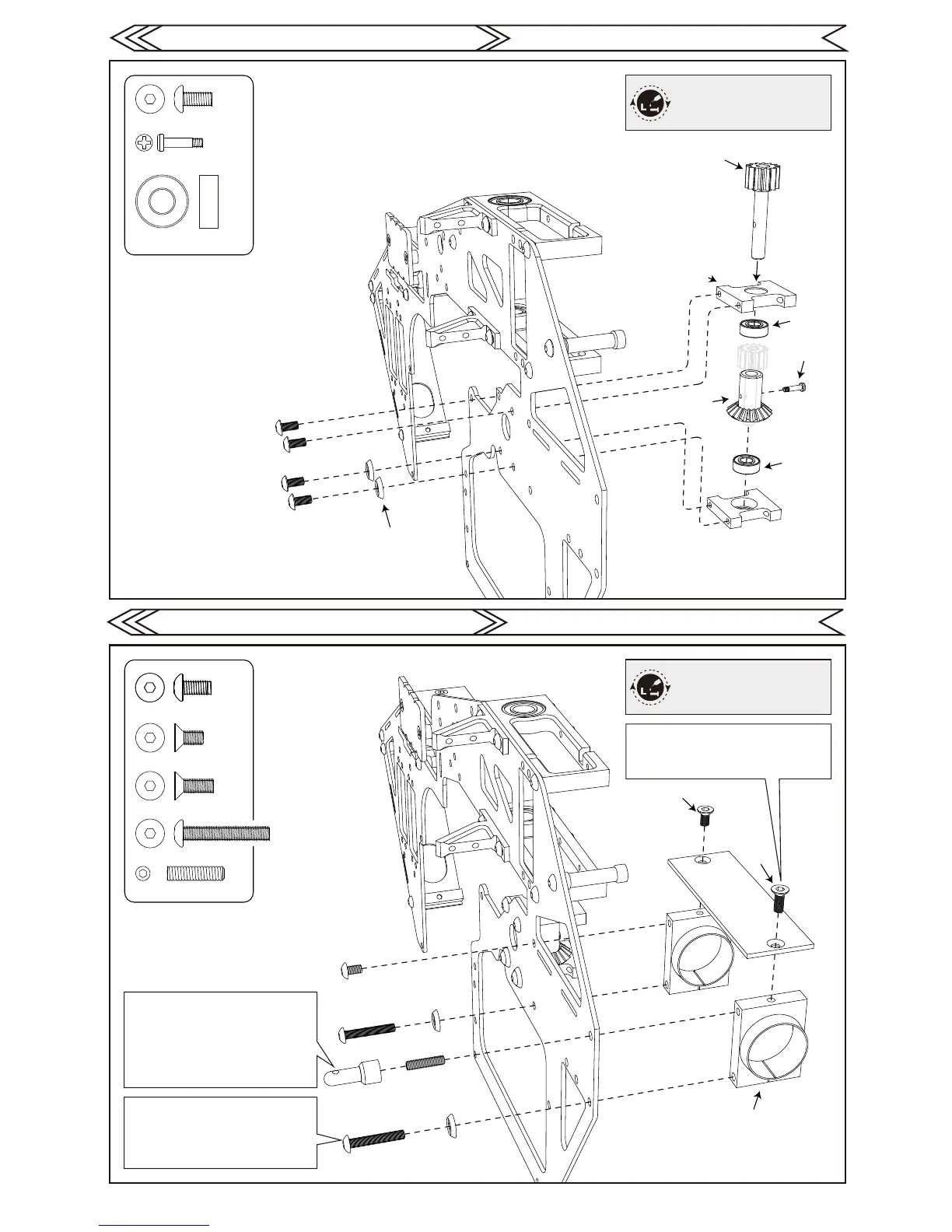

Tail transmission gear assembly
Frame assembly
׏༉୞Ꮠಣ၇
ᐡٙᆔַಣ၇
2
M3x6
M3x6
M3x6
M3x6
B5x11x4
B5x11x4
Gear Shaft (14T)
M2x8
ᖴ๜ჭб
׏ࠊᏐໆߤᓂᏐ)25U*
Tail transmission bearing mount
Countersunk Washer
׏༉୞ໆܜ৵
Boom Clamps
׏ᆔڿۢ৵
ಣ၇׏ᆔಣԚሰܺᚭᖴ๜ȂϘѠ஡׏ᆔ
ಣ၇ՎᐡٙȄ
ಣ၇)ᑼဌМ࢙*Ӓ஡N4y23ᖴ๜ᚈΤ
М࢙ϲȂӶٻңޣ৸3пίޠ༬ූඩΤ
ЍϲٯఌᆨᑼဌМ࢙Ȅ
Front transmission bevel gear
׏ࠊ༉୞Ꮠᎉ
M3x6
You must loosen this screw before
inserting and installing the tail boom.
M3x8
M3x6
M3x12
M3x18
M3x18
M3x6........................x4
M2x8........................x1
Bearing 5x11x4.......x2
M3x6........................x1
M3x6........................x1
M3x8........................x1
When assembling the canopy posts, fix
the M3x12 screw inside the post, use a
2mm hex screwdriver as a tool to tighten
the canopy posts.
M3x18......................x2
M3x12......................x1
֥αN4y29ᖴ๜ȂࡠQ/37ಣ၇׈Ԛࡤ
ᚈᆨᖴ๜Ȅ
Fix the M3x18 screw (don't tighten the
screw yet), wait until the tail set is
assembled (P.26),then tighten the screw.
ᖴ๜ְሰαЦྥᏙ
All screws on side plates should
be applied with thread lock.
ᖴ๜ְሰαЦྥᏙ
All screws on side plates should
be applied with thread lock.
