GAUI NX4 - Vertical Tail Fin; Tail Rotor Assembly

GAUI
TAI SHIH HOBBY CORPORATION
GAUI
TAI SHIH HOBBY CORPORATION

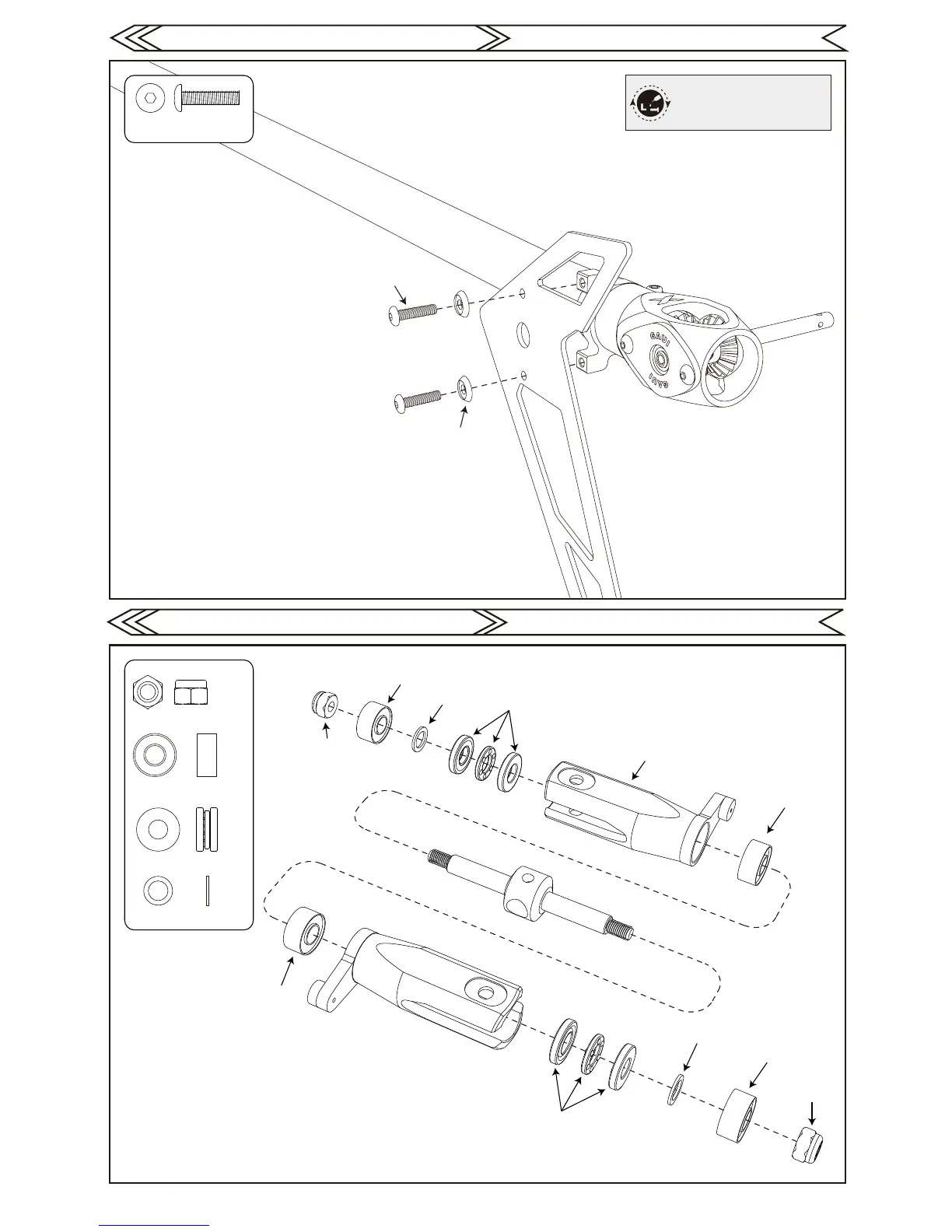

Vertical tail fin
Tail rotor assembly
࠮ޣ׏ᖏಣ၇
׏ఌᖏַᓟಣ၇
24
M3x12
M3x12
B4x9x4
W4.1x6x0.5
T4x9x4
N3x5.5L
N3x5.5L
W4.1x6x0.5
T4x9x4
Tail rotor grip
Tail hub
B4x9x4
B4x9x4
B4x9x4
M3x12.....................x2
N3x5.5L.....................x2
Bearing 4x9x4...........x4
T.Bearing 4x9x4........x2
W4.1x6x0.5...............x2
ᖴ๜ჭб
׏ఌᖏַᓟ
׏ᐘໆ
Countersunk Washer
ᖴ๜ְሰαЦྥᏙ
All screws on side plates should
be applied with thread lock.
