Expert Pro User Manual
Blade Specification A-2
About the Tool

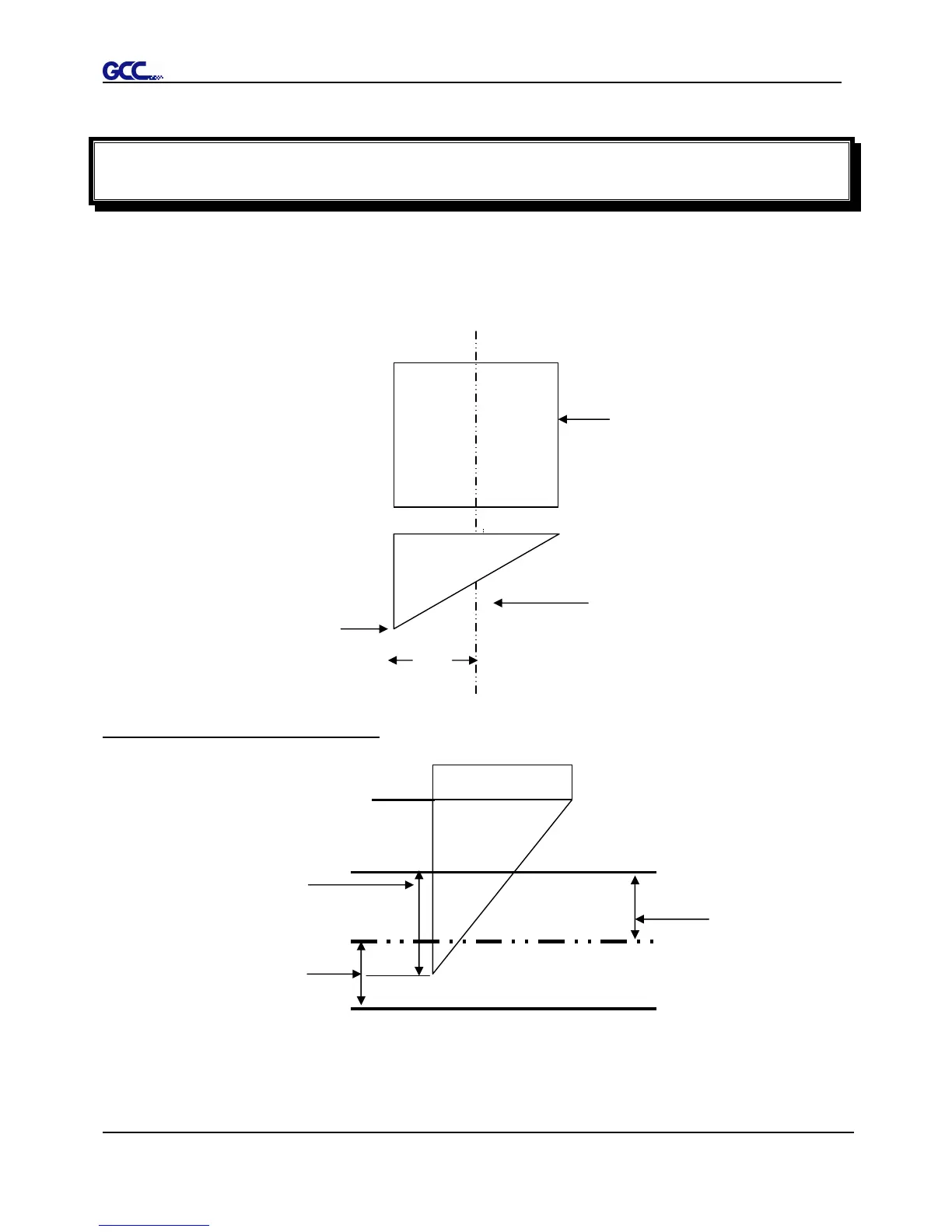

Frequently used terms related to the cutting blade and the plotting pen.
OFFSET is the distance that the blade tip is displaced from the centerline of the blade.
Protrusion Length of the Blade
Length of protrusion = t1 + t 2/ 2, but for your convenience you may just make it about
0.3mm ~ 0.5mm beyond the blade holder tip.
Central line
Blade
Blade tip
offset
Thickness of the
base paper (t 2)
Thickness of
the media (t1)
Protrusion length
of th
e blade
