5.1.4 Graphic Control Panel Function Pages
When the LaserPro C180 is powered on, the machine will perform a series of safety checks and
initializing routines. The LCD display screen will display the GCC copyright, LaserPro logo, and
machine initialization pages before going to the main work page.
Main Work Page
The main work page is the page that the LaserPro C180 will default to upon startup and will be the “home
base” for when navigating through the various functions of the control panel. This will be the page that
is displayed when you are processing your jobs. This page contains specic job information such as
the current job’s name, Speed, Power, PPI, DPI, processing / remaining times, and jobs loaded.

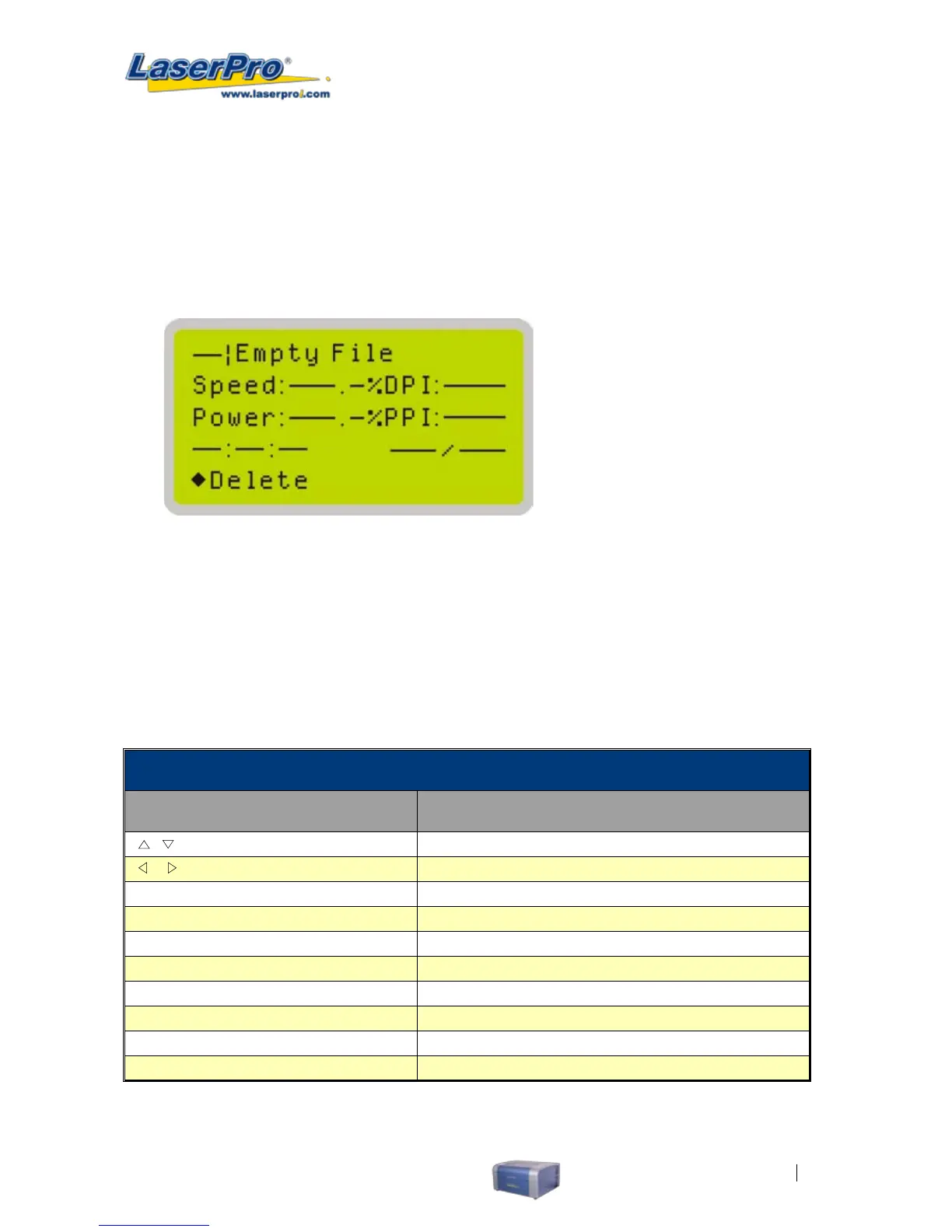

Main Work Page
Relevant Buttons Function
/
Directional Scroll through previous and next jobs
/
Directional Enables move Carriage page
Enter Selects the indicated option
Menu
Go to Menu Page
A/F
Initiate the auto focus function
A/F ▲ / ▼ Directional
Manually adjust the height of the work table (Z-axis)
Start / Pause Start / Pause/ Restart the current job
Stop Cancels the current job
Back Go to previous screen
Light Turn Light On/Off
To Next Page
