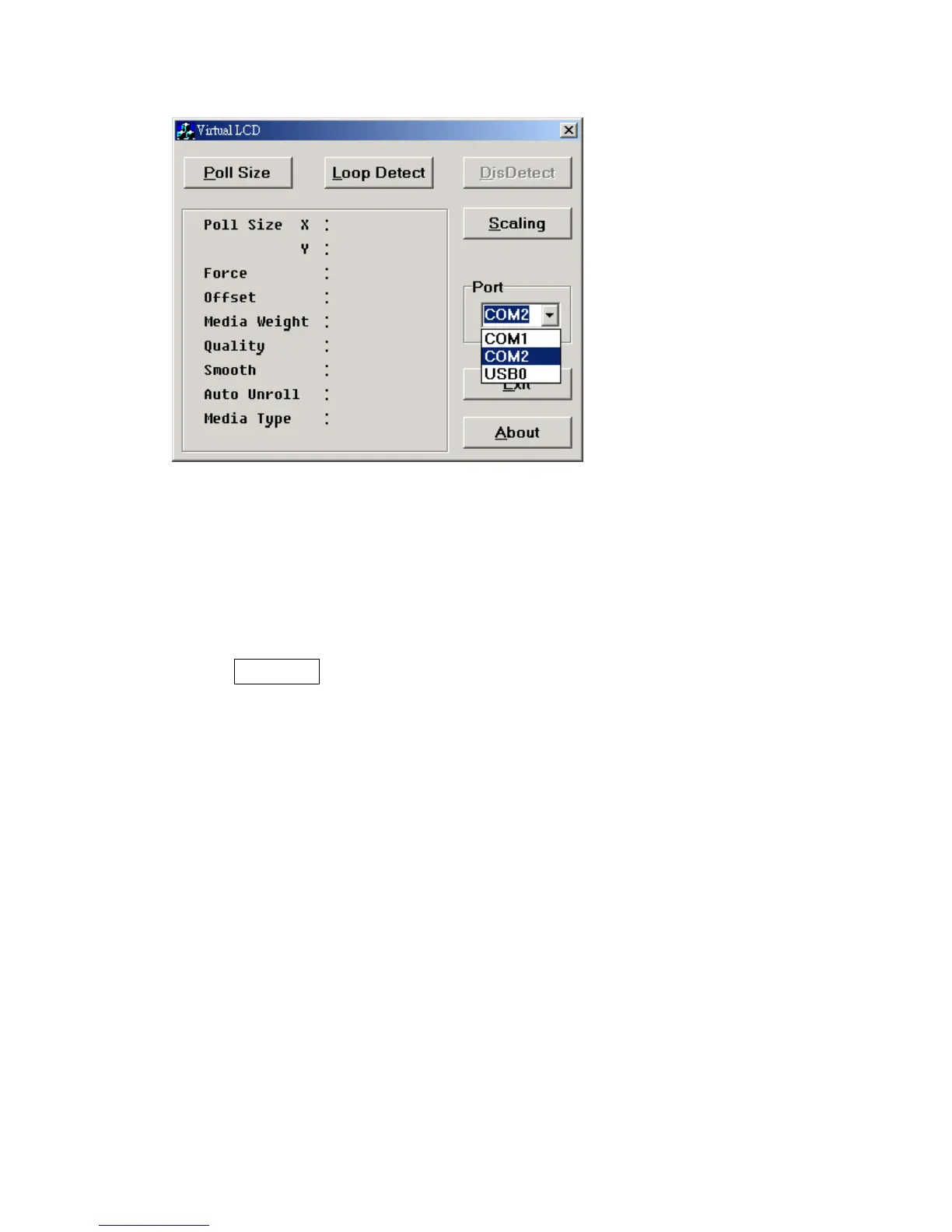

Figure 4.3.1
There are four functions available in VLCD: Poll Size, Loop Detect/
DisDetect, Scaling, and About.
A. Poll Size
Clicking the Poll Size will reveal the X/Y values. In this case, the
maximum cutting length is 25000mm, and the distance between the
farthest two pinch rollers is 277.70mm (Figure 4.3.2).
Puma II User’s Manual 4-2
