Puma II User’s Guide 2-6
2.4 Blade Installation
! CAUTION
Do not touch the tip of the blade with your fingers.
! Notice
The blade will affect the cutting quality significantly. If any of the following occurs,
which means the blade has reached the end of its life. Please replace with a new
blade.
1. The tip of blade is broken.
2. Cutting traces are not as good as they were.
3. Uncut area remains the same even the blade force has been raised significantly.

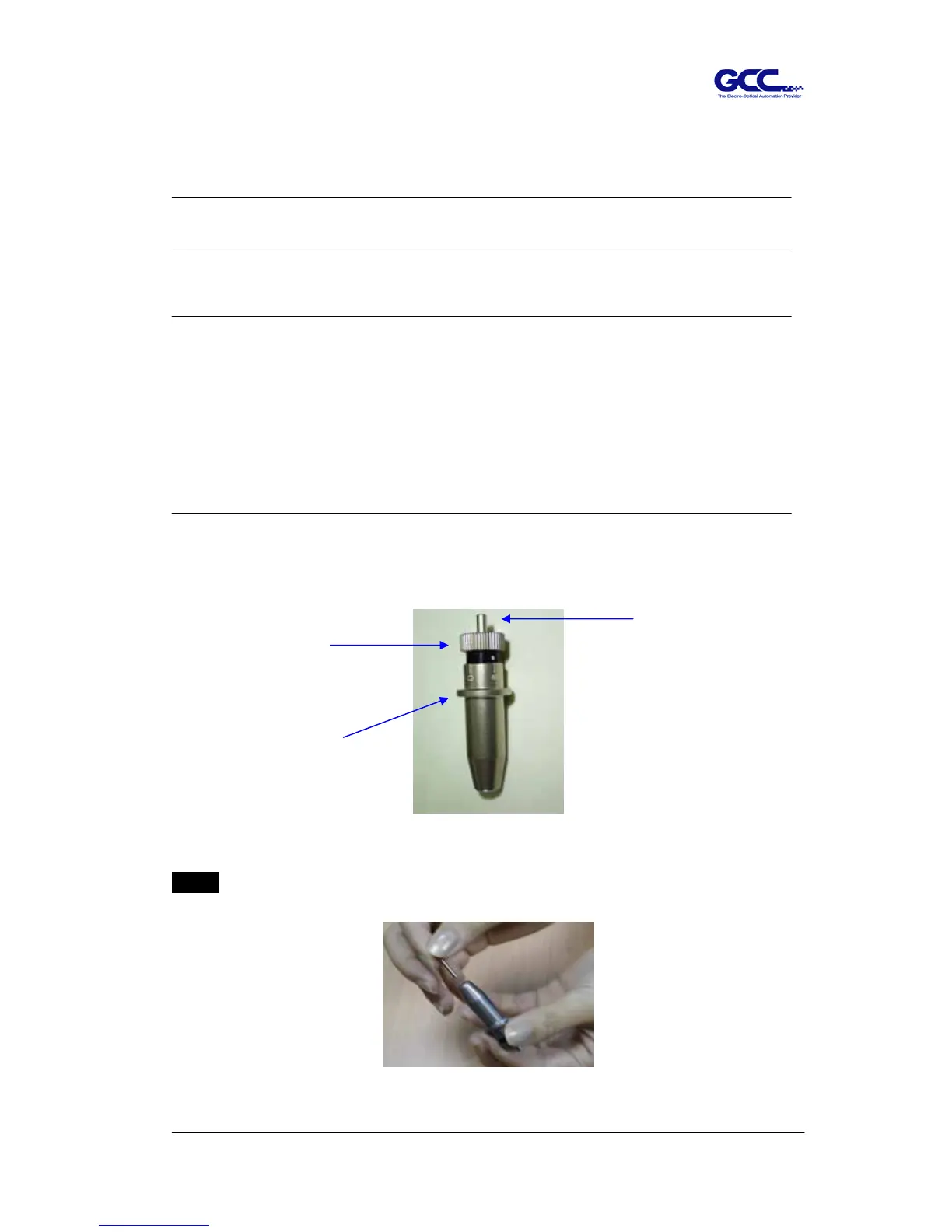

Figure 2-7 is the illustrator of the blade holder. Insert a blade into the bottom of the blade
holder and remove the blade by pushing the pin. Be sure to keep your fingers away from
the blade tip.
Figure 2-7
Step1
Install blade (Figure 2-8).
Figure 2-8
Pin
