Puma II User’s Guide 2-7
Step 2

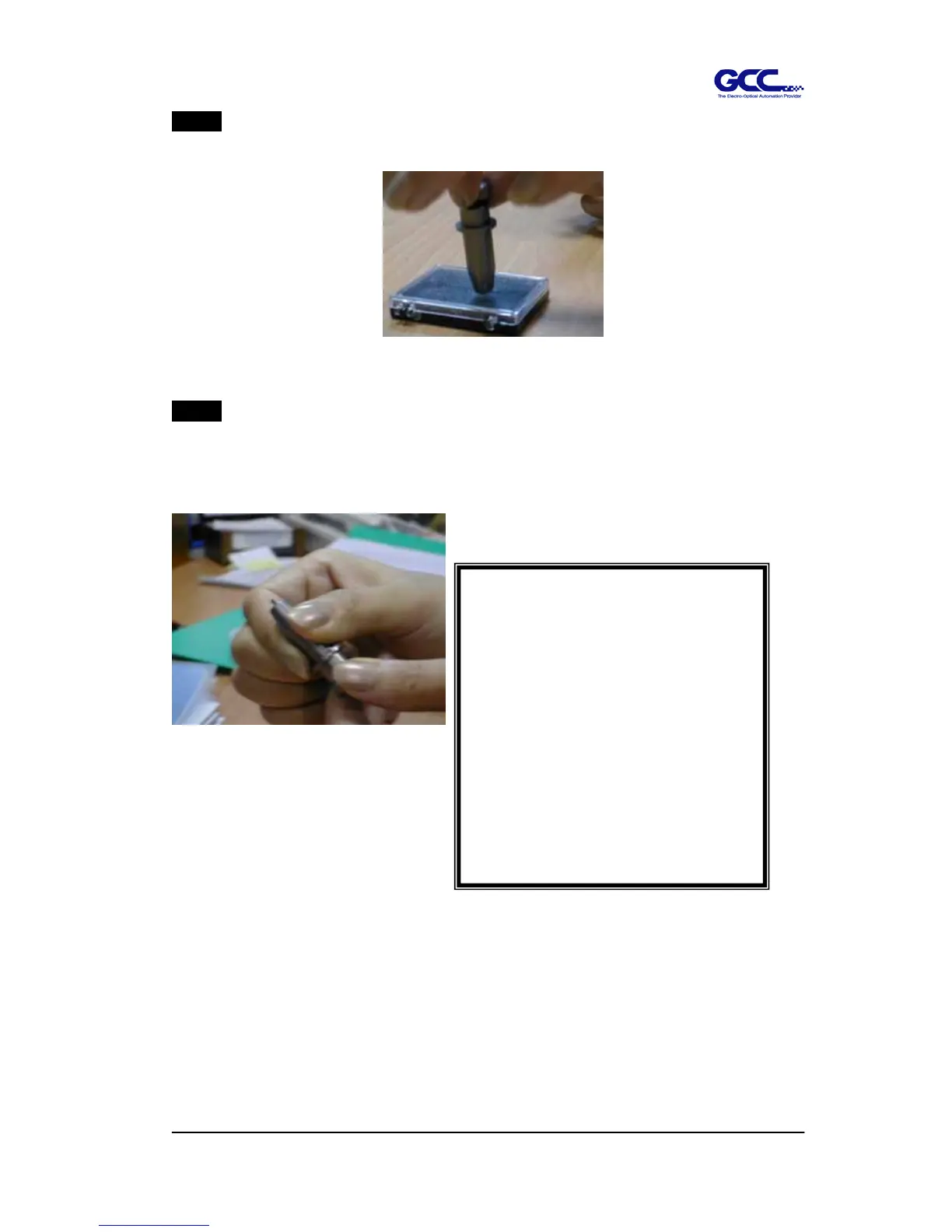

Push the blade to the bottom of the blade holder. (Figure 2-9).
Figure 2-9
Step 3
Adjust the blade tip to suitable length by screwing “Blade tip adjustment screw”
clockwise or count-clockwise (Figure 2-10).
Figure 2-10
Tips:
“The proper length” means the
blade’s length is about 0.1mm
more than film’s thickness. For
example, if the thickness of film is
0.5mm, then blade’s length is
properly adjusted to 0.6mm and it
can completely cut through the
film layer but will not cut though
the paper backing (See Figure
2-10).
