Step 4
Insert the blade holder into tool carriage. Please note the outward ring of the holder must
put into the grooves of carriage firmly (see Figure 2-11) and lock the grip
Step 5
Use the reverse steps to remove the blade holder.
Step 6
Press the push - pin to remove the blade from the blade holder when the blade needs to
be replaced. Please refer to Figure 2-9 for reference.

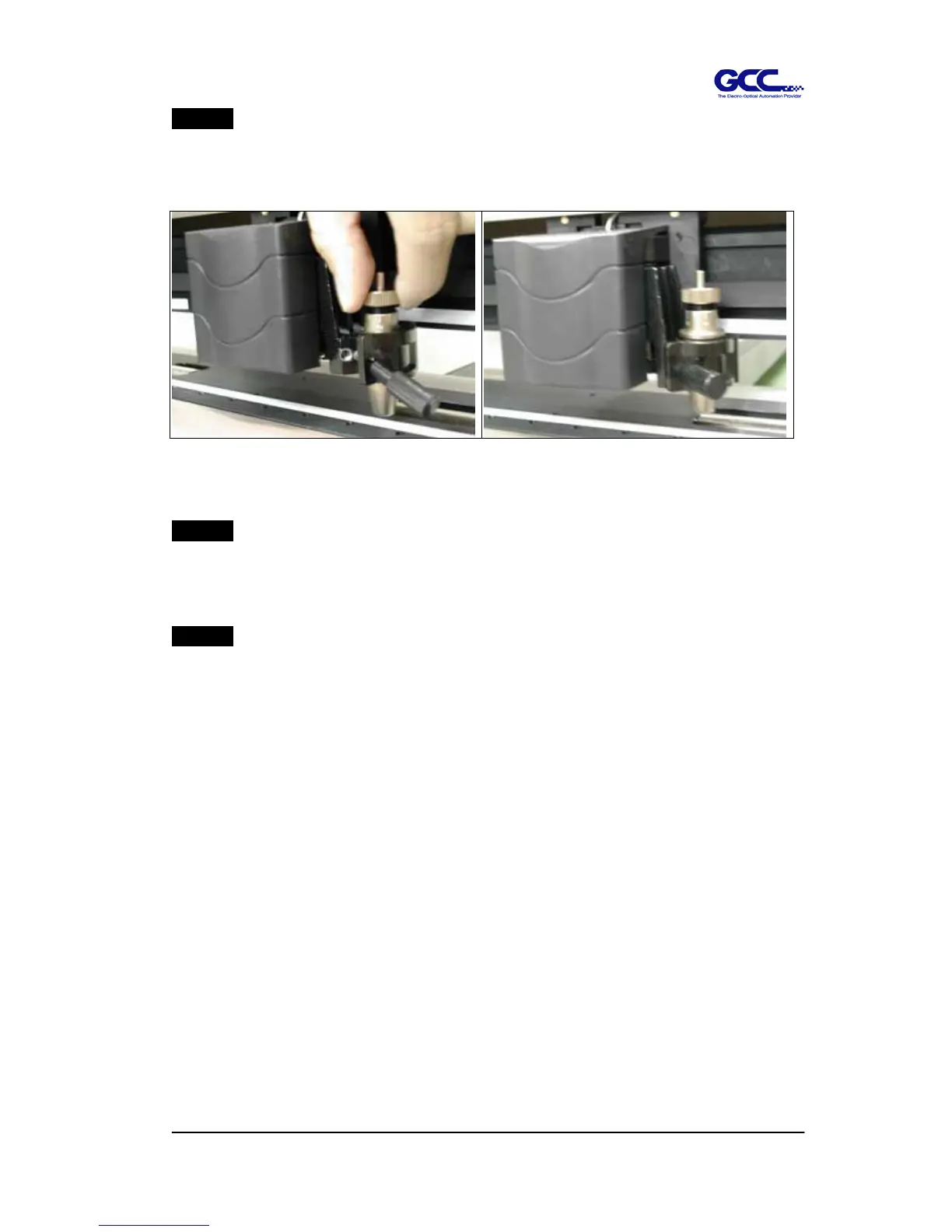

Figure 2-11 Figure 2-12
