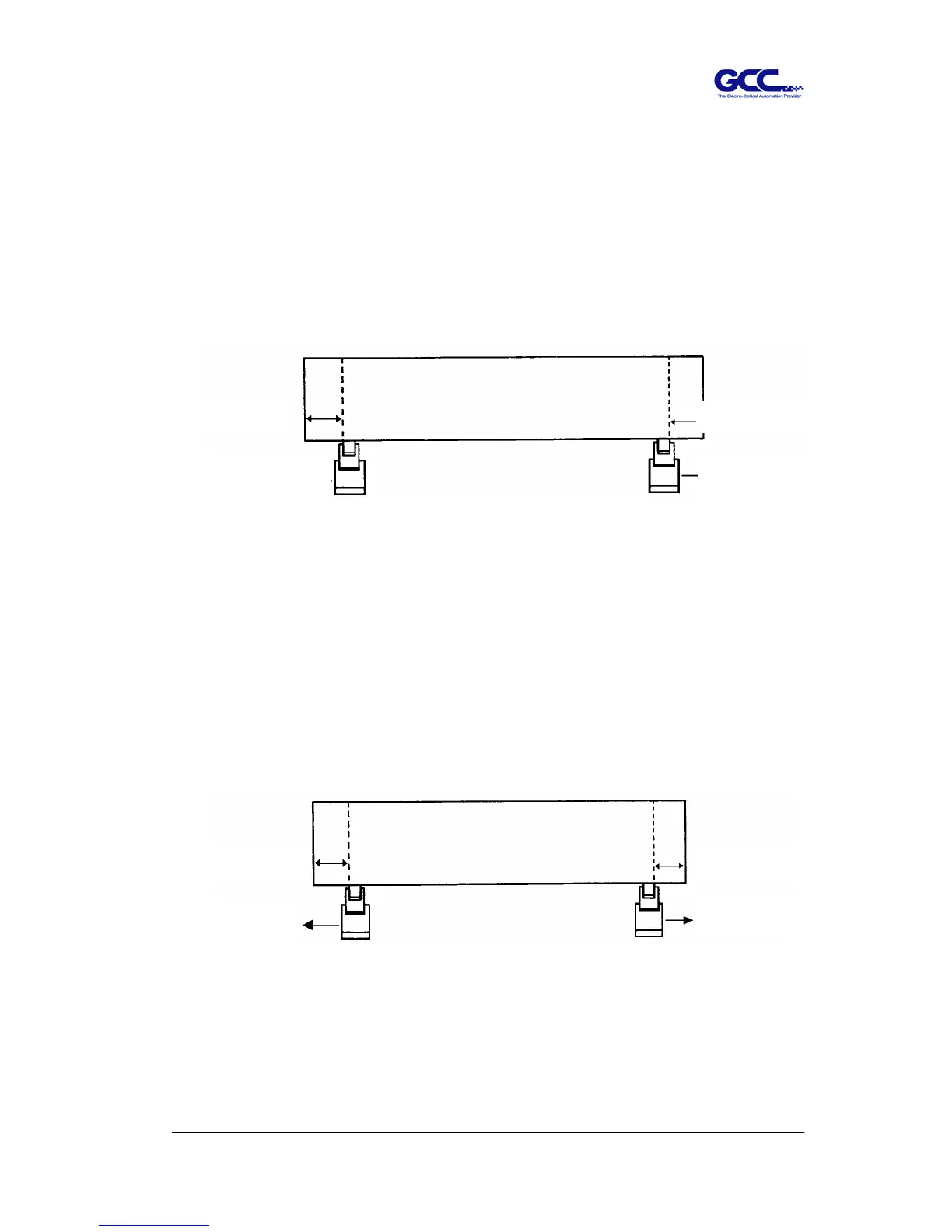

2.6 Tracking Performance
In order to achieve the best tracking performance for a long plot, we recommend some
significant media loading procedures described as follows:
1. If the media length is less than 4 m, leave the margin of 0.5mm~15mm in the left
and right edges of the media (see Figure 2-23).
2. If the media length is greater than 4m, leave at least 25mm margin on the left and
right edges of the media (see Figure 2-24).
Pinch roller
Pinch roller
0.5mm-15mm
0.5mm-15mm
Pinch roller
P
Pinch rolle
r
A
t least 25mm
>25mm
Figure 2-23
Figure 2-24
