GDC SA-2100A - Cut the Cable Holder (Plastic)

3. REMOVING THE EXISTING COMPONENTS OF THE SX-2001/ SA-2100
HFR UPGRADE MANUAL
FOR SX-2001/SA-2100(A/T) TO SX-000(A/T)R
DIGITAL CINEMA SERVER WITH
INTEGRATED MEDIA BLOCK
10
May 18, 2016
3.2 Cut the Cable Holder (plastic)
1. Refer to the circled area in Figure 3, kindly cut the cable holder (plastic tie). To access
the power pin connector for the DCI card’s fan.

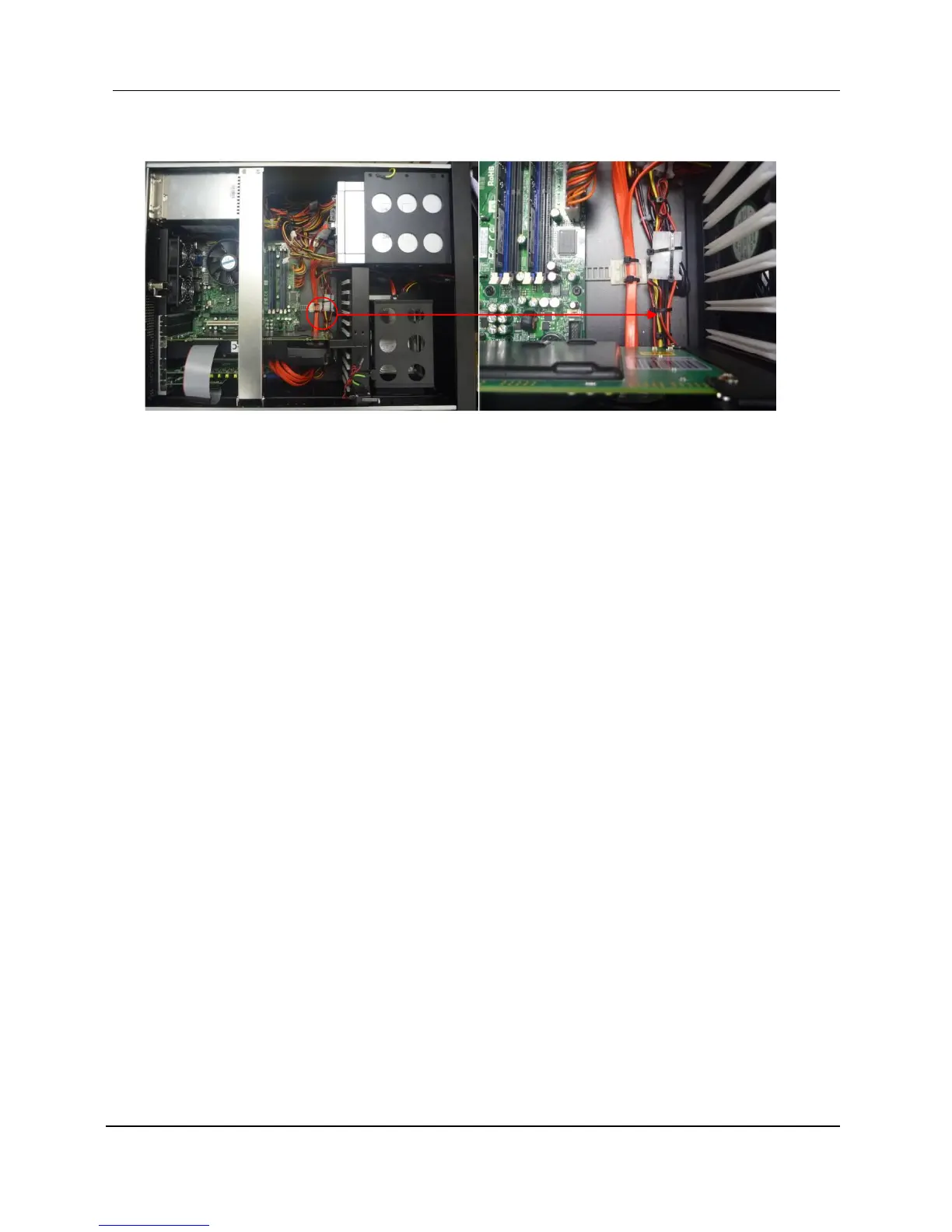

Figure 3 Cut the cable holder (plastic)
