15. CAUTION
May 18, 2016
39
HFR UPGRADE MANUAL
FOR SX-2001/SA-2100(A/T) TO SX-000(A/T)R
DIGITAL CINEMA SERVER WITH
INTEGRATED MEDIA BLOCK
15. CAUTION
Please use Server SMSShutdownShutdown to turn off the server and IMB.
After the server and IMB are turned off, the projector may indicate communication lost to the
IMB; the projector must be rebooted for next playback.
16. APPENDIX

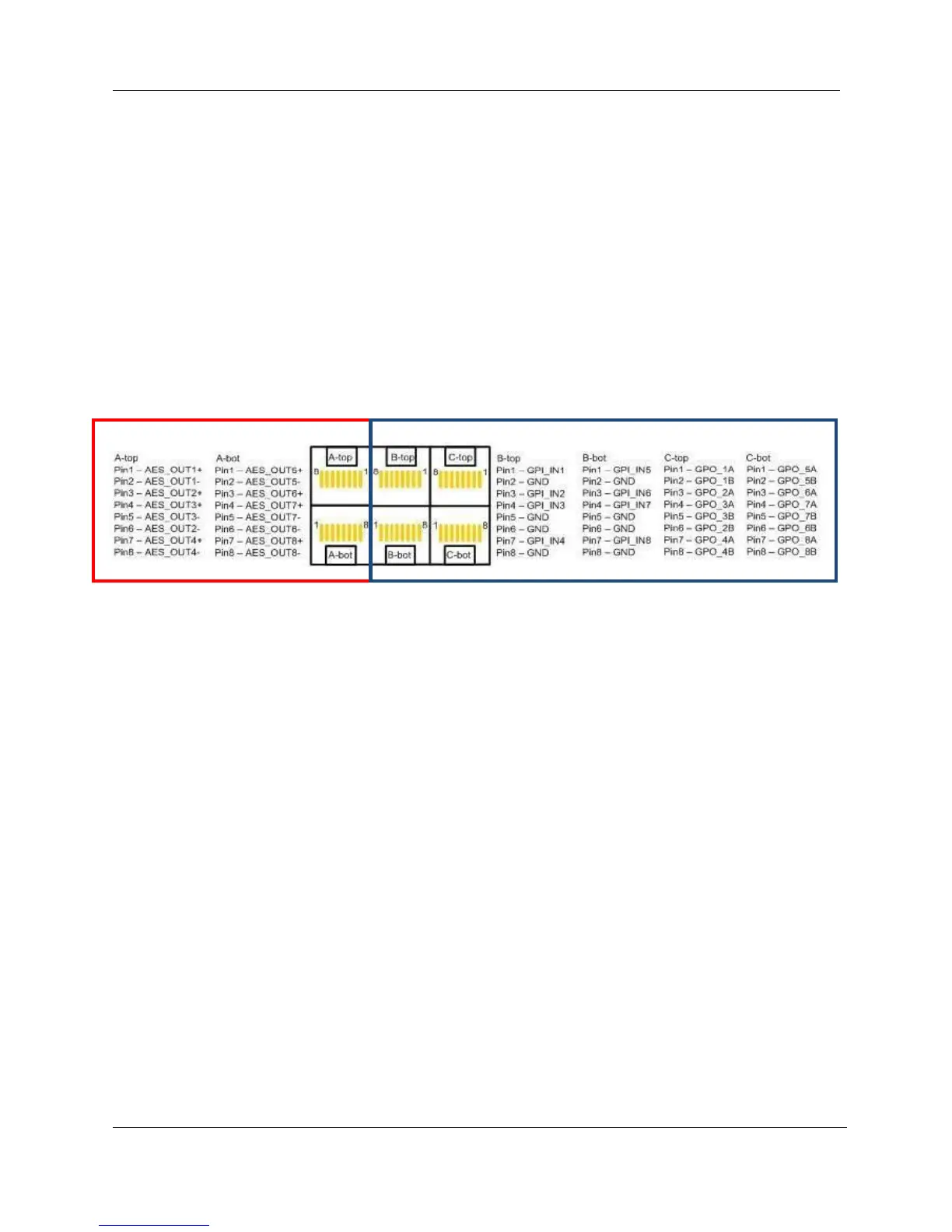

16.1 IMB Audio and GPIO Port Pin Layout
AES Audio GPIO
Figure 43 IMB audio and GPIO port pin layout
