GDC SA-2100A - Install the Back Plate for SX-2000 Model Configuration

3. REMOVING THE EXISTING COMPONENTS OF THE SX-2001/ SA-2100
HFR UPGRADE MANUAL
FOR SX-2001/SA-2100(A/T) TO SX-000(A/T)R
DIGITAL CINEMA SERVER WITH
INTEGRATED MEDIA BLOCK
14
May 18, 2016
3.8 Install the Back Plate for SX-2000 Model Configuration

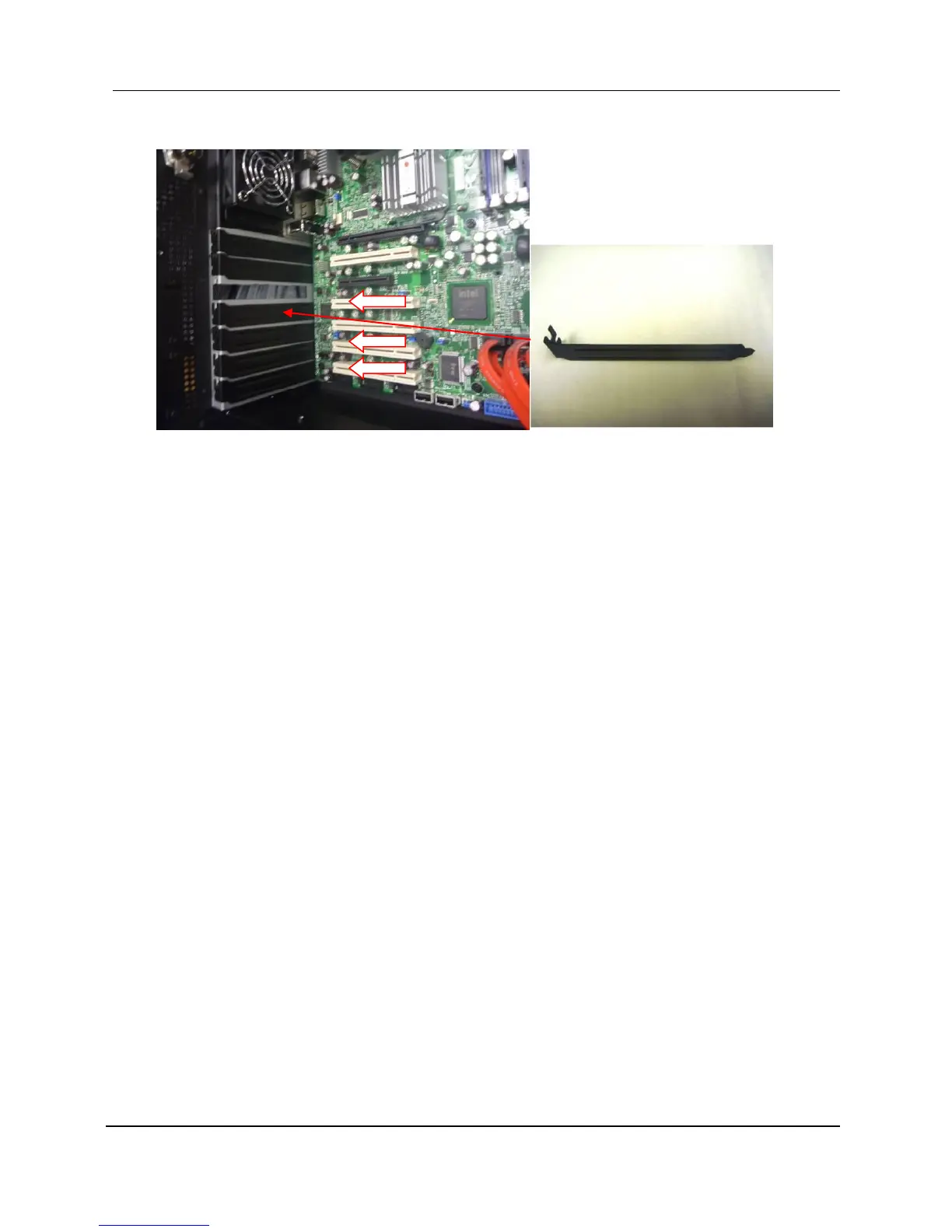

Figure 10 Install the back plate
1. Install the back plate for the indicated positions, for covering the Back panel of casing
since the PCI slots are not in use.
