3. REMOVING THE EXISTING COMPONENTS OF THE SX-2001/ SA-2100
May 18, 2016
13
HFR UPGRADE MANUAL
FOR SX-2001/SA-2100(A/T) TO SX-000(A/T)R
DIGITAL CINEMA SERVER WITH
INTEGRATED MEDIA BLOCK
3.6 Un-install the Sound Card
1. Same procedure, remove the sound card by un-securing the screw as indicated in Figure 8.
3.7 Remove the Vented Back Plate
1. Remove the vented back plate by un-securing the screw.

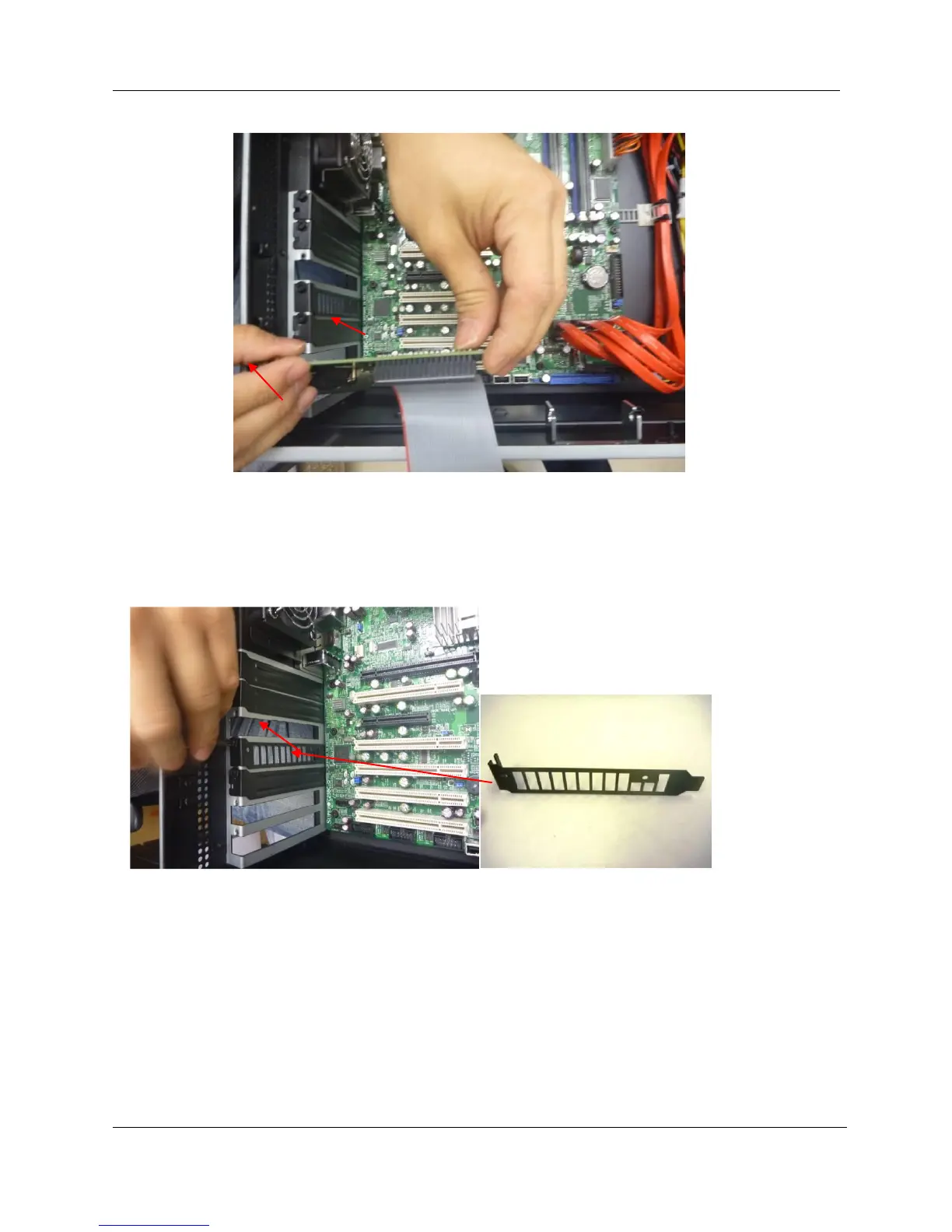

Figure 8 Un-install the sound card
Figure 9 Remove the vented back plate
