9. SERIES 2 PROJECTOR SETUP
HFR UPGRADE MANUAL
FOR SX-2001/SA-2100(A/T) TO SX-000(A/T)R
DIGITAL CINEMA SERVER WITH
INTEGRATED MEDIA BLOCK
28
May 18, 2016
3

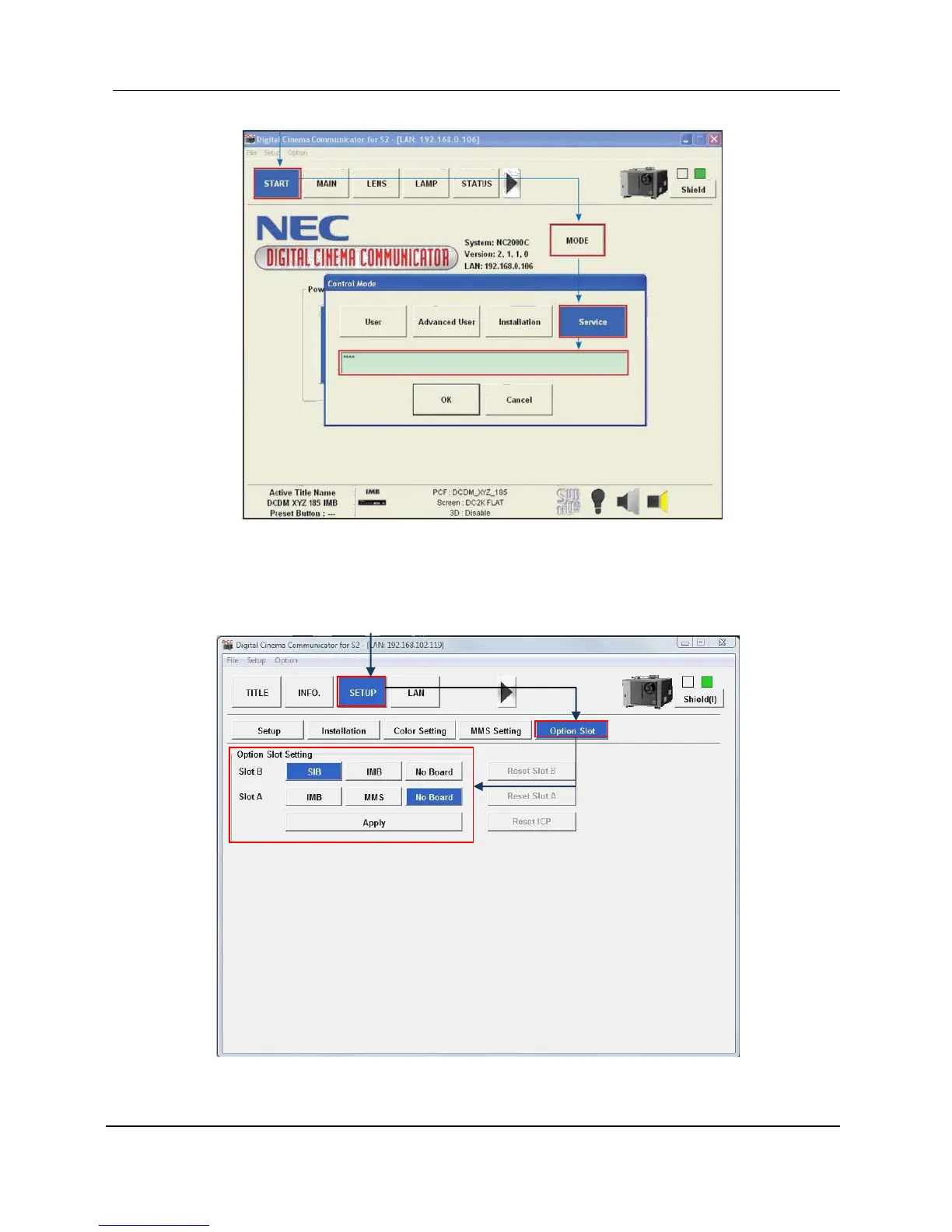

Figure 29 Service mode on NEC Digital Cinema Communicator
4. Select [Setup] [Option Slot] on the Digital Cinema Communicator and select IMB for Slot A in
Option Slot Setting. (See Figure 30)
4
Figure 30 Option slot settings on NEC Digital Cinema Communicator
