3.5 Mixer valve and mixer (optional)
Introduction
This section describes the mixer valve and the dynamic mixer that control the buffer
mixing from the two system pumps.
Illustration

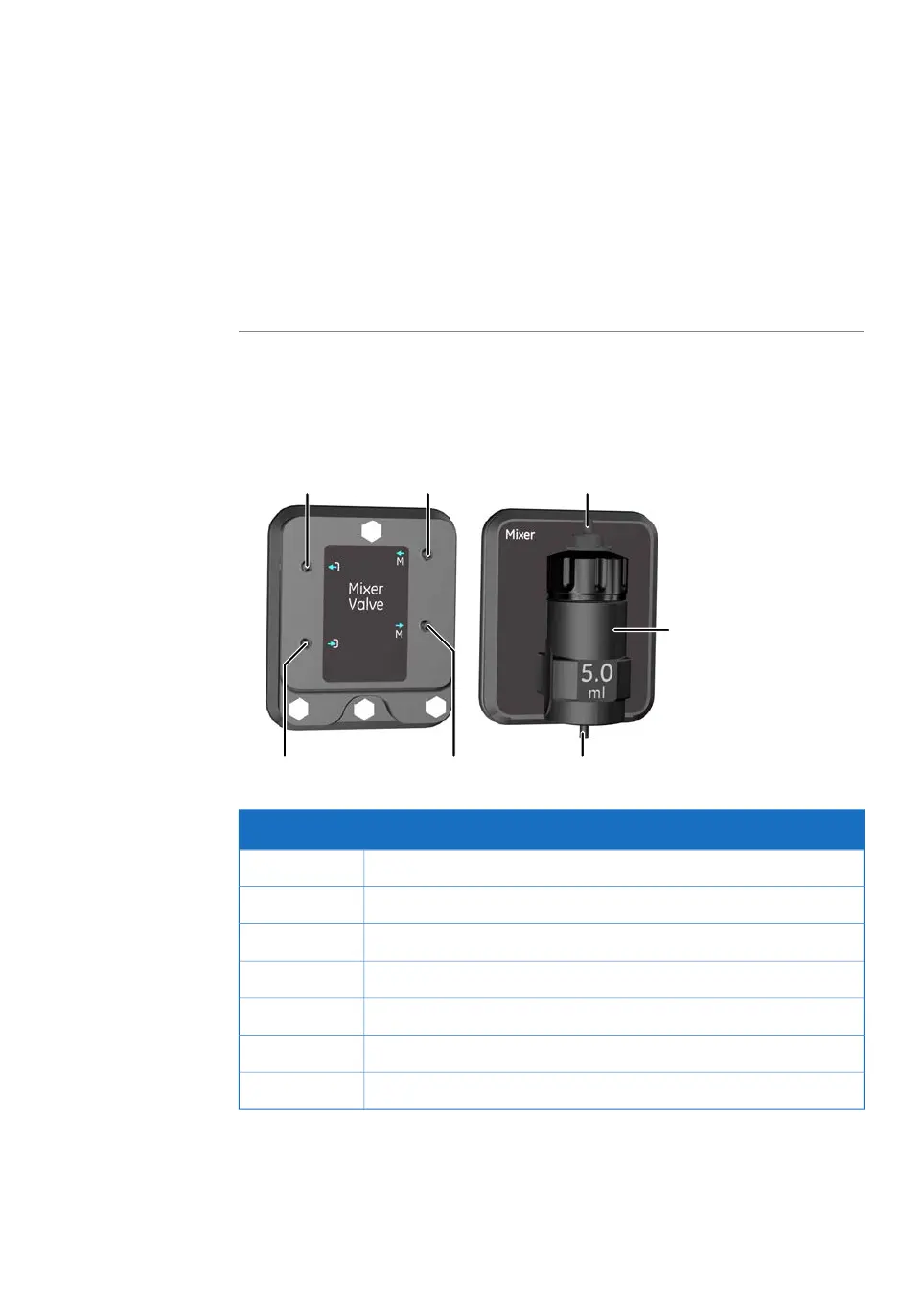

The illustration below shows the front of the mixer valve module (left) and the front of
the mixer module (right).
DescriptionPart
Inlet, from the previous module1
Outlet, to the mixer2
Mixer inlet3
Mixer chamber, 5 mL4
Mixer outlet5
Inlet, from the mixer6
Outlet, to the next module7
ÄKTA pilot 600 User Manual 29274559 AA 39
3 Description of modules
3.5 Mixer valve and mixer (optional)
