3.12 Outlet valves
Introduction
This section describes the outlet valves, used for outlet fractionation and waste handling.
It is optional to have more than one outlet valve.
Illustration

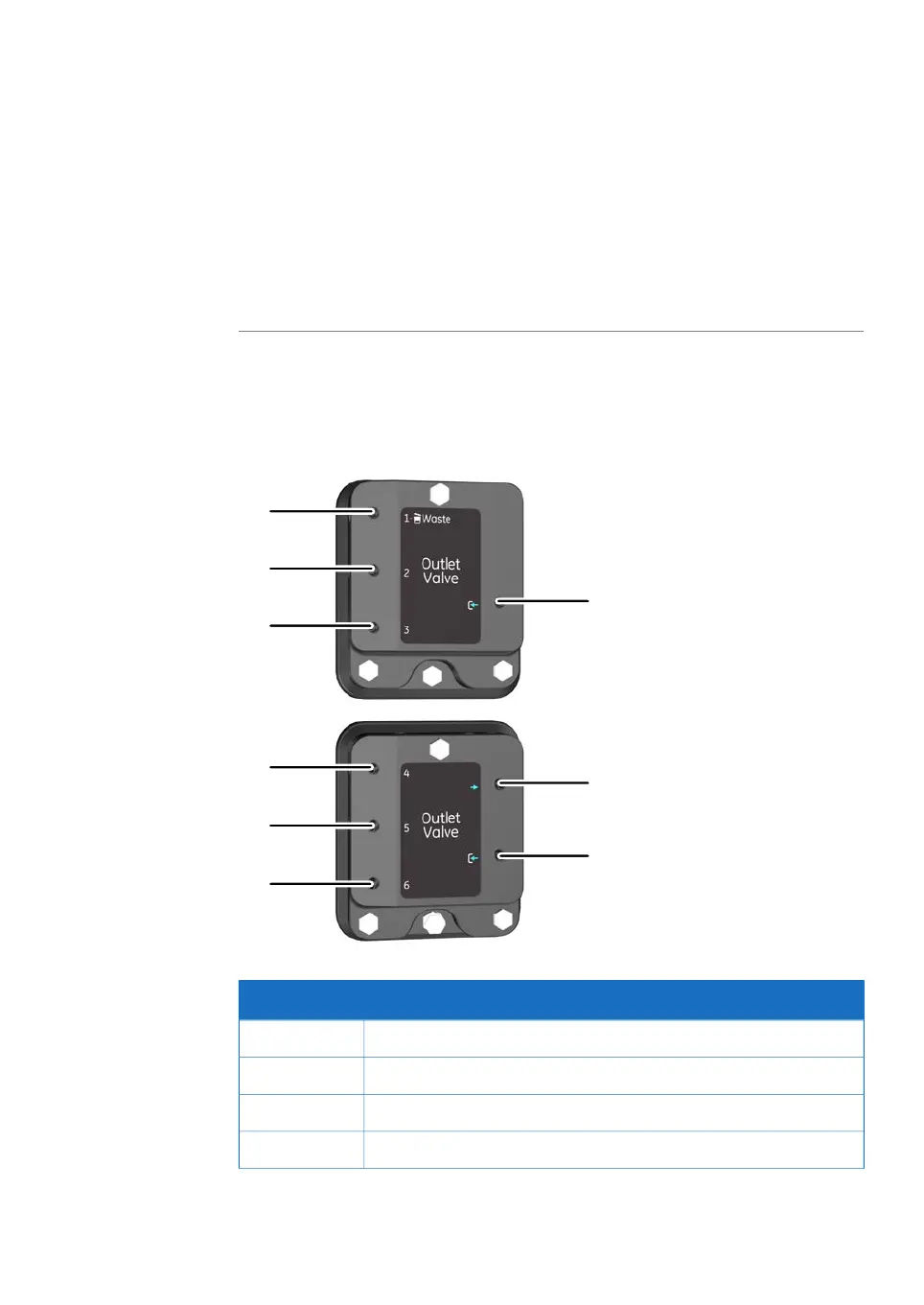

The illustration below shows the front of two outlet valve modules, the mandatory
module above and the first optional module below.
1
2
3
4
5
6
7
8
9
DescriptionPart
Inlet1
Outlet leading to the next outlet valve module (must be connected)2
Inlet3
Outlet for waste solution4
