Symbols used in the manual or on the equipment
Symbols replace words on the equipment, on the display, or in
product manuals.
Warnings and Cautions tell you about dangerous conditions that can
occur if you do not follow all instructions in this manual.
Warnings tell about a condition that can cause injury to the operator
or the patient.
Cautions tell about a condition that can cause damage to the
equipment. Read and follow all warnings and cautions.

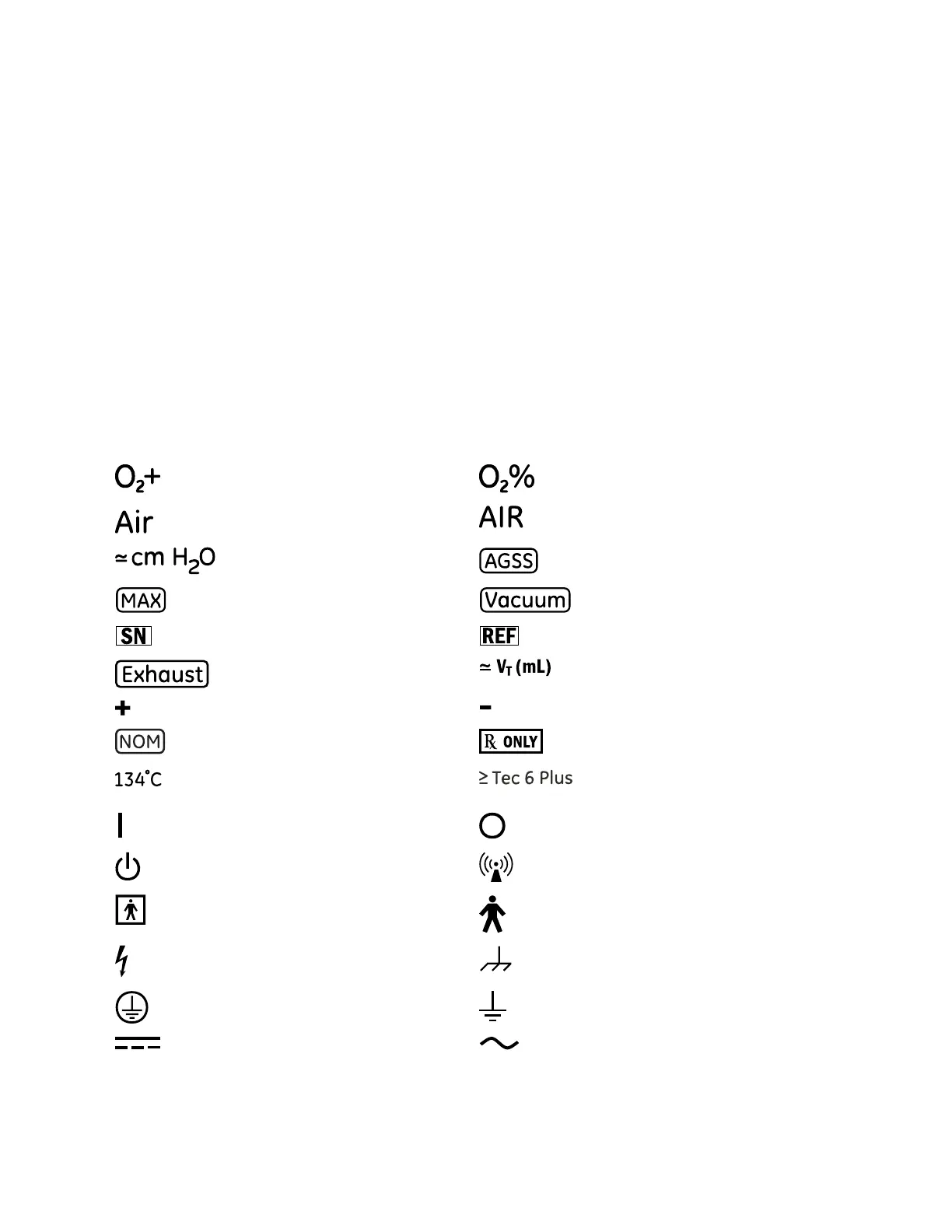

Symbols used on the equipment
.
O2 Flush button O2 concentration
Air Air
APL settings are approximate Anesthetic Gas Scavenging System
Maximum Vacuum
Serial number Stock number
Exhaust Bellows volumes are approximate
Plus, positive polarity Minus, negative polarity
Nominal mass weight Caution: federal law prohibits
dispensing without prescription.
Autoclavable Selectatec
™
Series Vaporizers Tec
™
6
Plus or greater
On (power) Off (power)
Standby Non-ionizing electromagnetic radiation
Type BF equipment Type B equipment
Dangerous voltage Frame or chassis ground
Protective earth ground Earth ground
Direct current Alternating current
1 Introduction
2076152-001 1-9
