GE Carestation 650 A1 - ACGO Display

ACGO display
A
C
.24.119
-20 100
0
20
40
60
ACGO in use: Ventilator Off
Turn off ACGO to use circle circuit.
[ VCV ]
TV
[ 500 ]
RR
[ 12 ]
PEEP
[ Off ]
43
14
11
0.5
1
5
10
15
1
3
2
4
P-ACGO cmH2O
40
0
70
140
P-ACGO
56
FGO2 %
Total Flow
4.6
32
1.3
2.4
0.9
7
P-ACGO
8
1. Split screen Shows P-ACGO, gas flow values, compliance, trends and optional ecoFLOW
information. For example: P-ACGO.
2. Waveform fields When pressure waveform is selected, displays the measured values for pressure
through the ACGO port.
3. Measured values fields When pressure waveform is selected, displays the meassured values for pressure
through the ACGO port.
4. ACGO status Shows that the ACGO switch is set to the ACGO position.
5. Status field Shows the ACGO status and alarm or status messages. For example: ACGO in use:
Ventilator Off.
6. Message fields Displays ventilation mode or messages. For example: Turn off ACGO to use circle
circuit.
7. Ventilator quick keys Displays preset ventilation parameters. For example: VCV, TV, RR, and PEEP.
8. Total flow Shows information for Total Flow and FGO2 %.

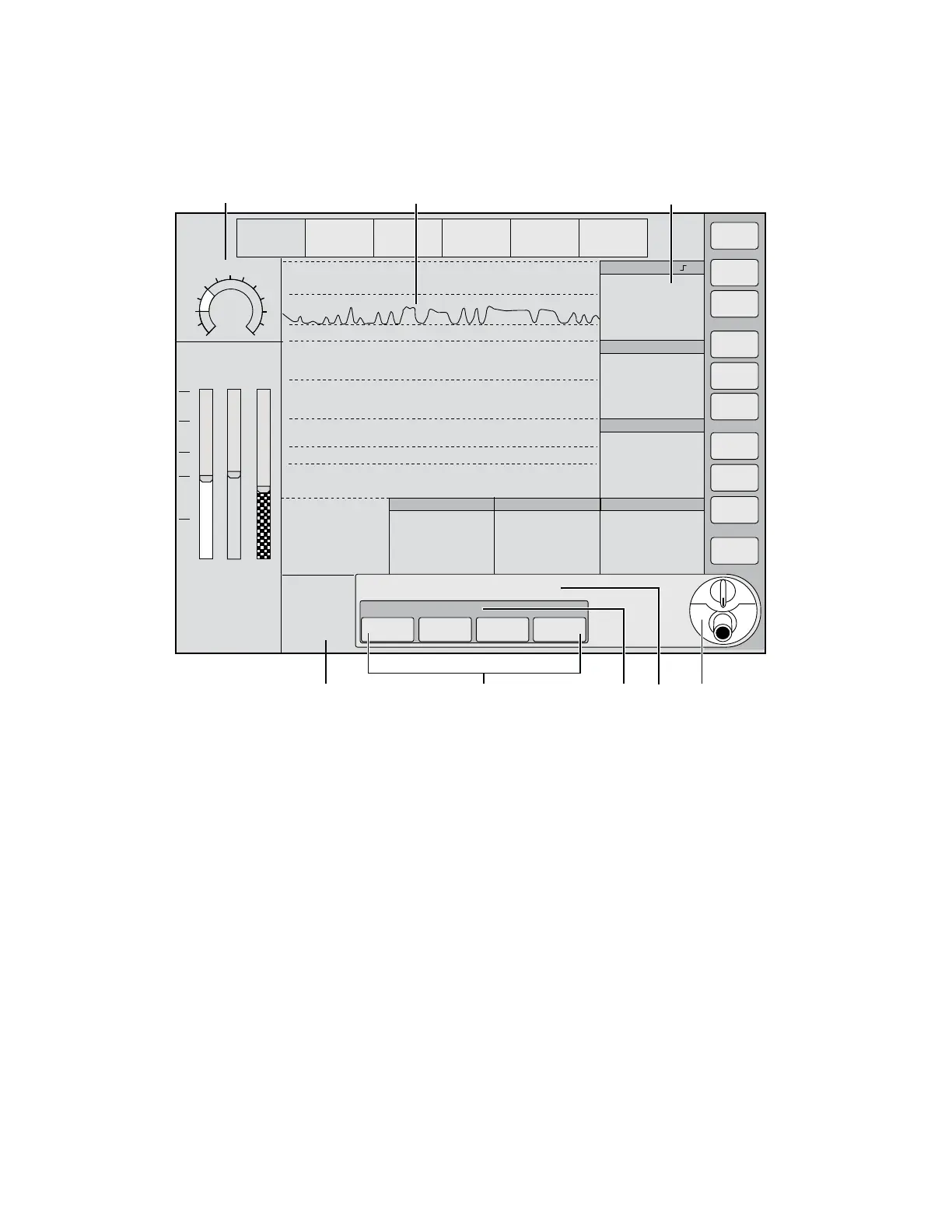

Figure 2-15 • ACGO typical full view
Carestation
™
620/650/650c (A1)
2-18 2076152-001
