Alarm assignment to each relay
Virtually all alarms can be assigned to one of the 16 relays or to K1 by filling the
associated matrix for these alarms in the set-up. The alarms available have already been
defined in each of the relevant previous sections.
This example shows the matrix for the gas alarms shown in the example in Figure 150
above.
HMI: Settings / Alarms / Gas

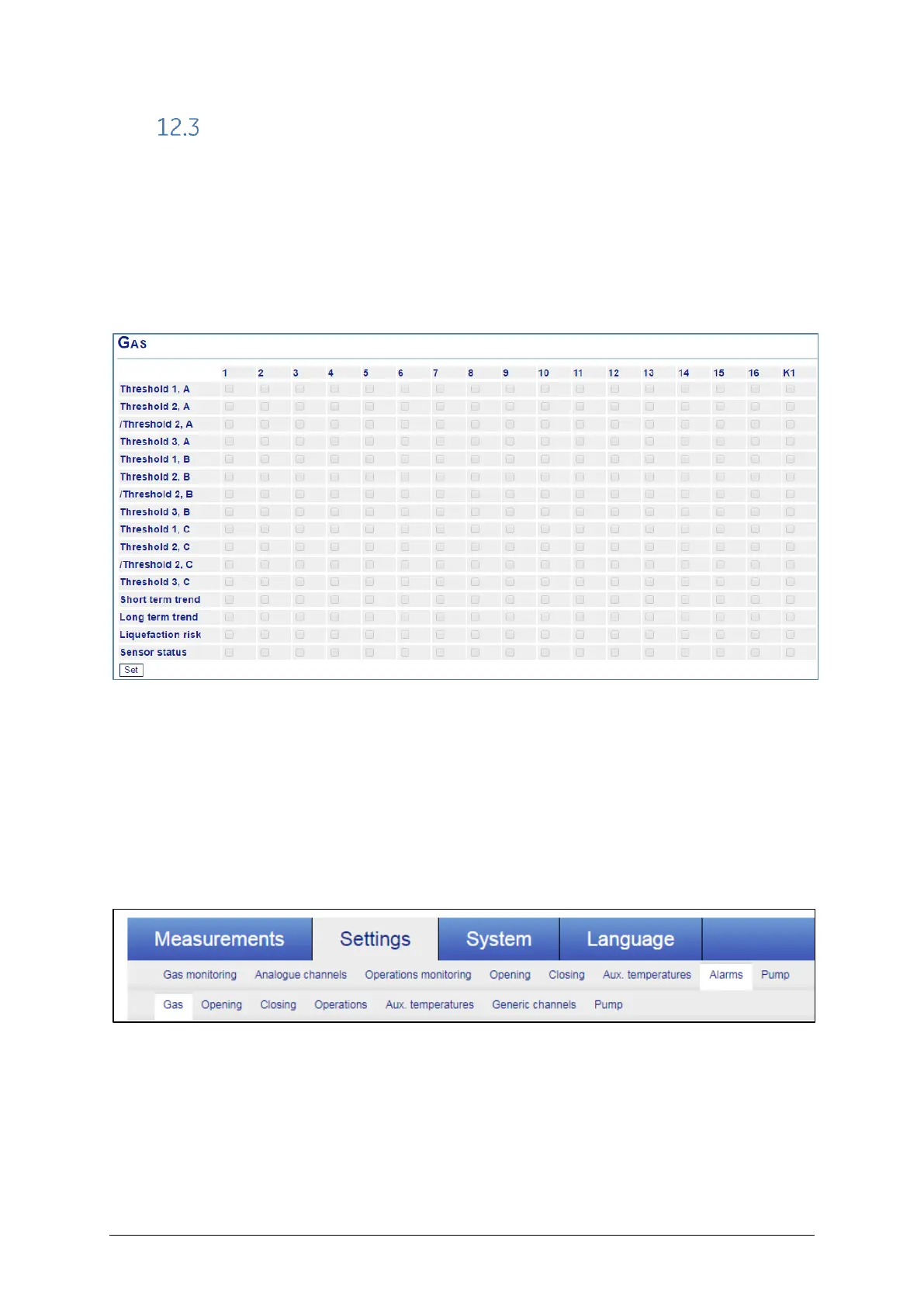

Figure 151 – Gas alarm assignments
Each monitoring function has its own alarms that can be assigned in a similar manner to
one of the 16 relays or K1 by selecting them in the appropriate table in the alarm setup
section.
Each function has its own section:
HMI: Settings / Alarms
Figure 152 – Alarm sections for each monitoring function
