CB Watch 3 User Manual v6.3 - May 2019 Page 51 of 100

separation time offset (ts-t1) which we input during the setup. It can be set differently per

pole but is usually the same.

HMI: Settings / Opening

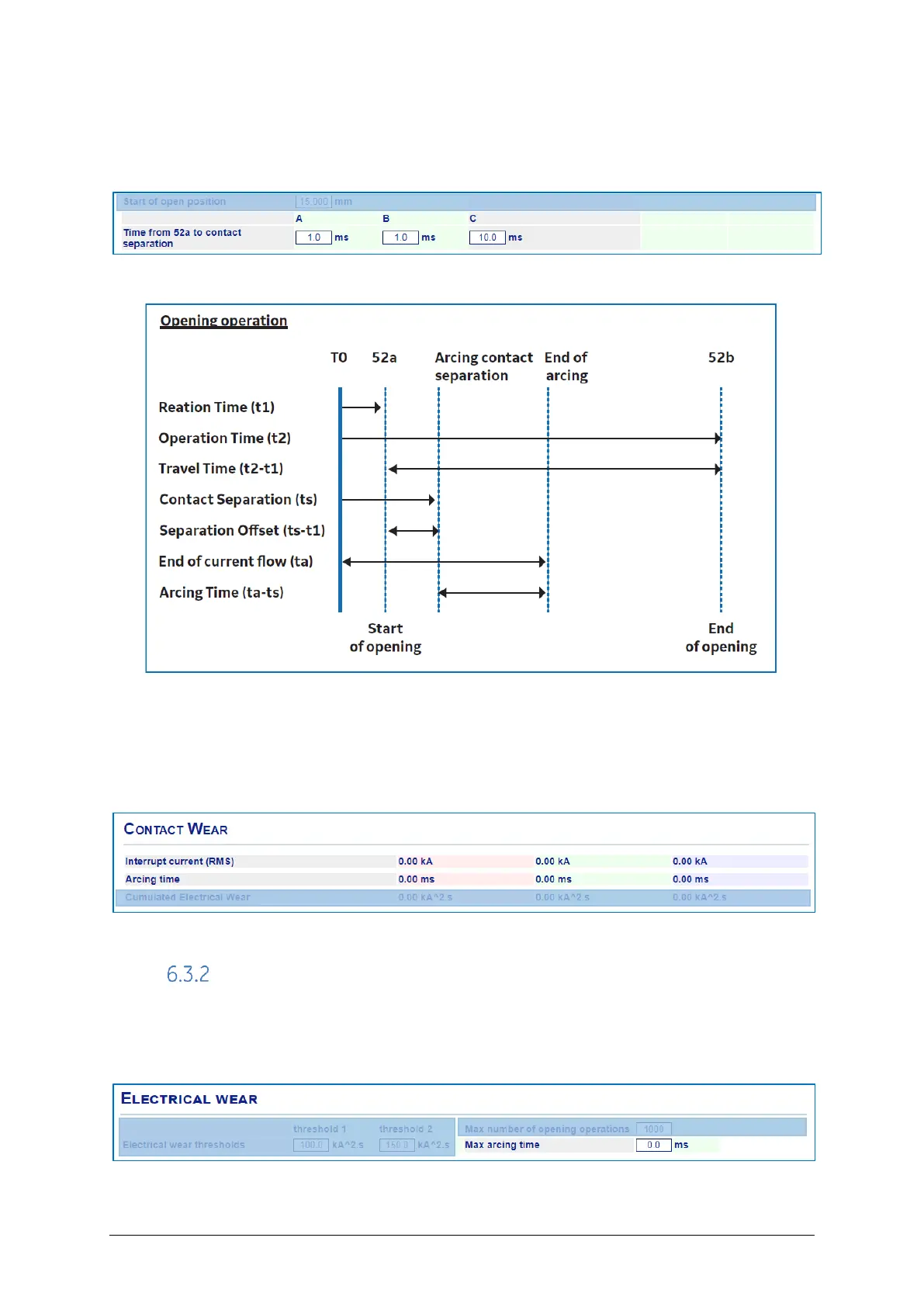

Figure 72 – Separation offset input

Figure 73 – Opening operation timing diagram

Using either of these two methods, the arcing time can be calculated and shown for each

operation:

HMI: Measurements / last opening results

Figure 74 – Arcing time

Arcing time alarm

To receive a warning when the breaker is not interrupting the arc fast enough and the

arcing time is too long, an alarm can be set against a maximum threshold:

HMI: Settings / Opening

Figure 75 – Max arcing time threshold
