3-14 170 Series Monitor Revision D
2003023-001
Controls, Indicators, and Connectors: Rear Panel Connectors
Rear Panel Connectors

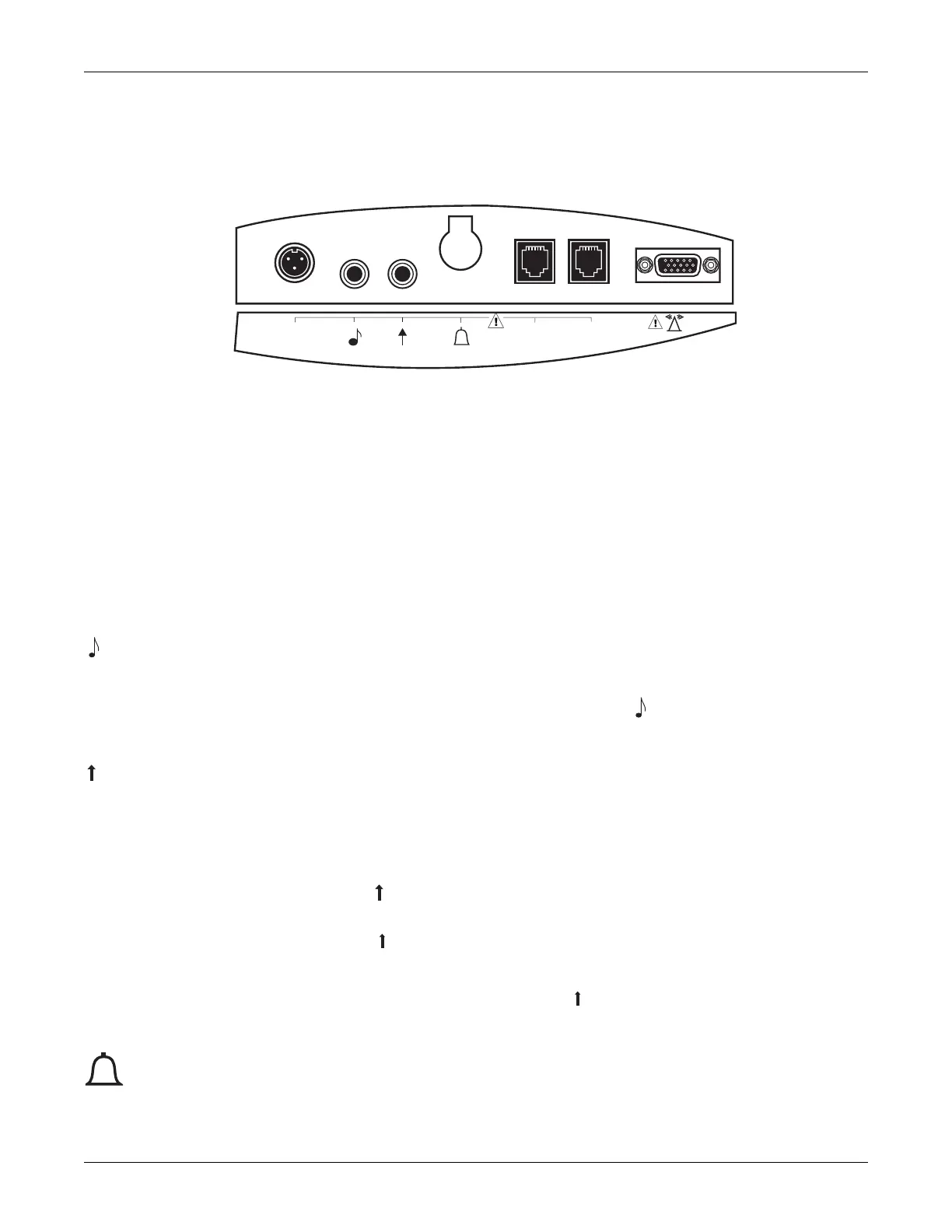

Figure 3-7. Rear Panel Connectors
Power Supply Connector
This is the receptacle for the AC adapter, P/N 7714AAT only. A line cord connects
from the other end of the adapter to an AC wall outlet. The connector is labeled
CONNECT TO GE MEDICAL SYSTEMS REF 7714AAT ONLY. The power supply is a
universal AC-to-DC converter which can accept an AC input in the range 100–230
VAC. The converter supplies a regulated 12 Vdc to the monitor.
Remote Mark Connector
This connector is provided for attaching an optional Corometrics Model 146 Fetal
Acoustic Stimulator (FAST). The annotation
prints on the strip chart each time
the Model 146 is used.
Remote Mark Connector
This connector is provided for attaching an optional Corometrics Remote Event
Marker. This accessory annotates the strip chart recorder paper with a marker which
can be configured as one of the following:
: This annotation is commonly used to record an “event.”
: This annotation is commonly used as an indication that the mother has
perceived fetal movement.
The monitor is factory set to use the annotation. Refer to the “170 Series Service
Manual” for information about selecting the annotation.
Nurse Call Interface
This connector is intended for future interfacing to a standard Nurse Call System.
RS232 RS232
12
CONNECT TO:
GE MEDICAL SYSTEMS
REF 7714AAT ONLY
FM
FM
