Operation - Measure/simulate a Thermocouple
To measure/simulate the TC values:
1. Connect the instrument (Figure 9) and, if necessary,
adjust the Set Up (Table 1).
2. Select the task from the task selection menu (Table 2).
3. Select Settings (■ ■
) to change the operation from
Temperature to mV or mV to Temperature.
4. If necessary, adjust the Settings (Table 4/5) and/or the
output values to the system (Table 7).

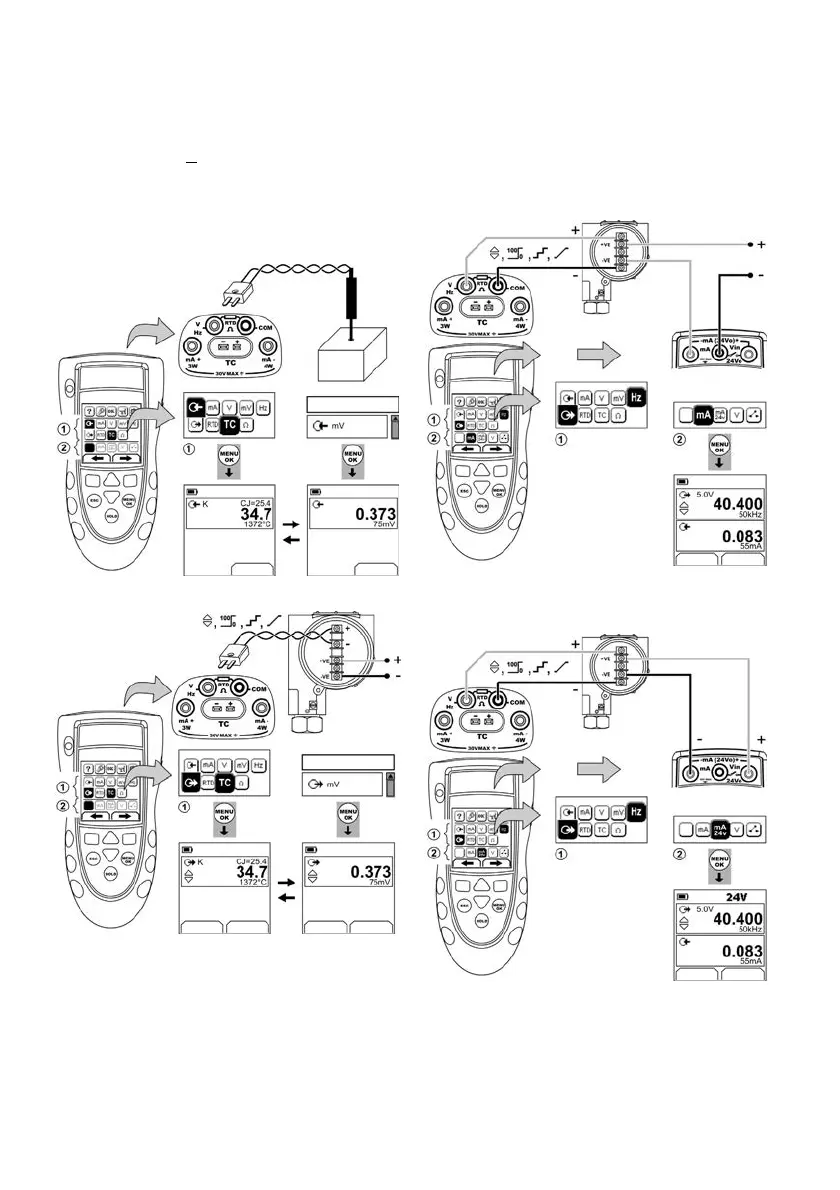

Figure 9: Example configuration - To measure/simulate the
temperature (°C/°F) or mV values of a TC
Operation - Transmitter calibration
To calibrate a transmitter:
1. Connect the instrument (Figure 10/11) and, if
necessary, adjust the Set Up (Table 1).
2. Select the applicable calibration task from the task
selection menu (Table 2/3) and, if necessary, adjust the
Settings (Table 4/5).
3. Supply the output values to the system (Table 7).
Figure 10: Example configuration - Transmitter calibration
with external loop power
Figure 11: Example configuration - Transmitter calibration
with internal loop power
SettingsSettings
°C
K
a) °C or °F (Input) b) mV (Input)
Settings
Edit Settings Edit Settings
c) °C or °F (Output) d) mV (Output)
Settings
Edit Settings
Maximum: 30V
Edit Settings
