GE DVM1950 - Circuit Board Connector Guide; Smart Board Connector Layout; Display Board Connection Details

– 18 –
PVM2170 Smart Board
PVM2170 Display Board

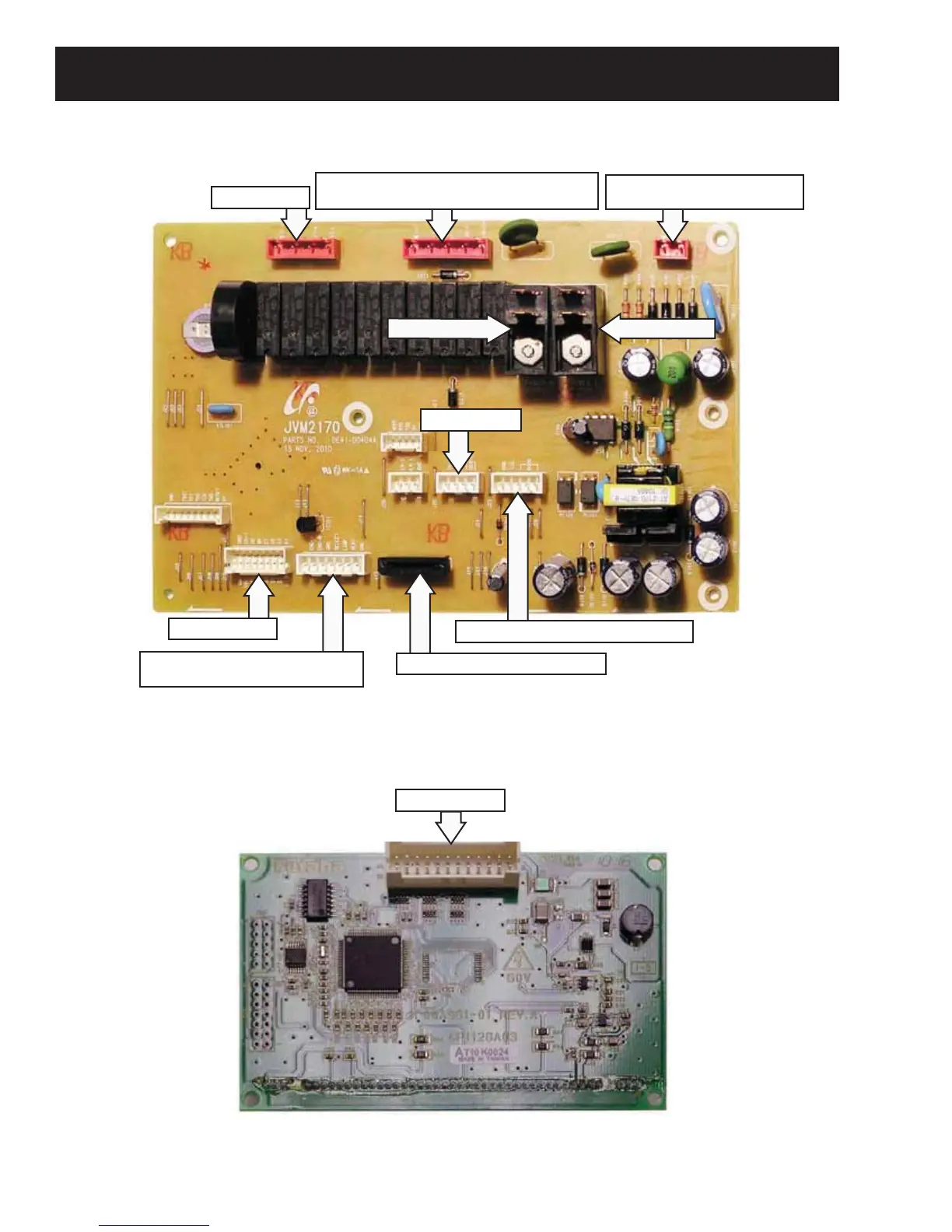

Circuit Board Connectors View
To Door Sense Switch and Vent TCO
To Gas Sensor
To T/T Motor, Cooktop Lamp, Cooling Motor,
and Secondary Interlock Switch – 2
To Touch Pad Ribbon Connector
To Smart Board
To Vent Motor
To Zero Standby Switch and
Secondary Interlock Switch – 1
Power-L RelayPower-H Relay
To Display PCB
To Vent/Cooktop Lamp Tact Switch
and Encoder Switch
