5. Remove the 6 Phillips-head screws attaching
the bottom cover of the microwave oven
cabinet.
7. Remove the 2 Phillips-head screws attaching the
cooling fan frame to the microwave oven.
6. Remove the Phillips-head screw attaching the
cooling fan bracket to the base.
4. Disconnect the wiring to the cooling fan motor
and the vent TCO.
Cooling Fan Motor
The cooling fan motor is located on the right side of
the microwave oven.
To remove the cooling fan motor:
1. Remove the control panel assembly.
(See Control Panel Assembly.)
2. Remove the outer cover. (See Outer Cover.)
3. Disconnect wiring to the primary connection of
the high voltage transformer.

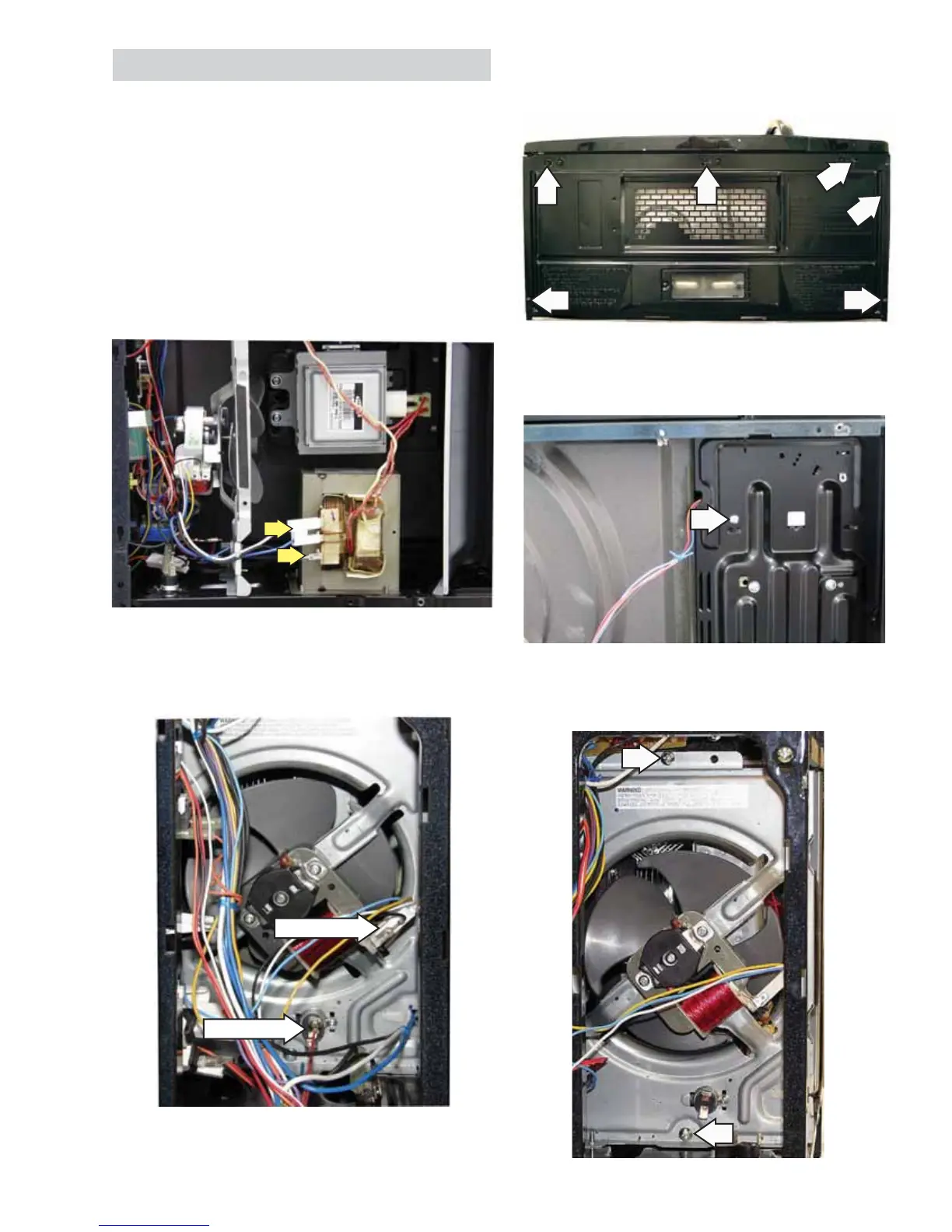

View From Right Side
Disconnect
Disconnect
(Continued next page)
