– 19 –

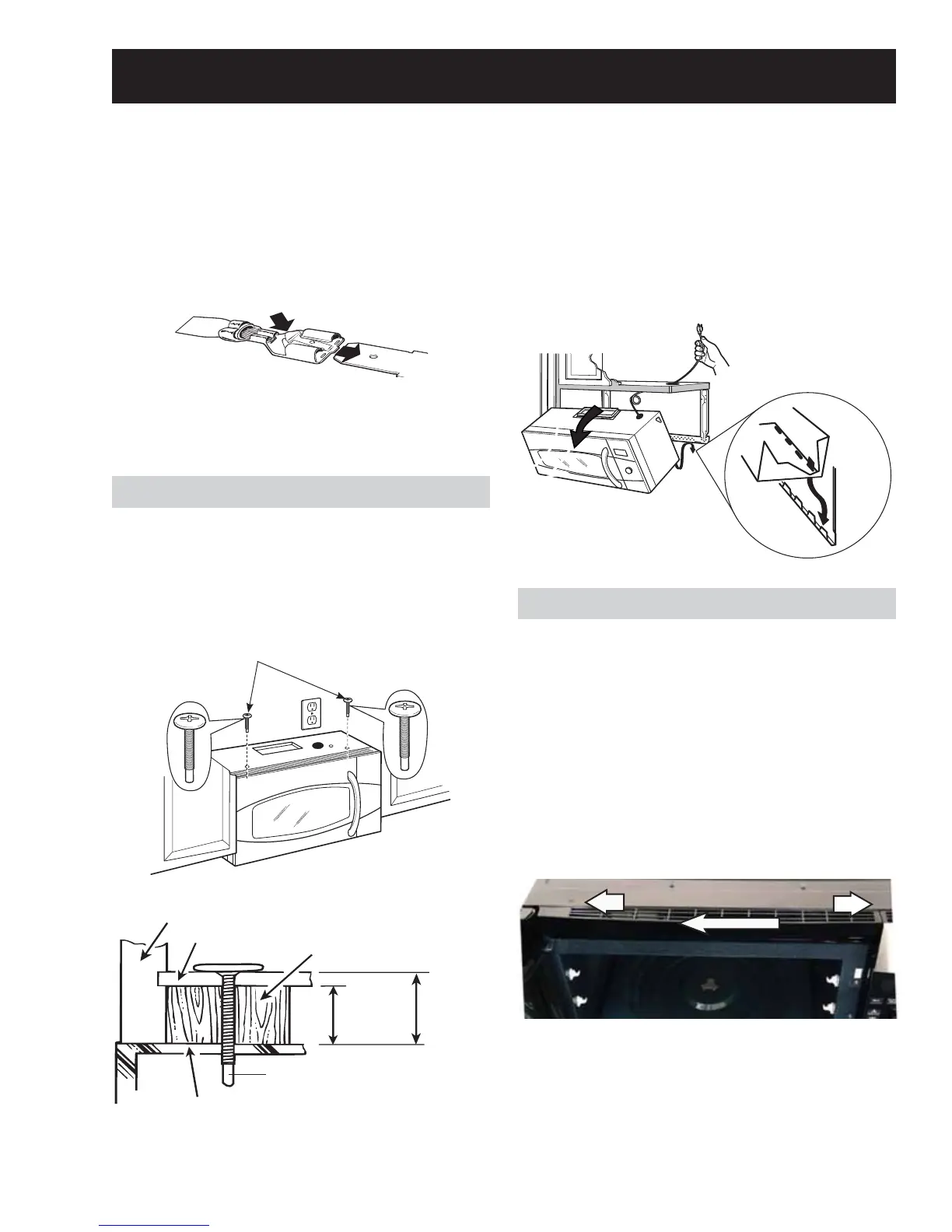

Components
Electrical terminal release/locking tab
(shown with plastic covering removed)
2. Tilt microwave oven forward, then unhook the
slots at the back, bottom edge from the lower
tabs of the mounting plate.
3. Lift and remove the microwave oven.
WARNING: When removing the microwave oven,
be sure to provide adequate support to prevent
dropping the unit.
Microwave Oven Removal
Caution: Two people are recommended for safe
removal of the microwave oven.
1. While supporting the microwave oven, remove
the 2 screws that attach the microwave oven to
the cabinet.
&DELQHW)URQW
&DELQHW%RWWRP6KHOI
)LOOHU%ORFN
2YHQ7RS
(TXLYDOHQW
WR'HSWK
RI&DELQHW
5HFHVV
6HOI$OLJQLQJ6FUHZ
7KLVGLVWDQFH
FDQ127
H[FHHGµ
WRHQVXUH
SURSHU
LQVWDOODWLRQ
Grille Assembly
To remove the grille assembly:
1. Open the microwave oven door.
2. Remove the 2 Phillips-head screws from the top
front of the oven cabinet.
3. Slide grille assembly to the left and pull out. The
bottom of grille is held in place with 2 tabs.
Note: The tabs must be inserted when replacing the
grille.
Note: In the following section, certain electrical
terminals that attach to the microwave oven
components utilize a locking tab. Some tabs cannot
be seen because they are encased in plastic. When
removing these terminals, grasp the top and bottom
of the terminal with needle-nose pliers. Gently
squeeze the jaws of the pliers together while pulling
the electrical terminal from the element.
