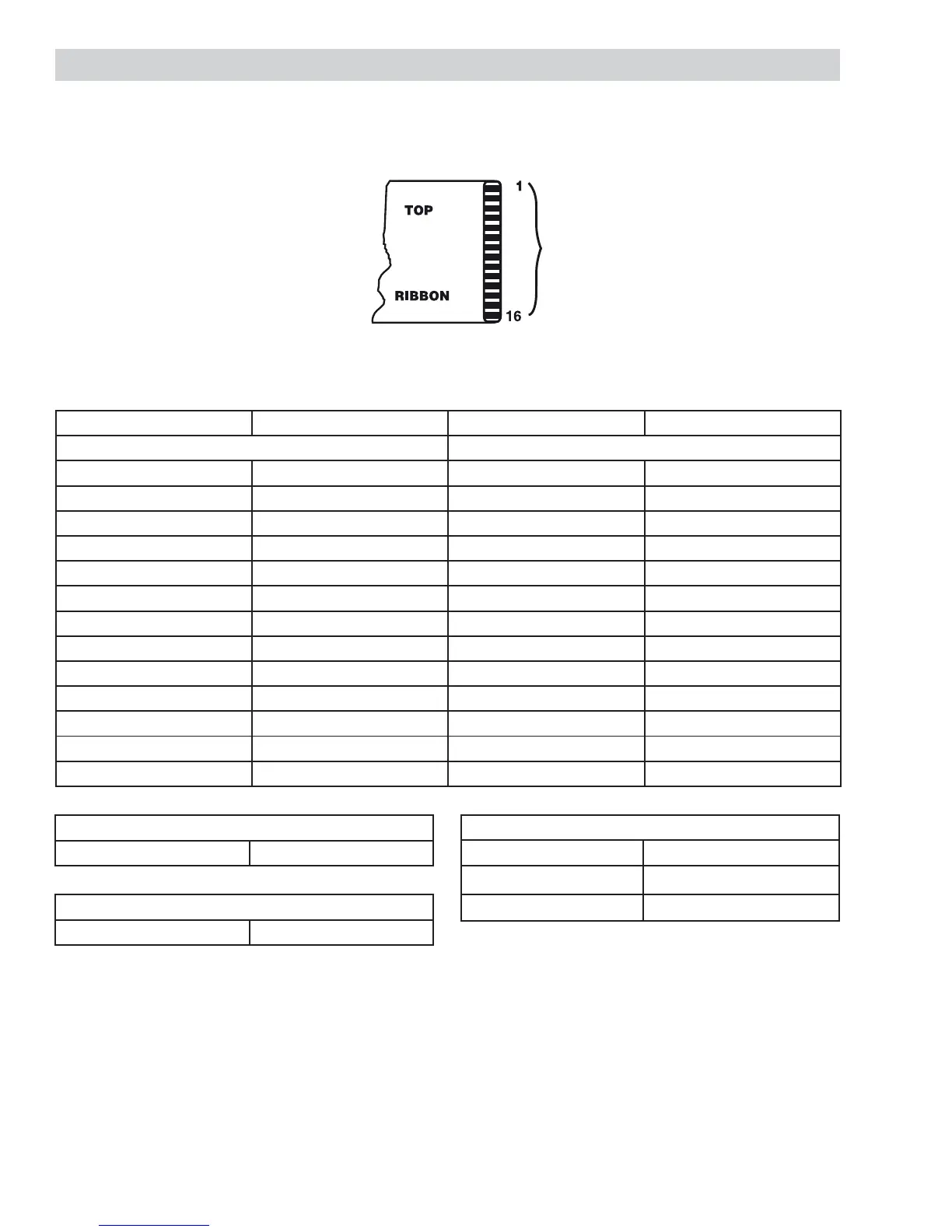

Key Panel Test (JVM1950, DVM1950, PVM1970)
If necessary, the key panel pads can be verifi ed by a continuity test. For ease of handling, the key panel
should be removed and placed on a fl at surface. Check the continuity between the connections at the end of
the ribbon. (Use high Ω scale.)
Pad Connection Pad Connection
DVM1950, JVM1950, PVM1970 DVM1950, JVM1950, PVM1970
Reheat 7-10 1 6-12
Popcorn 9-11 2 5-12
Family Snacks 5-11 3 4-12
Time Cook 9-12 4 3-12
Defrost 8-12 5 2-12
Power Level 4-13 6 9-13
Start/Pause 3-13 7 8-13
Cancel/Off 2-13 8 7-13
Settings 6-14 9 6-13
MyPlate.gov 6-15 0 5-13
Add 30 Sec 2-14
Timer 7-15
Steam 2-15
Ribbon Cable
JVM1950
Soften 3-14
DVM1950
Soften & Melt 3-11
PVM1970
Beverage 6-10
Potato 5-10
Melt 2-11
