5-24 F650 Digital Bay Controller GEK-106310AB
5.3 SYSTEM SETUP 5 SETTINGS
5
5.3.1.2 LOCAL - REMOTE BLOCK SETTING OVERVIEW
In the enhanced HMI with USB port new setting has been released in order to be able to lock the Local/Remote front key.
This setting is available via COMS or frontal HMI menu. The settings could be locked by password, so the operator wouldn't
be able to change the local-remote without inserting the password.
5.3.1.2.1 DEFINITIONS
The value is defined as:
•OFF: The operator is able to change the operations from local to remote or OFF.
•ON: The operator is not able to change the operations from local to remote or OFF.
5.3.1.2.2 SETTINGS

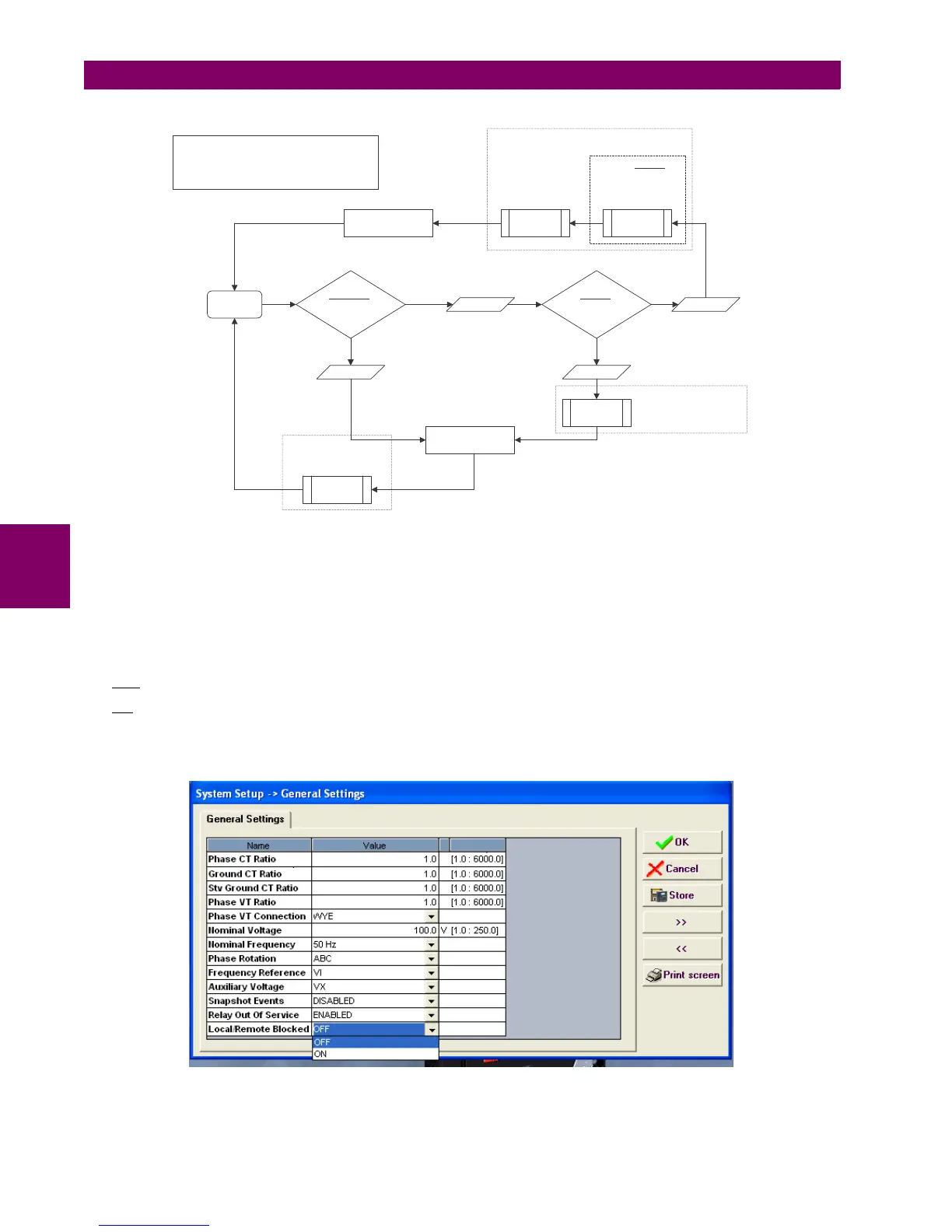

The unit will be set by the HMI and by 650Pc software as it is shown in the following figure.
Only if there is a change
from Disabled to Enable
Only if there is any change from Enabled to
Disabled
Only if there is any
change from Disabled to
Enabled
Only if LOGIC:
Relay Out Of Service
goes from Enabled to
Disabled
SETTING:
Relay Out
Of Service
RELAY IN
SERVICE
LOGIC:
Relay Out
Of Service
RELAY OUT
OF SERVICE
START
Ready
LED OFF
Ready
LED ON
OoS status
ON
OoS status
OFF
OUT OF SERVICE
FLOWCHART
To Next Page
