7 IEC 61850 PROTOCOL 7.3 IEC 61850 CONFIGURATOR
7

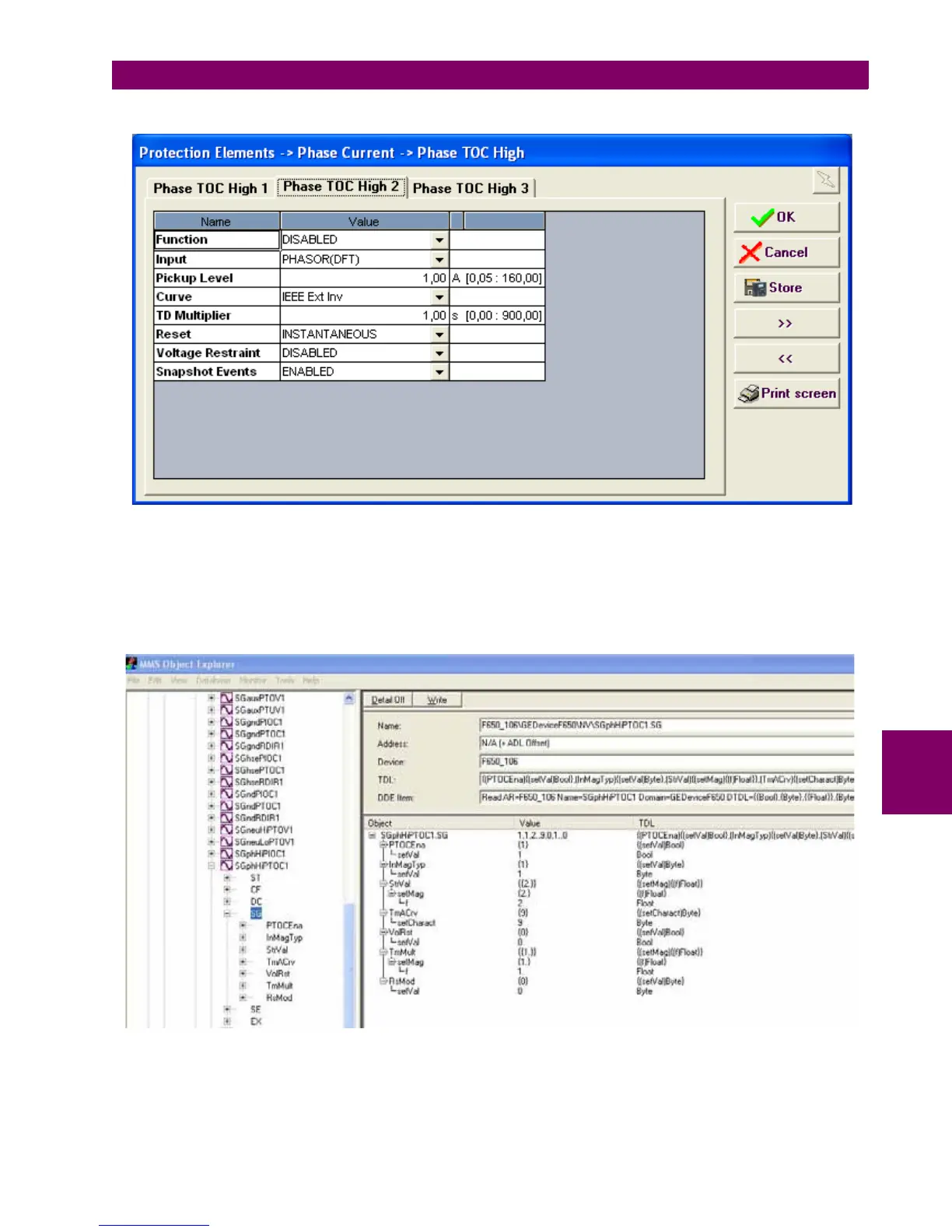

Figure 7–19:
As it is shown in the figure, the values of the settings of the setting group indicated with the ActSg are the ones with the FC
= SG in Logical Node SGphHiPTOC1, therefore the ones used by the high level of Phase Time Overcurrent protection
function in the relay.
Figure 7–20:
On the other hand, as it is shown in the figure, the values of the settings of the setting group indicated with the EditSg are
the ones with the FC = SE in Logical Node SGphHiPTOC1.
