7-72 F650 Digital Bay Controller GEK-106310AB
7.3 IEC 61850 CONFIGURATOR 7 IEC 61850 PROTOCOL
7

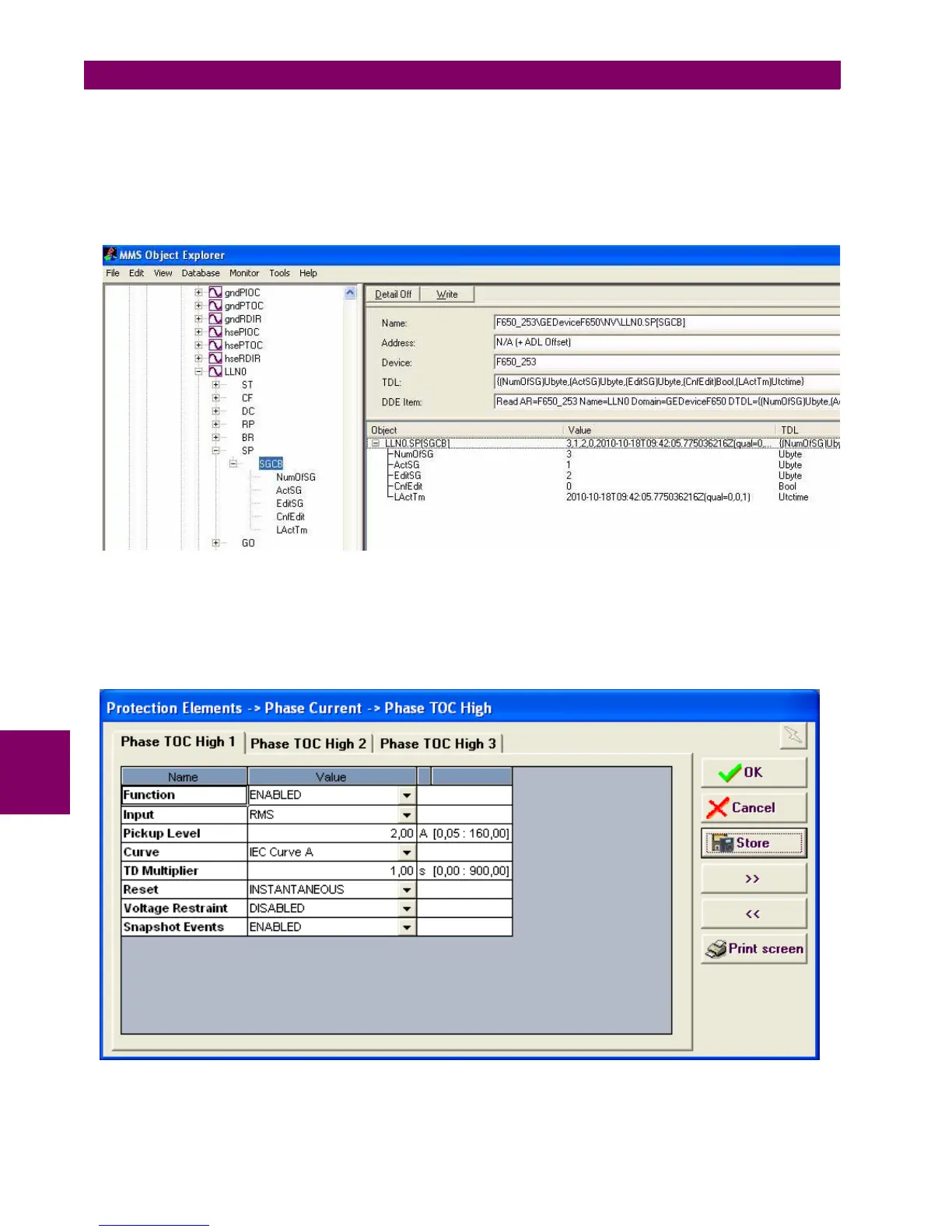

The next figure is a capture of an MMS browser where SGCB class attributes are shown and configured, setting ActSG
with the value 1 that corresponds with the first setting group in the F650 relay and EditSG with the value 2 that corresponds
with the second setting group.
Figure 7–17: MMS OBJECT EXPLORER
The settings for the groups 1 and 2 of high level of Phase Time Overcurrent protection function are shown in the next
figures.
Figure 7–18:
