7 IEC 61850 PROTOCOL 7.3 IEC 61850 CONFIGURATOR
7
If "Use Setting Group" is set to true, the new instances of the Logical Nodes will be accessible with the IEC 61850
Configurator as it is shown in the figure.

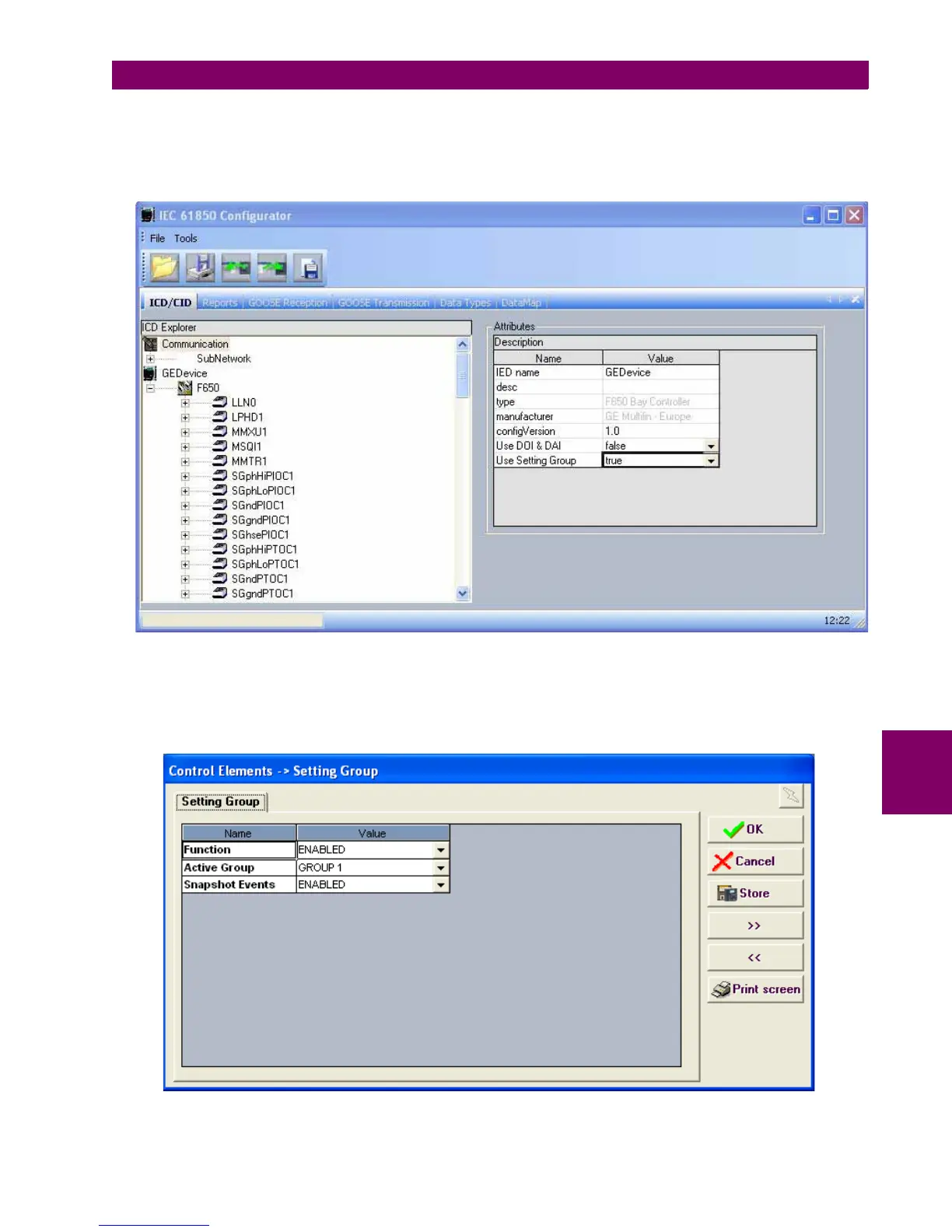

Figure 7–15: IEC 61850 CONFIGURATOR
The setting grouping permission could be enabled or disabled via "IEC61850 Configurator" setting "Use Setting Group" to
true, using the HMI of the relay or with the menu Setpoint->Control Elements->Setting Group of the EnerVista 650 Setup
program as it is shown in the figure.
Figure 7–16: CONTROL ELEMENTS - SETTING GROUP
