GE HEALTHCARE
DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
Section 8-3 - Software Loading Procedures (R7.7.x or later with BEP4) 8-31
8-3-8-6 TCP/IP Filter Setup (cont’d)
8.) Verify that the proper TCP port numbers are entered in TCP Ports box, then click OK buttons for all
opened window to complete the TCP/IP Filter Setup.
9.) The following dialog box appears. Click No to proceed the other settings. (After completion of all
system checks, the system is shut down.)

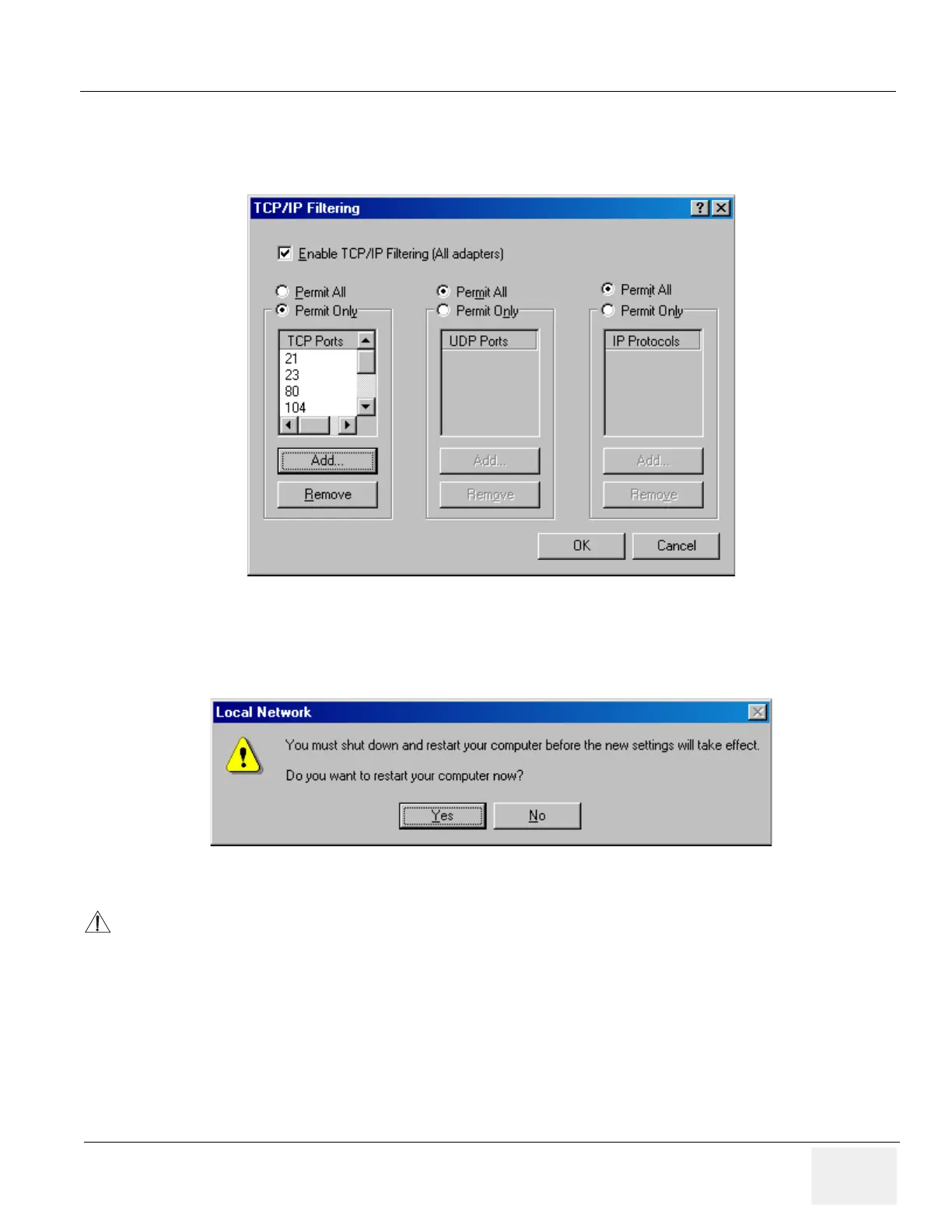

Figure 8-146 TCP/IP Filter Setup
Figure 8-147 Local Network
NOTICE
In case the last dialog box to restart the computer does NOT appear, check the TCP/IP Filter setup
again.
Connectivity check will be performed in Section 1-13 Post Installation Setup.
