Global Service User Interface (GSUI)
LOGIQ V3/V5/V5 Expert –
Basic Service Manual
7-13
5726264-100
English Rev.8
7-4-1
Enter global service
user interface(continued)

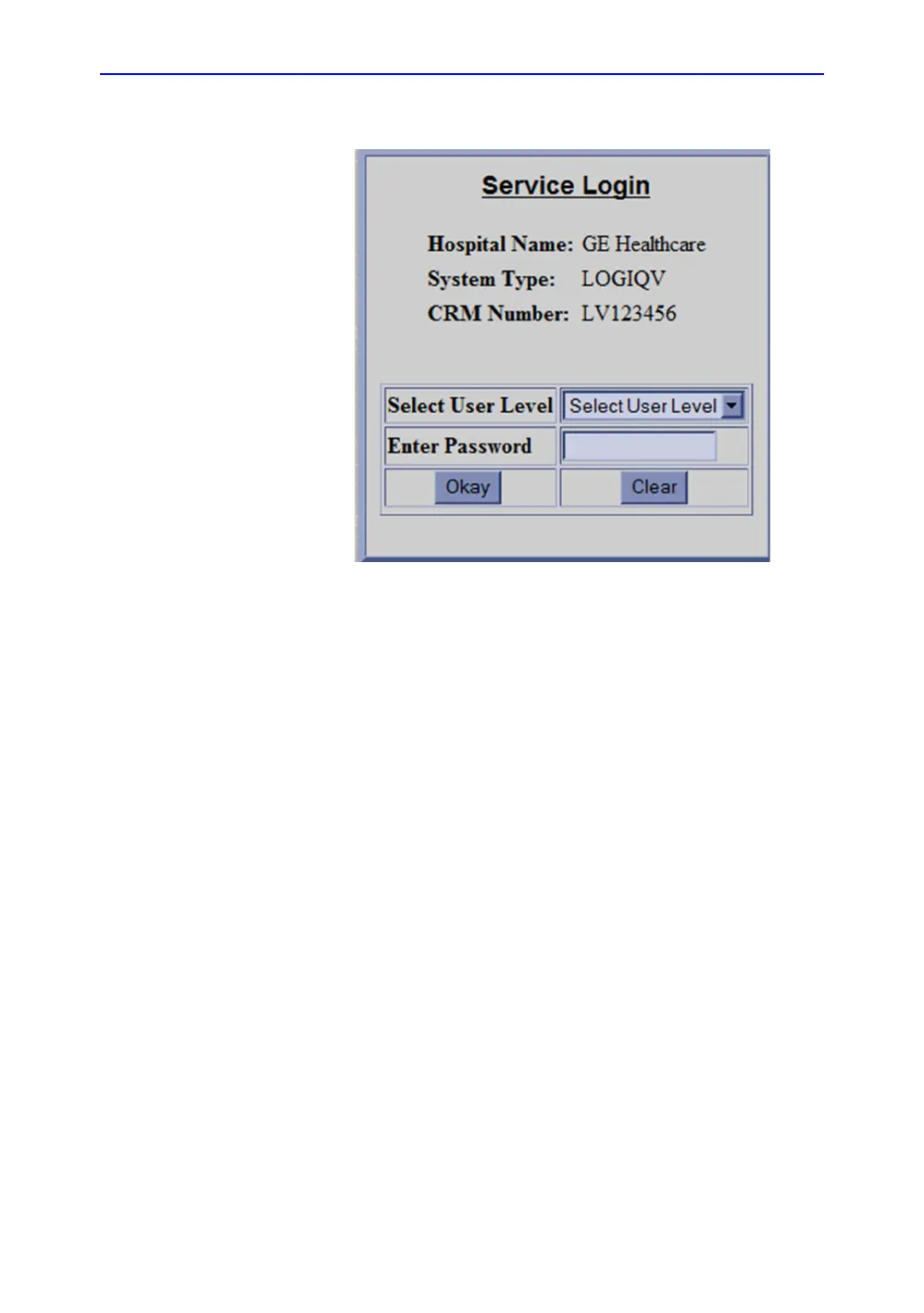

Figure
7-10.
Service Login Page
3.
Choose Diagnostic in Global Service In
terface to active
diagnostic functions, choose op
tions to activate various
functions co
rrespondingly
.
