Renewal Parts
9-4 LOGIQ V3/V5/V5 Expert – Basic Service Manual
5726264-100 English Rev.8
9-3 Renewal Parts Lists
9-3-1 Operator Console Assy

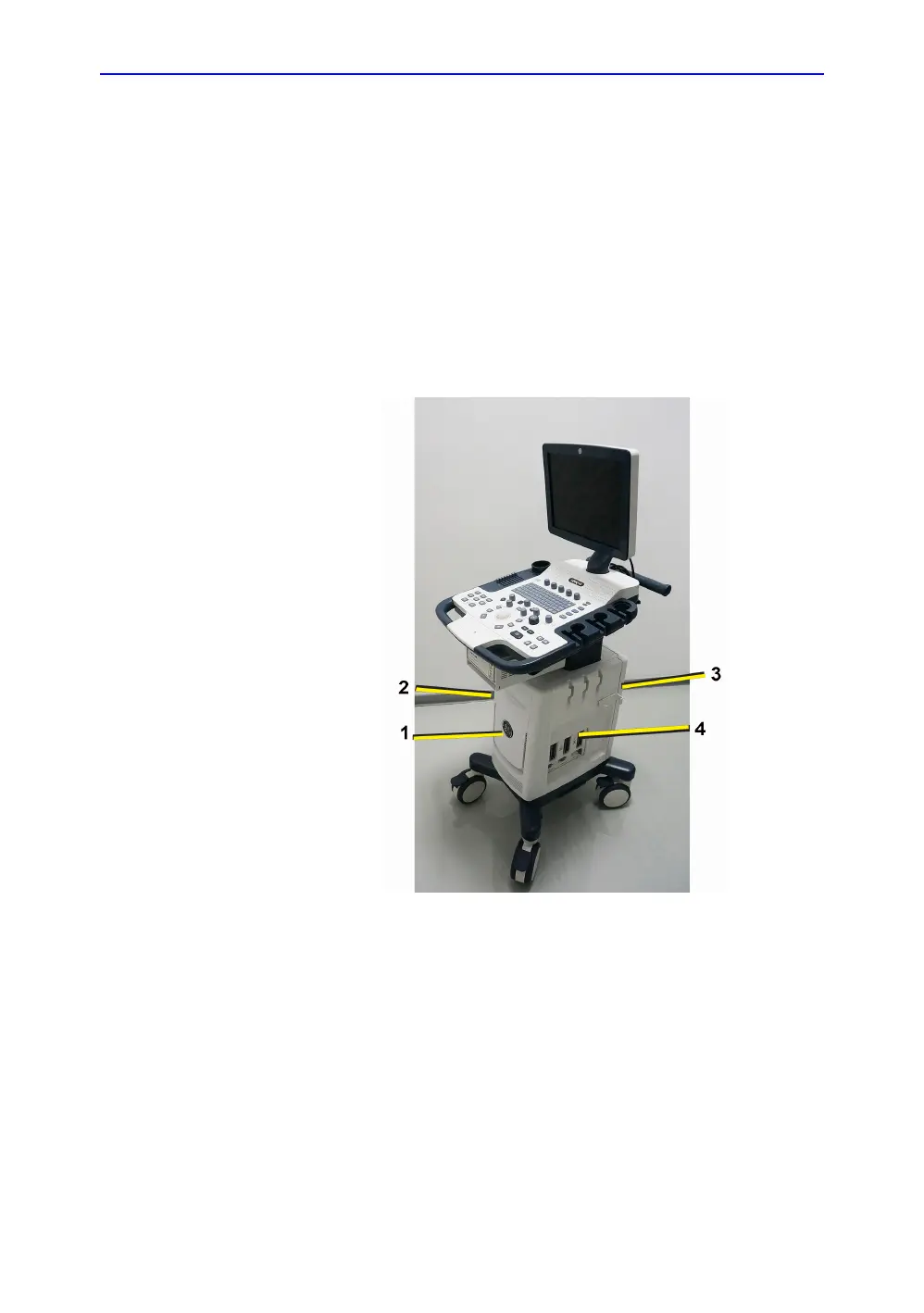

The following figure illustrates what is the front side (1), left side
(2), back/rear side (3), right side (4) of the system.
Figure 9-1. Operator Console Assy
