Diagnostics/Troubleshooting
7-26 LOGIQ V3/V5/V5 Expert – Basic Service Manual
5726264-100 English Rev.8
7-4-3-2-147-4-3-2-13 Assessment Utility(continued)
9. In the Diagnostic-> Service Diagnostics-> Assessment
Utility-> Probe Assessment to check the probe.
If there is no broken element and the probe is acceptable for
diagnostic, the following result window displays.

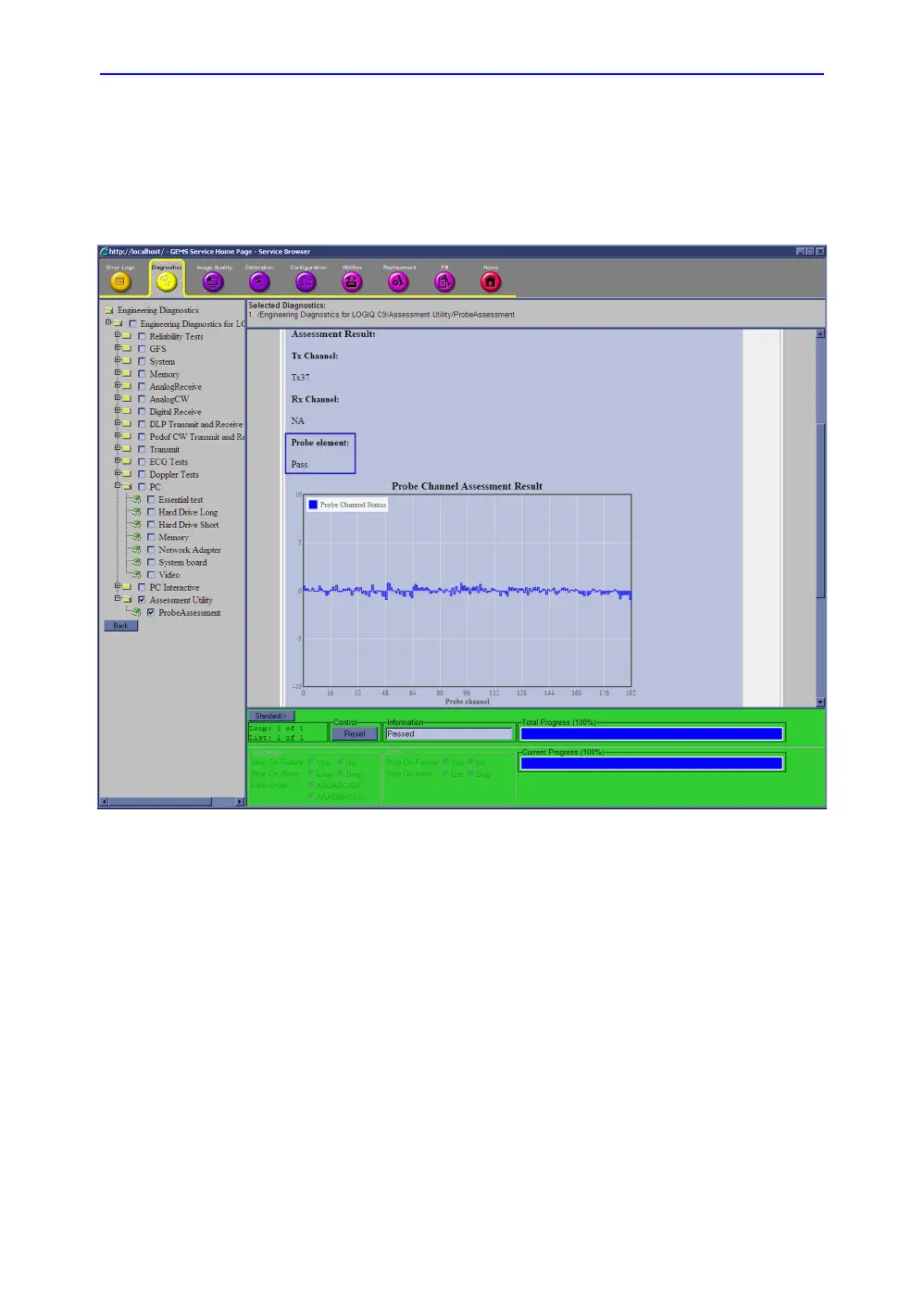

Figure 7-18. Probe Assessment Pass
To Next Page
