Maintenance
8.Removethedisplaybottomcover,carefullythreadingthedisplaycableand
keypadribbonthroughtheopenings.
9.DisconnectthedisplaycableandremoveitfromtheLCDdisplay.
NOTE:
Theferriteonthedisplaycableisafxedtothedisplaywithadouble-sided
tapewhichcanbegentlyremoved.

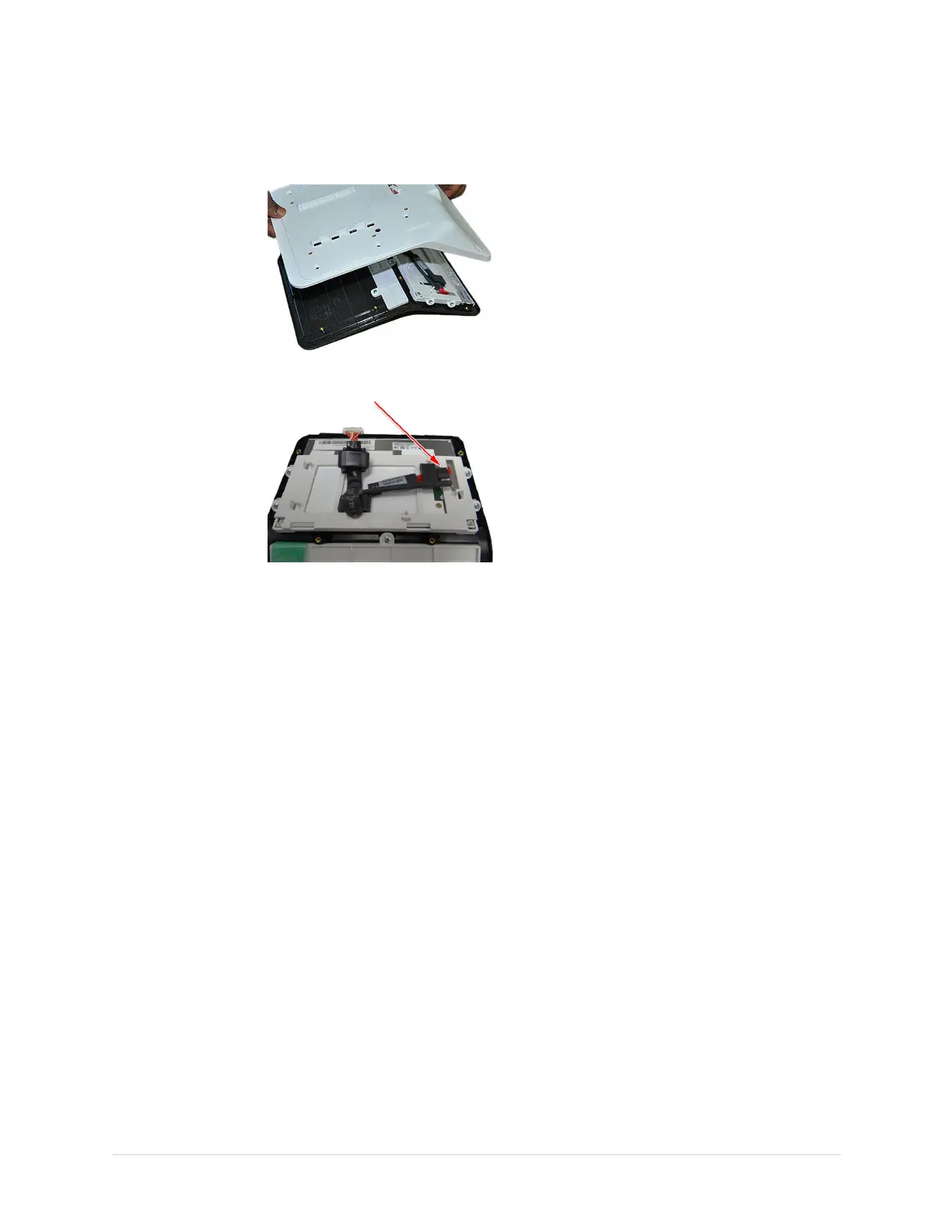

10.Removethefourscrewsfromthedisplayholder,asshowninthefollowing
photograph.
11.RemovethedisplayholderandgentlylifttheLCDoutofthedisplaybezel.
ReplacingtheKeyboard
Usethefollowingproceduretoreplacethekeypadassembly.
1.InserttheLCDdisplaymoduleintothenewdisplaybezelwiththekeypadFRU.
2.Replaceandtightenthescrewssecuringthedisplaytothedisplayholder,as
showninthefollowingphotograph.
2053535-003C
MAC™2000ECGAnalysisSystem
115
