GE MAC 2000 Service Manual

Maintenance
6.Placethenewbatteryinthecompartmentandpushuntilitclicksintoplace.
7.Replacethecoveronthebatterycompartment.
Itshouldclickintoplace.
8.Tightenthescrewtoholdthecoverinplace.
9.ContinuewiththeappropriatefunctionalcheckoutprocedureforthisFRU.
See“FunctionalCheckout”onpage129formoreinformation.
DeviceCovers
Thefollowingproceduresdescribehowtoremoveandreplacethetopcover,chassis,
andbottomcover.
TopCover
Thefollowingproceduresexplainhowtoremovethetopcoverassemblyfromthe
device,howtoseparatethetopcoverfromthetopcoverassembly,howtoreplace
thetopcover,andhowtoreattachthetopcoverassemblytothedevice.
RemovingtheTopCoverAssembly
Usethefollowingproceduretoremovethetopcoverassemblyfromthedevicein
ordertoaccessthedevice’sinternalcomponents.
1.Beforebeginninganysteps,followtheinstructionsin“PreparingtheSystemfor
FRUReplacement”onpage73.
2.Gentlyturnthedeviceoversothebottomcoverisfacingyou.

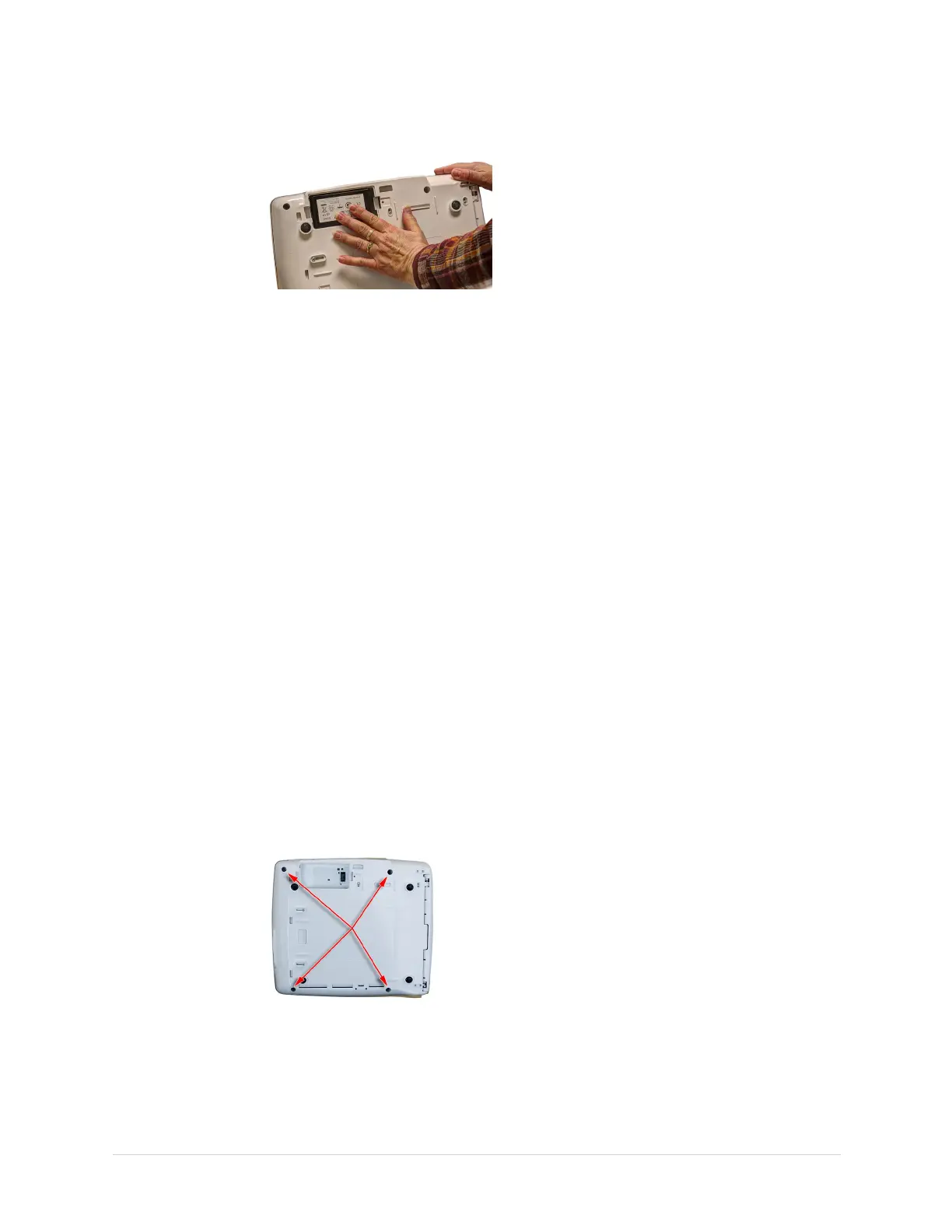

3.Removethescrewsholdingthebottomcoverinplace,asshowninthefollowing
photograph.
4.Gentlyturnthedevicebackoversothetopcoverisfacingup.
2053535-003C
MAC™2000ECGAnalysisSystem
75
