GE MAC 2000 - Power Inlet Module

Maintenance
ReplacingthePowerSupplyAssembly
Usethefollowingproceduretoreplacethepowersupply.
1.Positionthenewpowersupplyassemblyontothepowersupplybase.

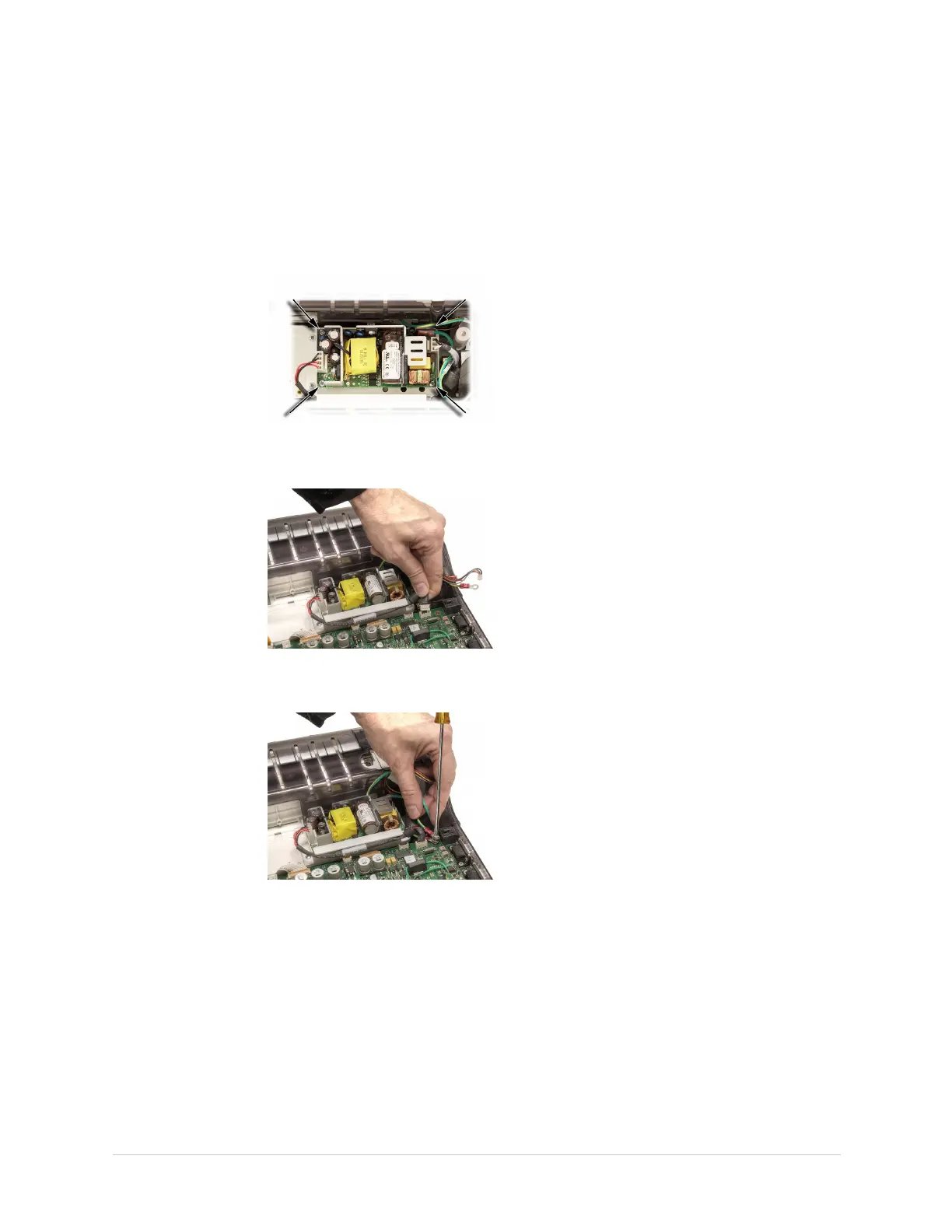

2.Insertthefour(4)screwstosecurethepowersupplyassemblytoitsbase,as
showninthefollowingphotograph.
3.AttachthepowersupplyharnesstothePWA,asshowninthefollowing
photograph.
4.SecurethegroundtothePWAusingthefastener,asshowninthefollowing
photograph.
5.Replacethetopcoverassembly.
See“ReplacingtheTopCover”onpage79forinstructions.
6.Reinsertthebattery.
Seestep6throughstep8in“ReplacingtheBattery”onpage74forinstructions.
7.ContinuewiththeappropriatefunctionalcheckoutprocedureforthisFRU.
See“FunctionalCheckout”onpage129formoreinformation.
PowerInletModule
Thefollowingproceduresdescribehowtoremoveandreplacethepowerinletmodule.
