GE MAC 2000 Service Manual

ServiceSetup
3.Performthe50mm/sSpeedTest.
a.Select50mm/sSpeedTest.
Thewriterprintsthe50mm/sspeedtestreport.
b.Whenonepageofthereporthasprinted,pressStop.

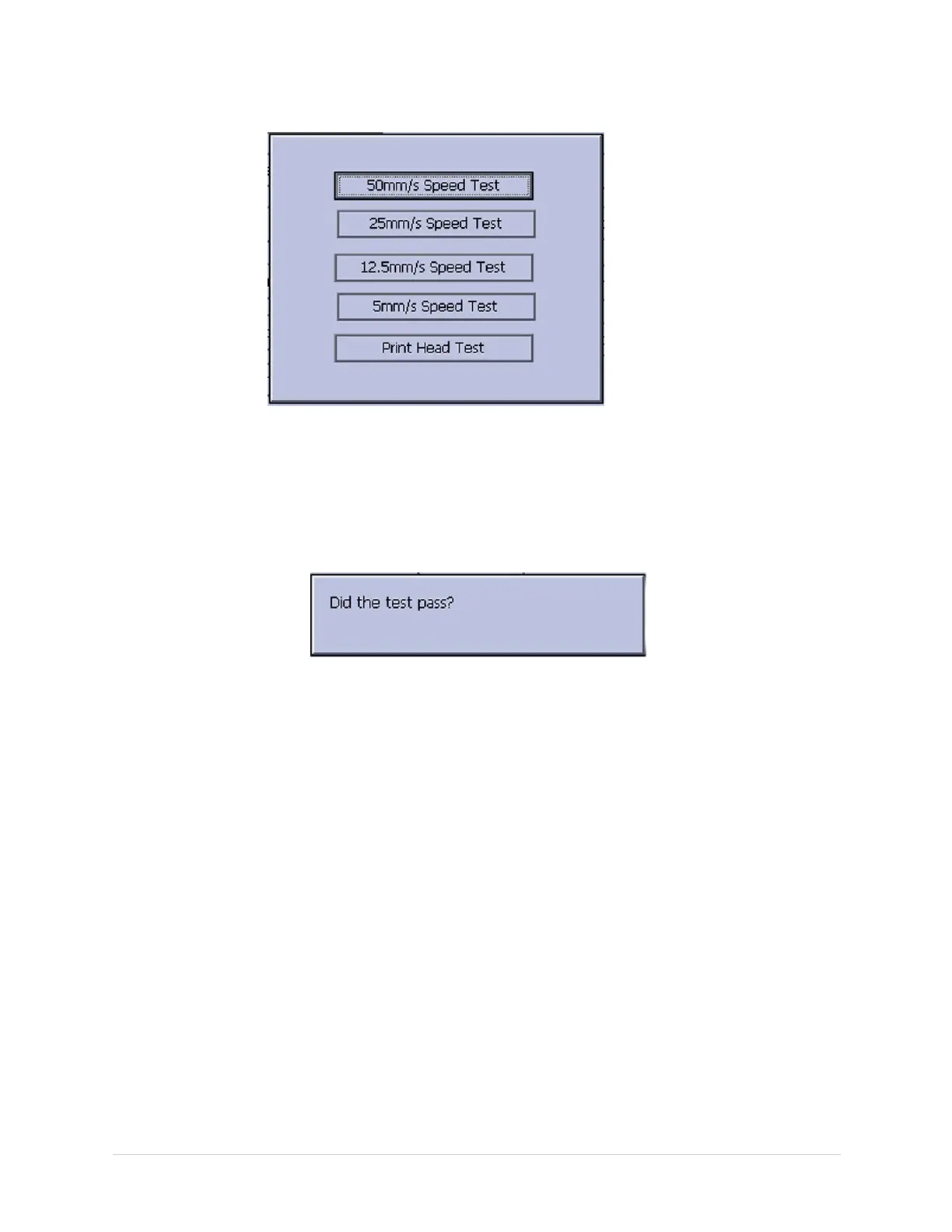

Thefollowingwindowopens.
c.Examinetheprintedreport.
Usethefollowingcriteriatodetermineifthewriterpassedorfailedthe
50mm/sspeedtest.
•Ifonecycleofthesquarewavespans50mmonpaper,measuredfrom
cornertocornerofthewave,withanallowabletoleranceof1.0mm,
thetestpasses.
•Ifthiscriteriaisnotmet,thetestfails.
d.Ifthetestpassed,pressYes.
Ifthetestfailed,pressNo.
4.Repeatthepreviousstepfortheotherspeedtests.Thepass-failcriteriaforeach
oftheremainingtestsareasfollows:
•25mm/sSpeedTest
Ifonecycleofthesquarewavespans25mmonpaper,measuredfrom
cornertocornerofthewave,withanallowabletoleranceof0.5mm(2%),
thetestpasses.
Ifthiscriteriaisnotmet,thetestfails.
•12.5mm/sSpeedTest
Measureveormorecyclesanddivideyourmeasurementbythenumber
ofcyclesmeasured.
2053535-003C
MAC™2000ECGAnalysisSystem
53
