156 iNET Series Reference Manual 05-2806A01, Rev. J
8. Install the covers and check the transceiver for proper operation.
Invisible place holder
5.3 TECHNICAL SPECIFICATIONS
GENERAL
Temperature Range: –30° C to +60° C (–22° F to 140° F)
Humidity: 95% at +40° C (104° F); non-condensing
Primary Power: 10–30 Vdc (13.8 Vdc Nominal)
External Power Supply Options: 110–120/210–220 Vac
Supply Current (typical): (9 Watts Maximum @ 1 Watt RF Output)
Transmit: 7 watts (10.5-24 Vdc)
9 watts (24.5-30 Vdc)
Receive: 2.8 watts (10.5-24 Vdc)
3.5 watts (24.5-30 Vdc)
MTBF (Reliability): Consult factory for on-file data
Size (Excluding mtg. hardware): 1.25" x 6.75" x 4.5" (H x W x D)
3.15 x 17.15 x 11.43 cm
Mounting w/Optional Hardware: • DIN Rail
• Flat surface mounting brackets
• 19” rack (1U high)
Weight: 908 g / 2 lb
Case: Cast Aluminum
Boot Time: ≈ 30 sec
Time Required to Associate
with Access Point: ≈ 20 sec
APPROVALS/HOMOLOGATION
• FCC Part 15.247
iNET FCC identifier: E5MDS-NH900
iNET-II FCC identifier: E5MDS-INETII
• Industry Canada RSS-210
iNET certification no.: 3738A 12098
iNET-II certification no.: 3738A-INETII
Figure 5-4.

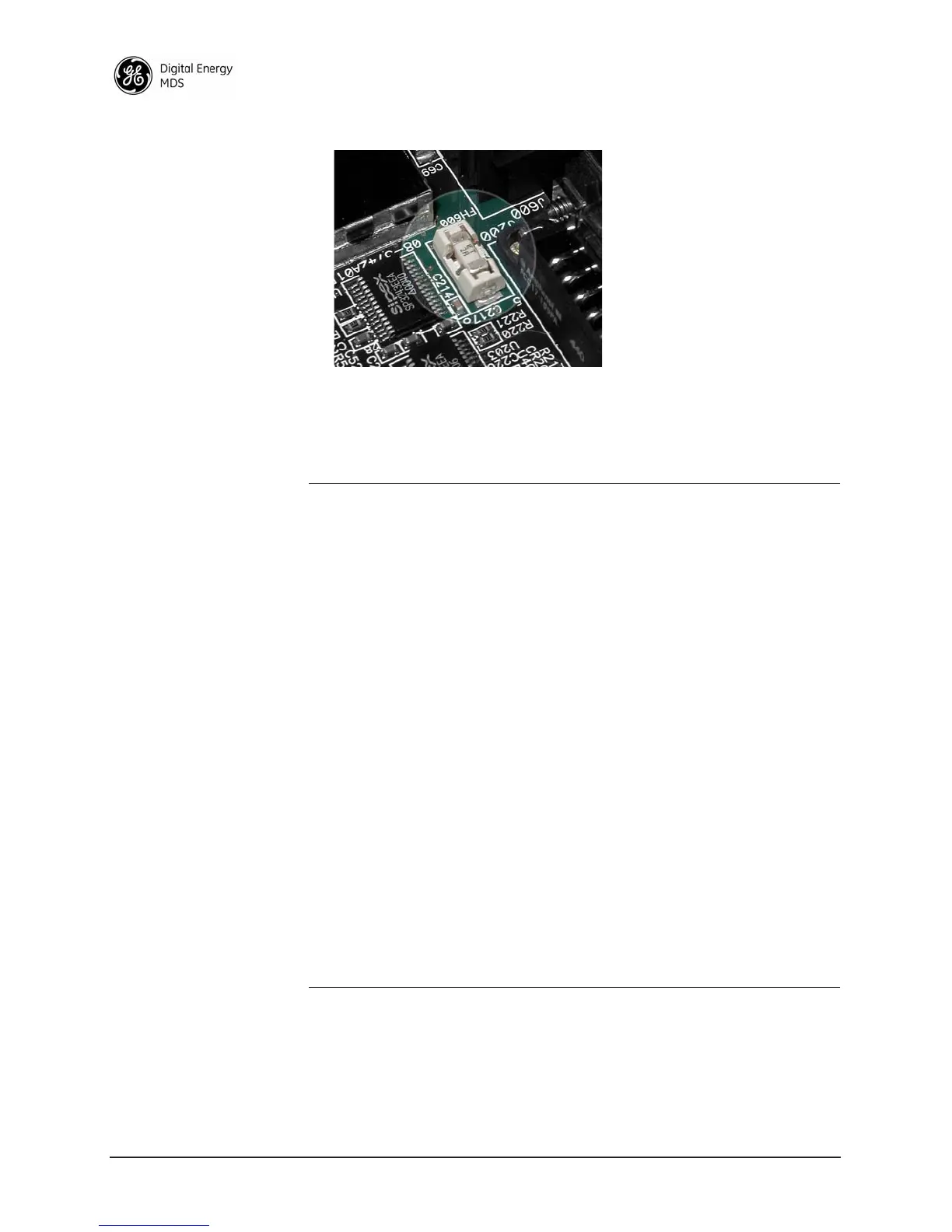

Internal Fuse Location
