3. Setting Up the DMS 2
DMS 2 Operating Manual Page 47
you should select a suitable probe and connect it to the
probe connectors on the top of the DMS 2 as shown in
Figure 3-2. Chapter 7 provides information on probe selec-
tion. Dual-element probe connectors are keyed to assure
correct connection of transmit and receive elements. Single-
element probes may be connected to either DMS 2 probe
port without affecting measurement results.
Follow this procedure to turn on the DMS 2 and make initial
adjustments to the thickness gauge settings. Because the
DMS 2 saves the control settings when it’s turned off and
restores them when it’s turned on, you won’t have to repeat
these adjustments unless a change is required.
Turn on the DMS 2 by pressing and briefly (for one-half
second) holding
. The TG Primary Menu should be
activated.
Press
at the same time to activate the TG Second-
ary Menu. This menu’s structure is shown in Figure 3-3.

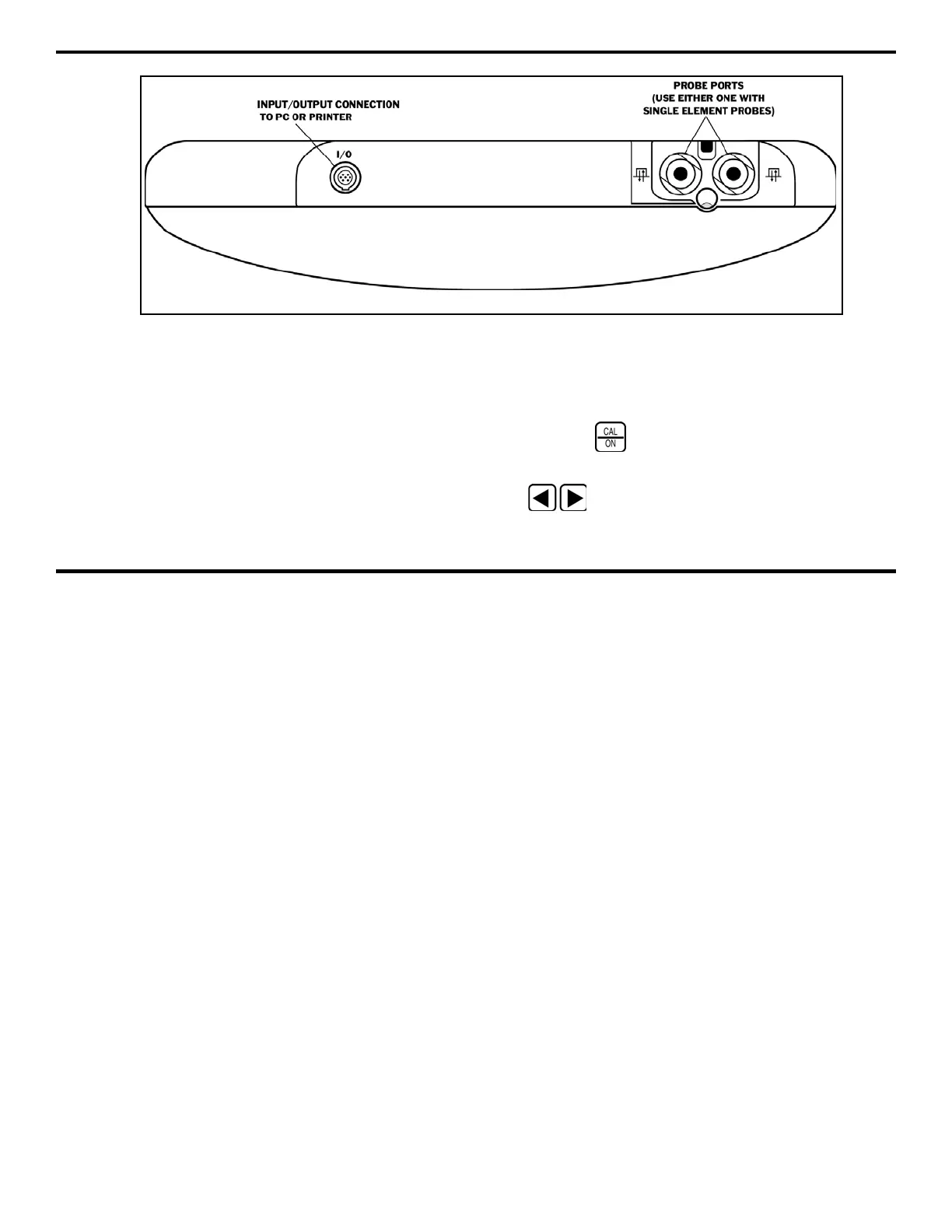

FIGURE 3-2—Insert probe cable connectors into the top of the DMS2 as shown here.
