3. Setting Up the DMS 2

DMS 2 Operating Manual Page 49

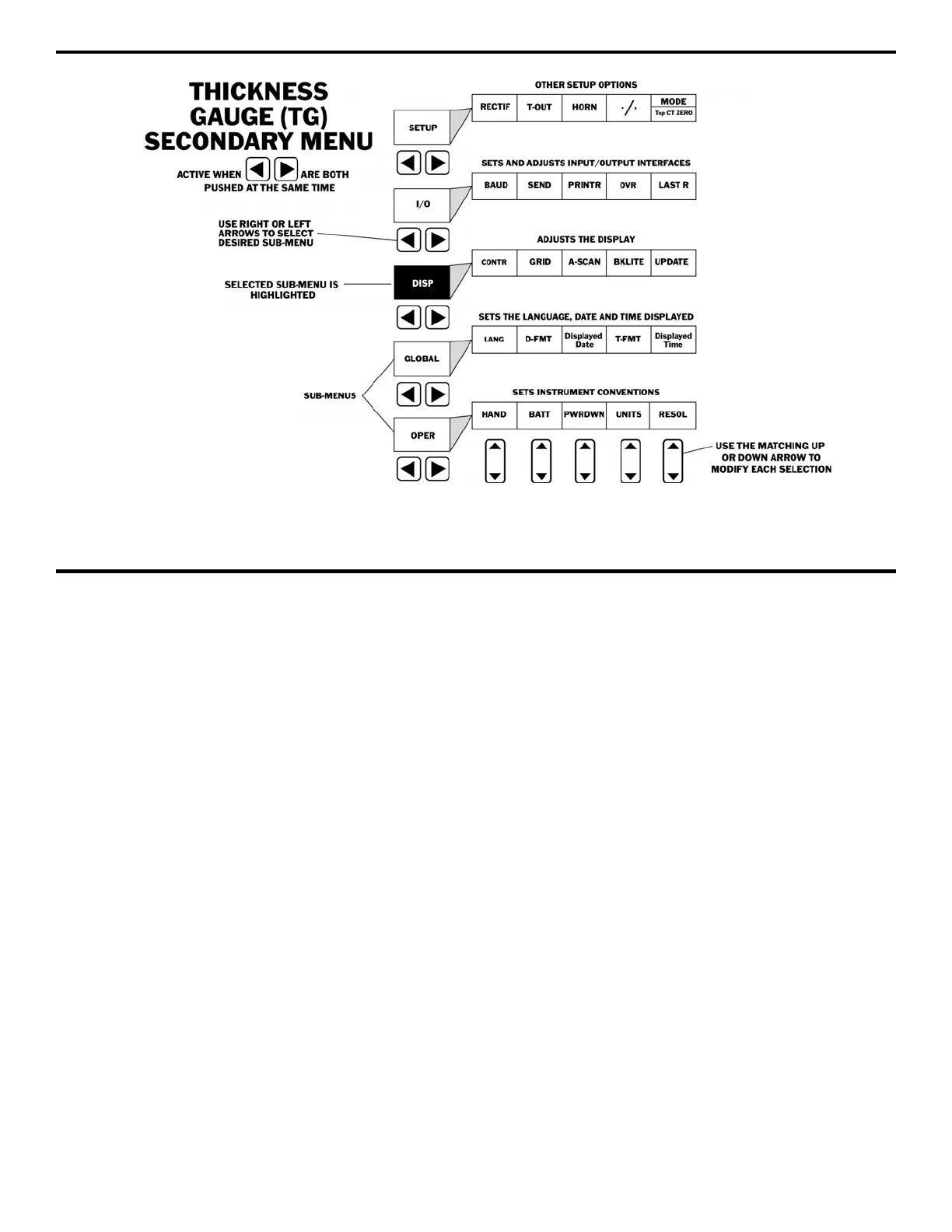

FIGURE 3-3—The TG Secondary Menu allows the user to adjust most of the instrument’s display and

operational features. This menu controls the less frequently adjusted features.
