3. Setting Up the DMS 2
DMS 2 Operating Manual
Page 79

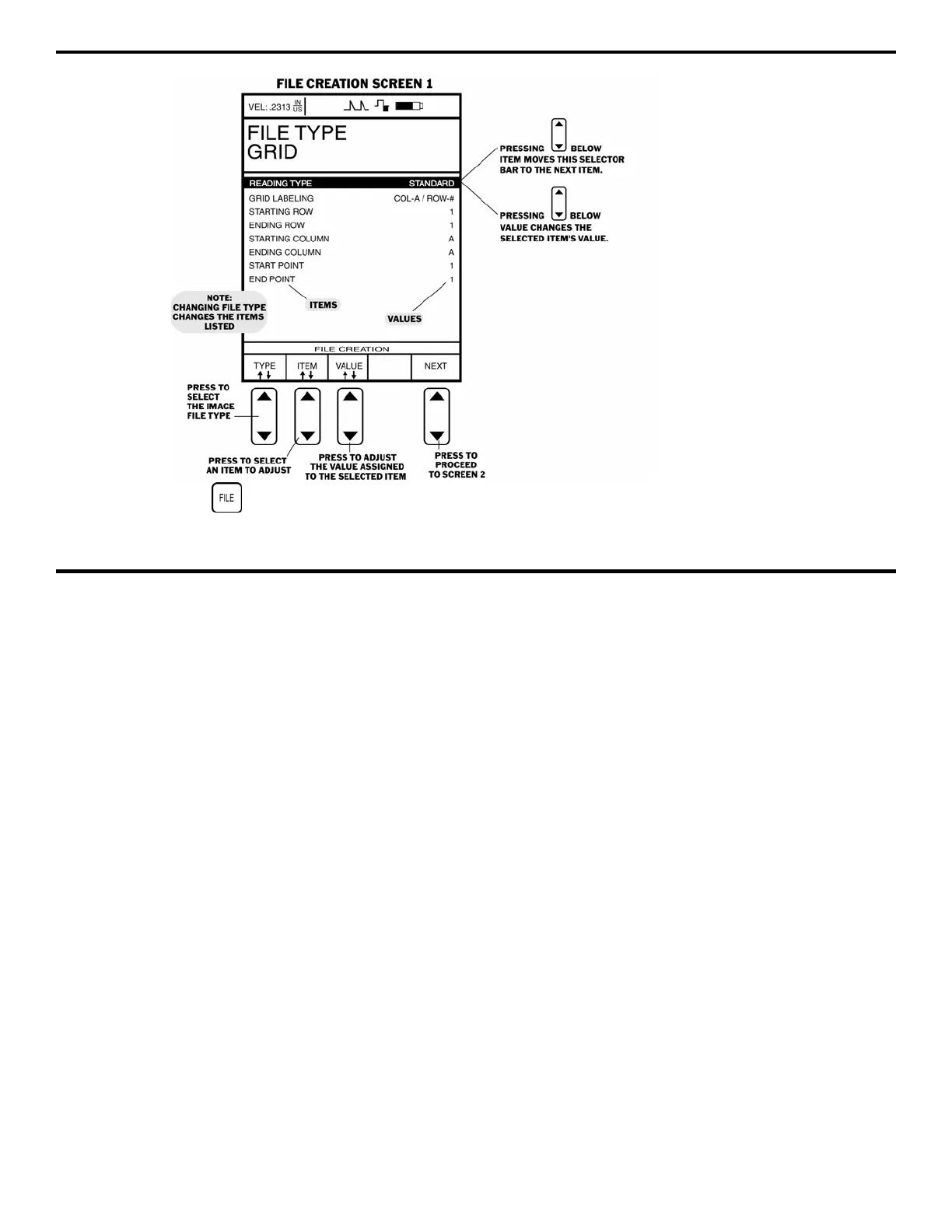

FIGURE 3-9—Pressing
opens the File Creation display. Here the user completes the first step in the file-creation process
by specifying the file type. In this case, the GRID file type has been indicated. Then, various file features called ITEMS are
defined.
