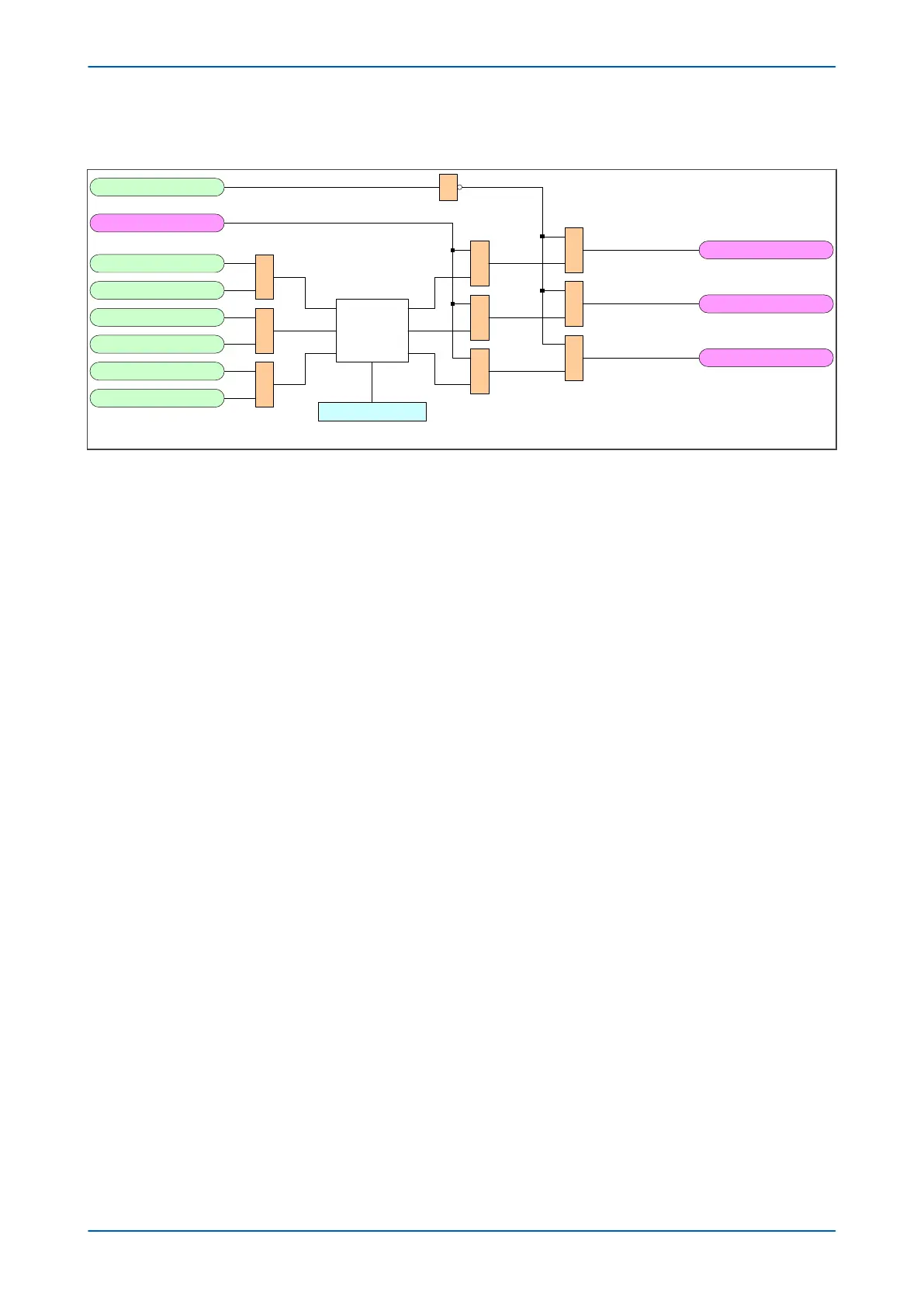

GE MiCOM P40 Agile - Figure 92: Priority Setting Enable Logic

6.3.4.1 PRIORITY SETTING ENABLE LOGIC
V02780
1983
Is/Comp Enabled
Second Fault
ZP AN Comparator
1323
ZQ AN Comparator
1971
1
ZP BN Comparator
1324
ZQ BN Comparator
1972
1
ZP CN Comparator
1325
ZQ CN Comparator
1973
1
Phase
Priority
Selector
Phase prio. 2pG
&
&
&
1 PrioTripEna AN
PrioTripEna BN
PrioTripEna CN
1
1
1
Figure 92: Priority setting enable logic
P543i/P545i Chapter 7 - Distance Protection
P54x1i-TM-EN-1 189
