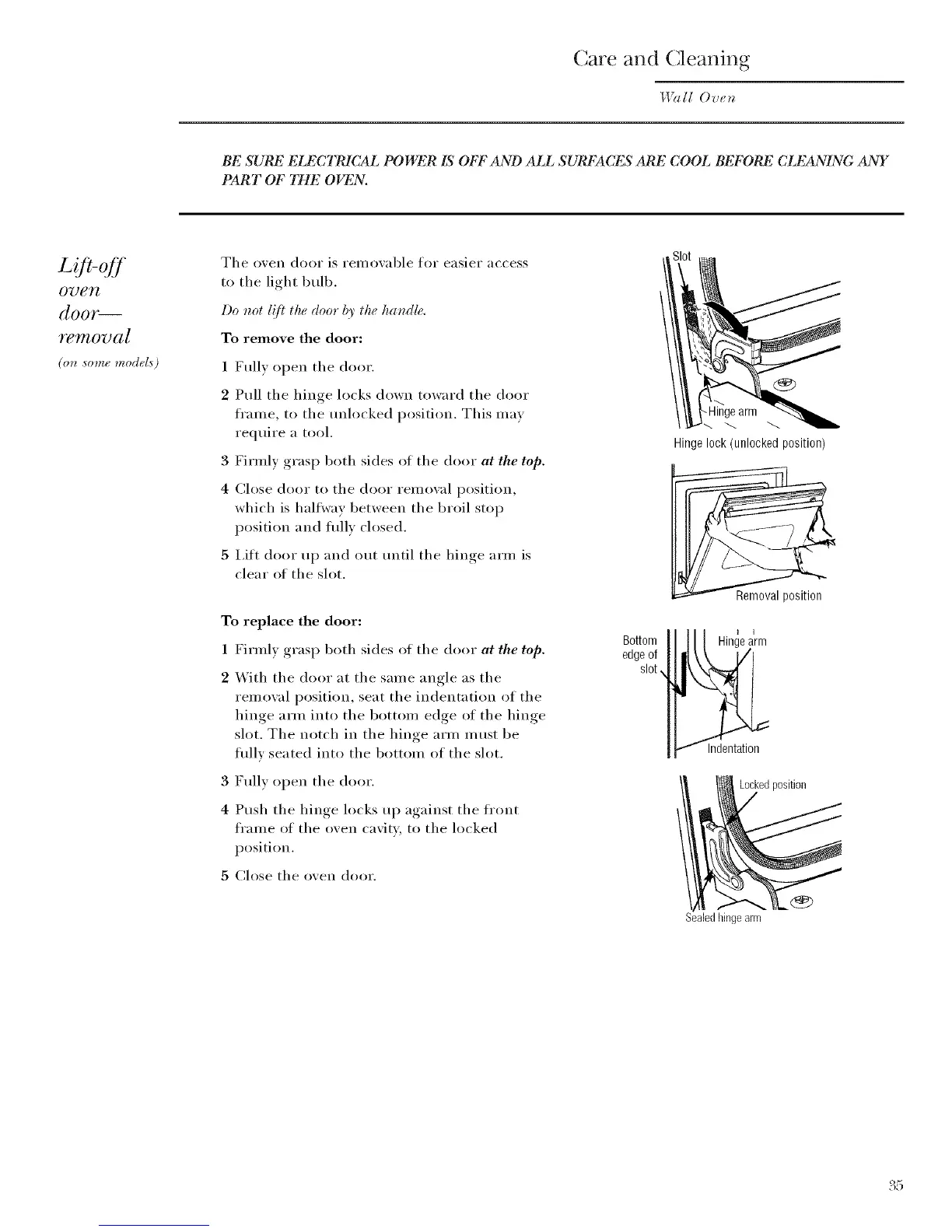

(;are and (;leaning
Wall Oven
BE SURE ELECTRJCAL POWER IS OFF AND ALL SUR_YACES ARE COOL BEFOR_ CLEANING ANY
PART OF THE OVEN.
Lo'i-o[f
O_7e7l
d00Y----
removal
(on some modeLQ
The oven door is reil/ovable for easier access
to the light bulb.
Do not l!fl the door by ll_e handl<
To remove the door:
1 Fully open the door.
2 Pull the hinge locks down toward the door
fl'ame, to the tmlocked position. This may
require a tool.
3 Firmly grasp both sides of the door at the top.
4 Close door to the door remowd position,
which is hallway between the broil stop
position and flfllv closed.
5 I,iti door up and out tmtil the hinge arm is
clear of the slot.
To replace the door:
1 Firmly grasp both sides of the door at the top.
2 With the door at the same angle as the
removal position, seat the indentation of the
hinge arm into the bottom edge of the hinge
slot. The notch in the hinge arm must be
fifllv seated into the bottom of the slot.
3 Fully open the dora:
4 Push the hinge locks up against the fl'ont
fl'ame of the oven cavity; to the locked
position.
5 Close the oven door.
Bottom
edgeof
slot
d_
Hingelock(unlockedposition)
earm
Indentation
Sealedhingearm
• .9
