7–28 PQM POWER QUALITY METER – INSTRUCTION MANUAL
MODBUS MEMORY MAP CHAPTER 7: MODBUS COMMUNICATIONS
POWER
continued
031A
031B
Phase A Real Power - Minimum (high)
Phase A Real Power - Minimum (low)
--- --- 0.01 x kW F4 N/A
031C
031D
Phase A Reactive Power - Minimum (high)
Phase A Reactive Power - Minimum (low)
--- ---
0.01 x
kvar
F4 N/A
031E
031F
Phase A Apparent Power - Minimum (high)
Phase A Apparent Power - Minimum (low)
--- --- 0.01 x kVA F3 N/A
0320 Phase A Power Factor - Minimum --- --- 0.01 xPF F2 N/A
0321
0322
Phase A Real Power - Maximum (high)
Phase A Real Power - Maximum (low)
--- --- 0.01 x kW F4 N/A
0323
0324
Phase A Reactive Power - Maximum (high)
Phase A Reactive Power - Maximum (low)
--- ---
0.01 x
kvar
F4 N/A
0325
0326
Phase A Apparent Power - Maximum (high)
Phase A Apparent Power - Maximum (low)
--- --- 0.01 x kVA F3 N/A
0327 Phase A Power Factor - Maximum --- --- 0.01 x PF F2 N/A
0328
0329
Phase B Real Power - Minimum (high)
Phase B Real Power - Minimum (low)
--- --- 0.01 x kW F4 N/A
032A
032B
Phase B Reactive Power - Minimum (high)
Phase B Reactive Power - Minimum (low)
--- ---
0.01 x
kvar
F4 N/A
032C
032D
Phase B Apparent Power - Minimum (high)
Phase B Apparent Power - Minimum (low)
--- --- 0.01 x kVA F3 N/A
032E Phase B Power Factor - Minimum --- --- 0.01 x PF F2 N/A
032F
0330
Phase B Real Power - Maximum (high)
Phase B Real Power - Maximum (low)
--- --- 0.01 x kW F4 N/A
0331
0332
Phase B Reactive Power - Maximum (high)
Phase B Reactive Power - Maximum (low)
--- ---
0.01 x
kvar
F4 N/A
0333
0334
Phase B Apparent Power - Maximum (high)
Phase B Apparent Power - Maximum (low)
--- --- 0.01 x kVA F3 N/A
0335 Phase B Power Factor - Maximum --- --- 0.01 x PF F2 N/A
0336
0337
Phase C Real Power - Minimum (high)
Phase C Real Power - Minimum (low)
--- --- 0.01 x kW F4 N/A
0338
0339
Phase C Reactive Power - Minimum (high)
Phase C Reactive Power - Minimum (low)
--- ---
0.01 x
kvar
F4 N/A
033A
033B
Phase C Apparent Power - Minimum (high)
Phase C Apparent Power - Minimum (low)
--- --- 0.01 x kVA F3 N/A
033C Phase C Power Factor - Minimum --- --- 0.01 x PF F2 N/A
033D
033E
Phase C Real Power - Maximum (high)
Phase C Real Power - Maximum (low)
--- --- 0.01 x kW F4 N/A
033F
0340
Phase C Reactive Power - Maximum (high)
Phase C Reactive Power - Maximum (low)
--- ---
0.01 x
kvar
F4 N/A
0341
0342
Phase C Apparent Power - Maximum (high)
Phase C Apparent Power - Maximum (low)
--- --- 0.01 x kVA F3 N/A
0343 Phase C Power Factor - Maximum --- --- 0.01 x PF F2 N/A
0344 Time - Hour/Minutes of Real Power Min --- --- --- F22 N/A
0345 Time - Seconds of Real Power Min --- --- --- F23 N/A
0346 Date - Month/Day of Real Power Min --- --- --- F24 N/A
0347 Date - Year of Real Power Min --- --- --- F25 N/A

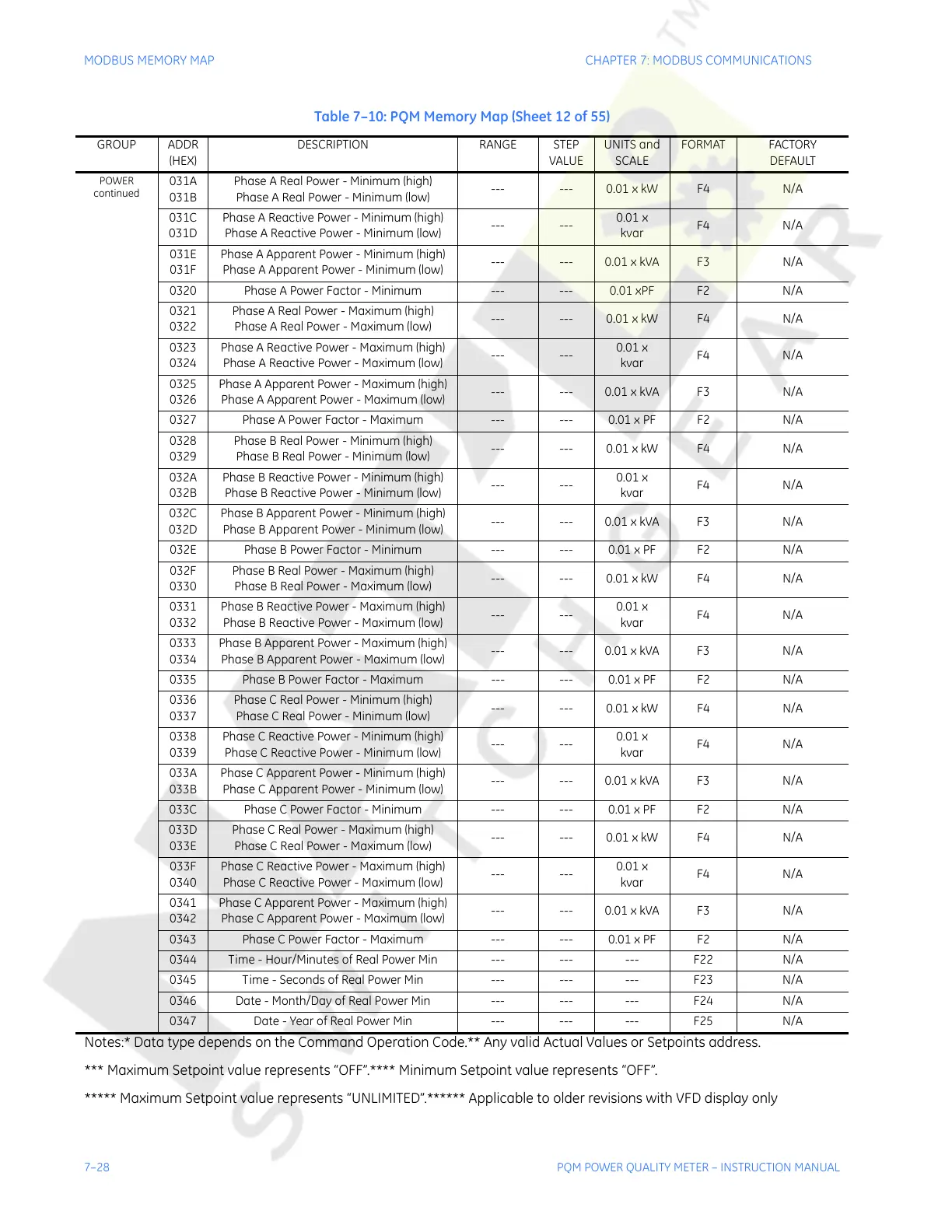

Table 7–10: PQM Memory Map (Sheet 12 of 55)
GROUP ADDR
(HEX)
DESCRIPTION RANGE STEP
VALUE
UNITS and
SCALE
FORMAT FACTORY
DEFAULT
Notes:* Data type depends on the Command Operation Code.** Any valid Actual Values or Setpoints address.
*** Maximum Setpoint value represents “OFF”.**** Minimum Setpoint value represents “OFF”.
***** Maximum Setpoint value represents “UNLIMITED”.****** Applicable to older revisions with VFD display only
