7–88 PQM POWER QUALITY METER – INSTRUCTION MANUAL
MODBUS MEMORY MAP CHAPTER 7: MODBUS COMMUNICATIONS
F110
con’t
Not Used 0004
Not Used 0008
Not Used 0010
Not Used 0020
Not Used 0040
Not Used 0080
Not Used 0100
Not Used 0200
Not Used 0400
Not Used 0800
Not Used 1000
Not Used 2000
Not Used 4000
Not Used 8000
F111 EVENT RECORD SWITCHES AND RELAY STATUS FFFF
Alarm Relay 0001
Auxiliary Relay 1 0002
Auxiliary Relay 2 0004
Auxiliary Relay 3 0008
Not Used 0010
Not Used 0020
Not Used 0040
Not Used 0080
Switch A 0100
Switch B 0200
Switch C 0400
Switch D 0800
Not Used 1000
Not Used 2000
Not Used 4000
Not Used 8000

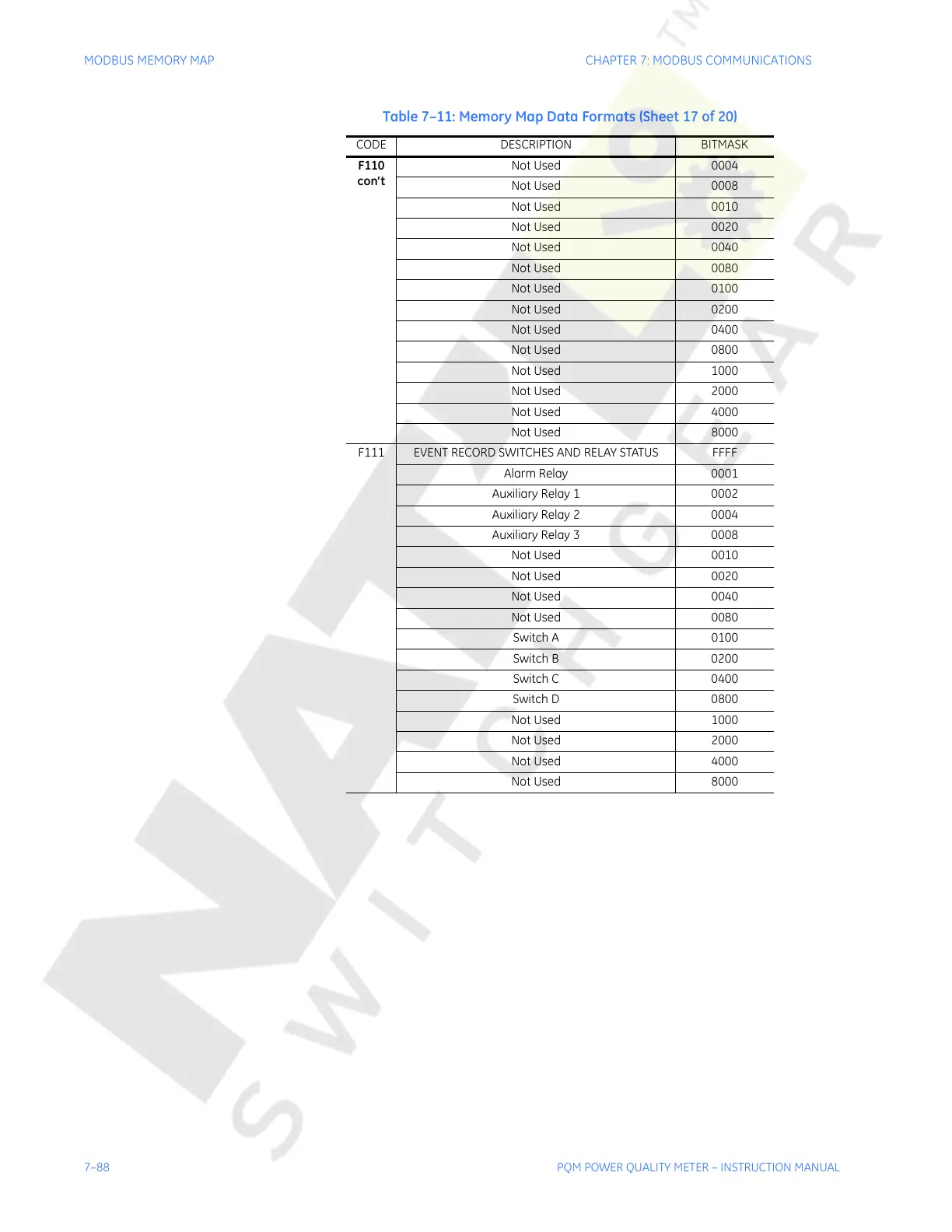

Table 7–11: Memory Map Data Formats (Sheet 17 of 20)
CODE DESCRIPTION BITMASK
