2 Installation
K0443 Revision A 2 - 8 [EN] English
2.5 Rack-mount option (Ref: Figure 2-6)
General
There must be enough space at the rear of the instrument for all the cables and pipes. The
length of the cables and pipes must allow for the removal and fitment of the instrument. The
cooling air of the instrument must not be obstructed. Allow a free flow of air through the
equipment rack and around the instrument, especially at high ambient temperatures.

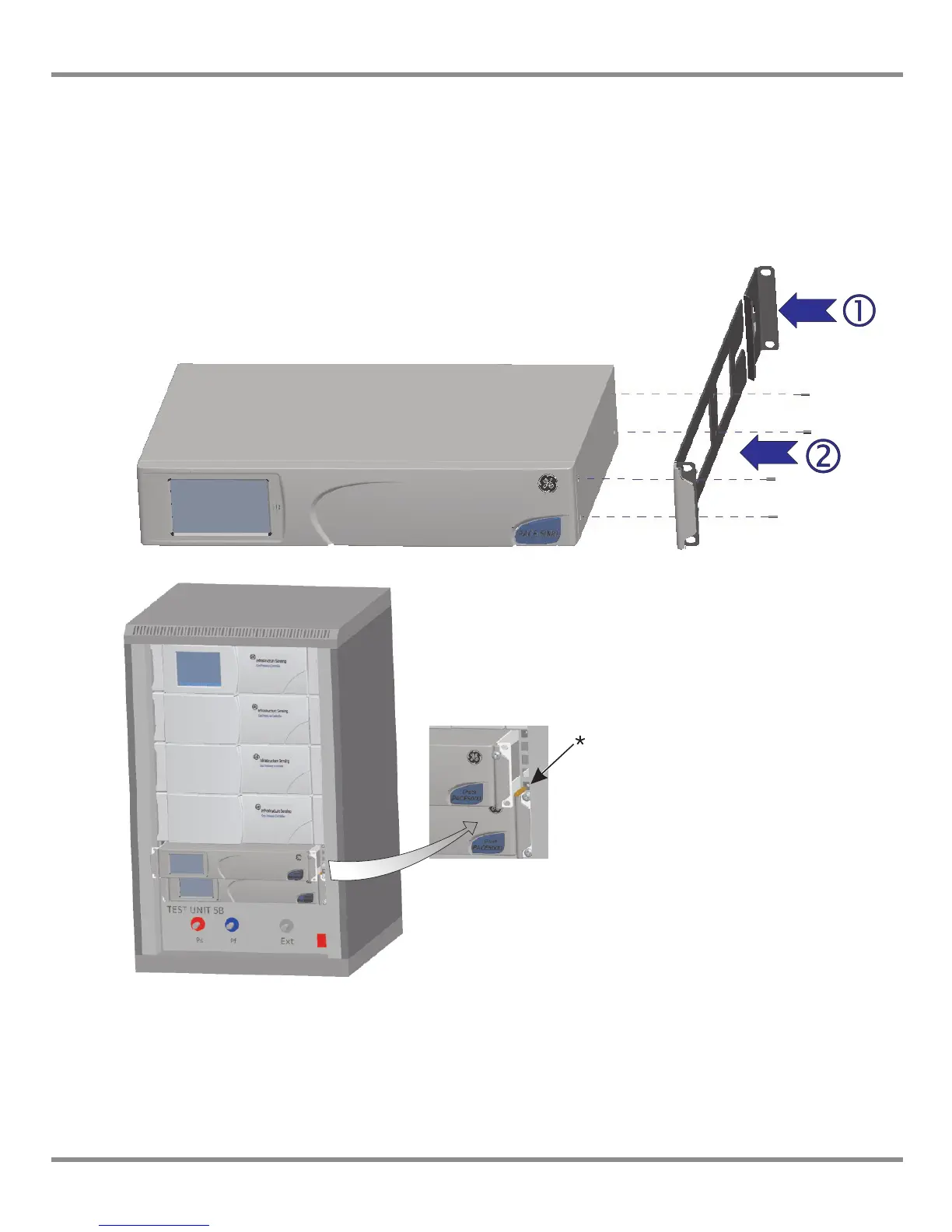

Figure 2-6 Rack-mounting
