GE PACE5000 User Manual

PACE Pressure Controller User Manual
[EN] English 6 - 35 K0443 Revision A
Units
The units can be either the aeronautical or pressure units. The units can be changed any
time between pressure and pressure converted to aeronautical units. The display shows the
output pressure converted to Altitude, CAS or Mach using BS 2G 199:1984* conversions and
assuming standard atmospheric conditions.
*Based on tables from ICAO Standard Atmosphere 1964.
Reference Pressure
Select the required reference pressure, this can be either the barometric pressure (from the
instrument’s internal barometric sensor), or any numeric value (e.g.) 1013.25 mbar.
Go to ground
Returns the instrument and any UUT, connected to it, safely to ground pressure at a
controlled rate.

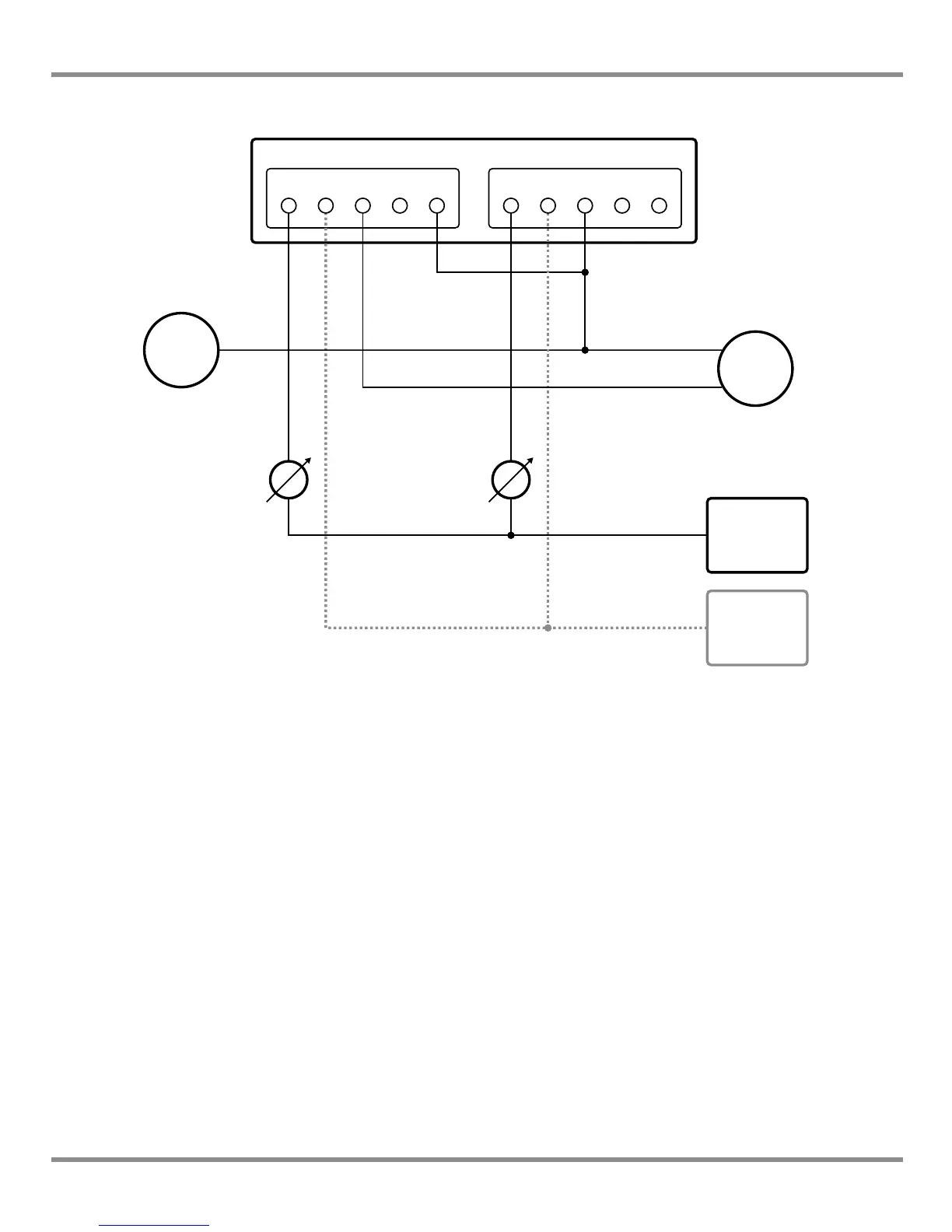

SUPPLY
OUTLET VENT REF
+-
Module 2
SUPPLY
OUTLET VENT REF
+-
Module 1
Pressure
source
Pressure
regulator
Pressure
regulator
Rear view of
PACE
instrument
Vacuum
source
Altimeter
ASI/Mach
Static Static
Pitot
Pitot Static (Altitude)
