GE PT7800DH2BB - Page 37

– 37 –

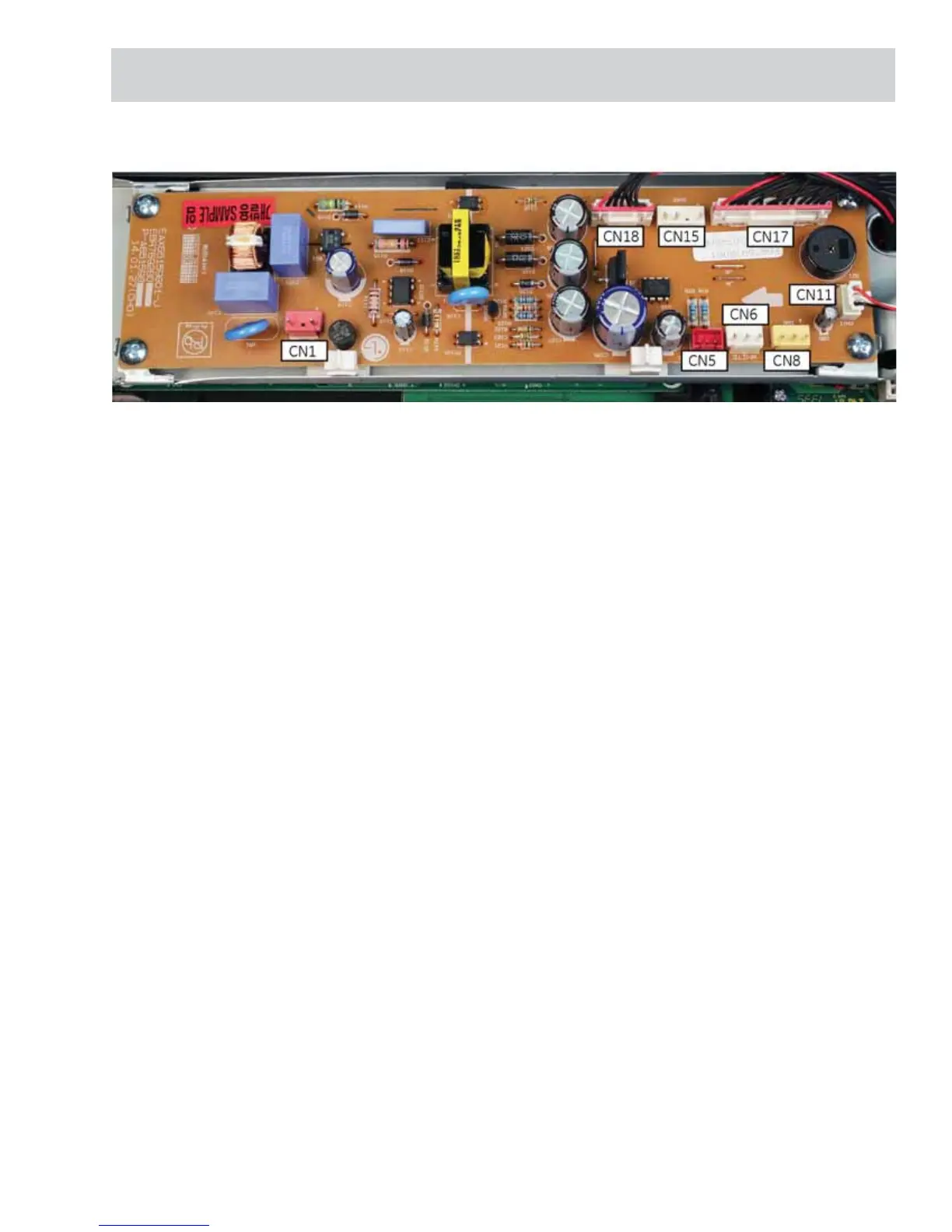

Power Board
CN1: AC Input
CN5: Humidity sensor
CN6: Door Secondary Sensing Switch and Damper Door Sensing Switch
CN8: Thermistor
CN11: Relay Board
CN15: Lower Oven Communication Signal
CN17: Control Board
CN18: Control Board
Control Boards and Panel Connections continued
(Continued next page)
