– 38 –

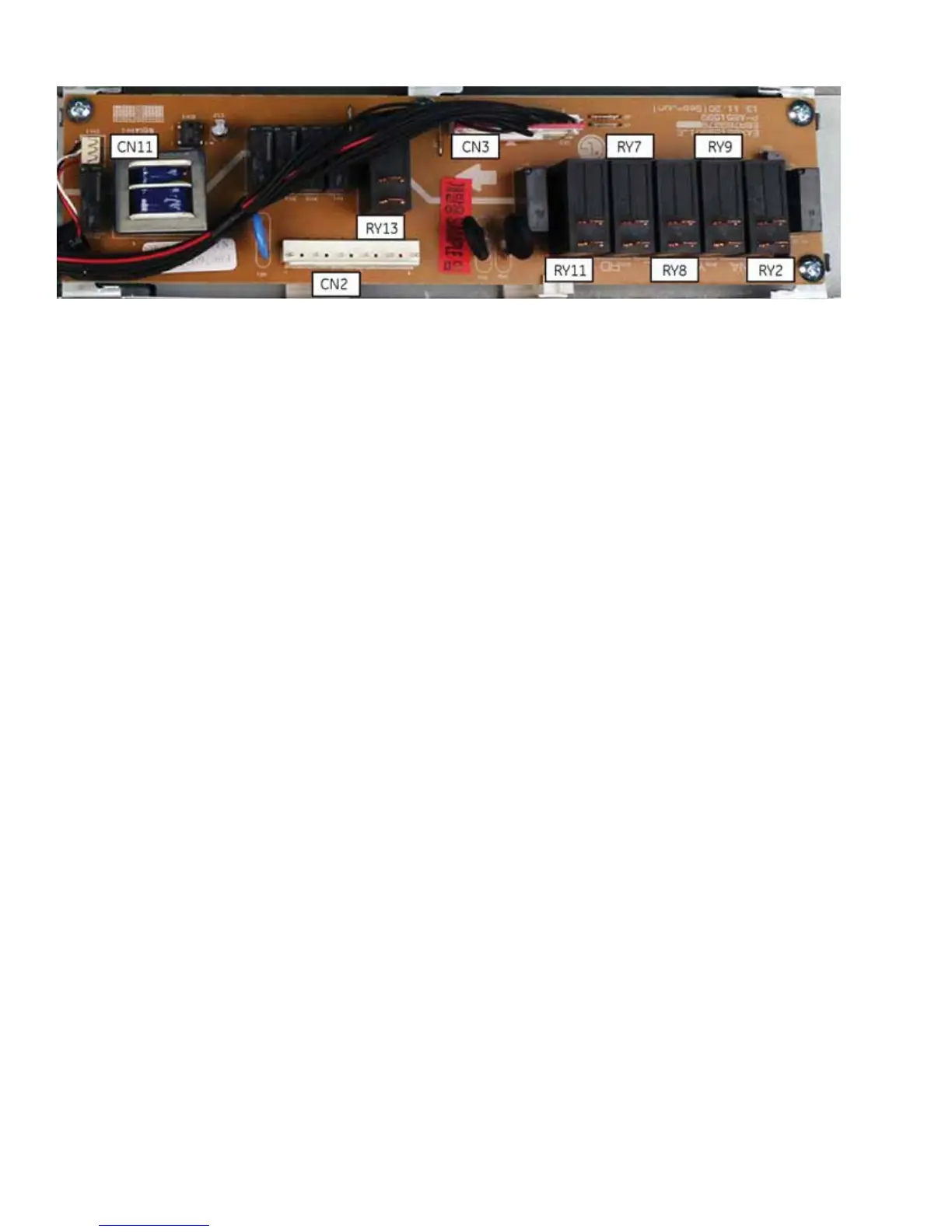

Relay Board
CN2: Connection to Oven lamp, Blower motor, Convection motor, Damper motor and Turntable Motor
CN3: Control Board
CN11: Power Supply Board
RY2: High Voltage Transformer (NA)*
RY7: Convection Heater (RD)*
RY8: Upper Heater (Ceramic) (BL)*
RY9: Lower Heater (YL)*
RY11: Upper Heater (Halogen) (WH)*
RY13: Double Line Break (BK)*
( )* Two letters indicate the color of the connectors going to the relays
(Continued next page)
